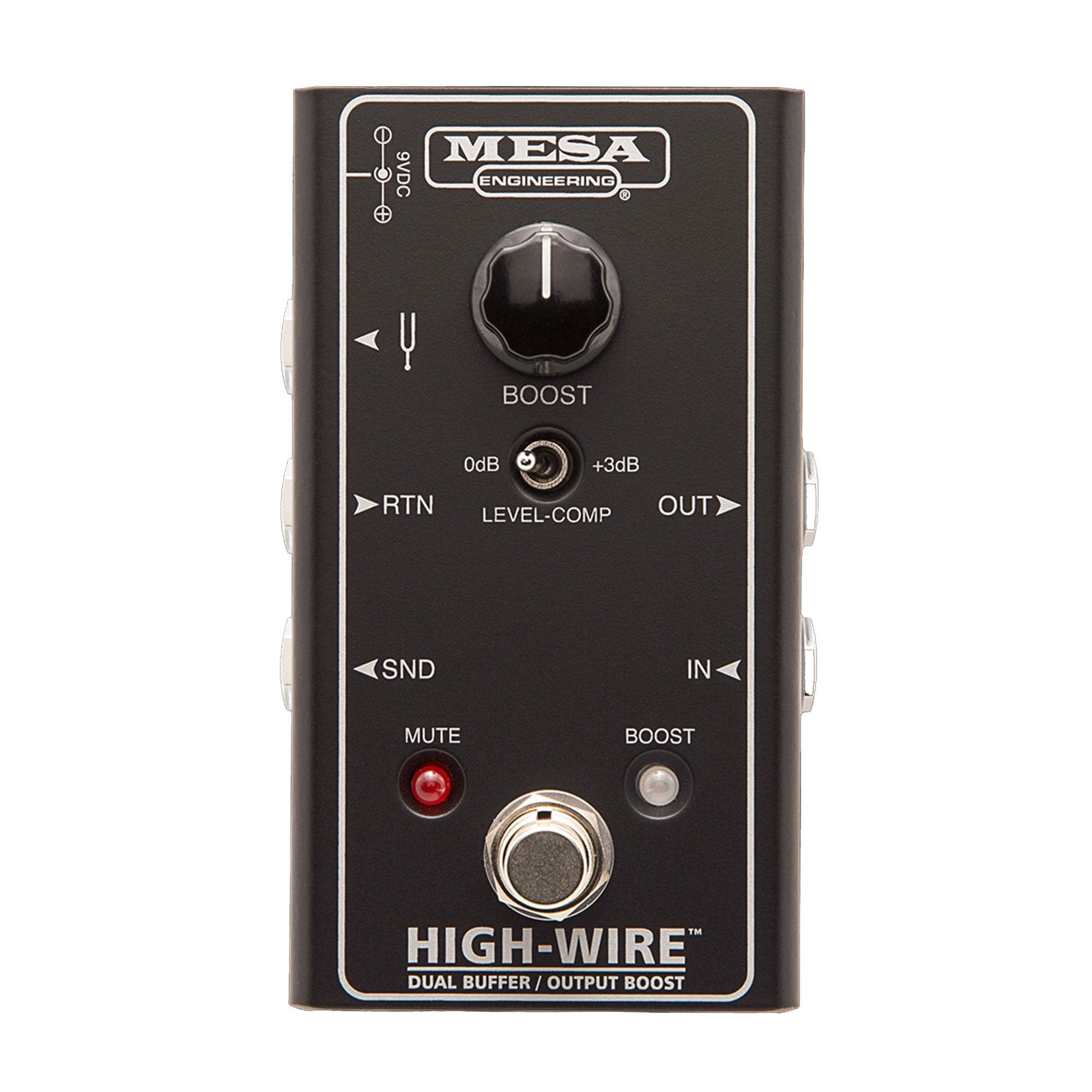

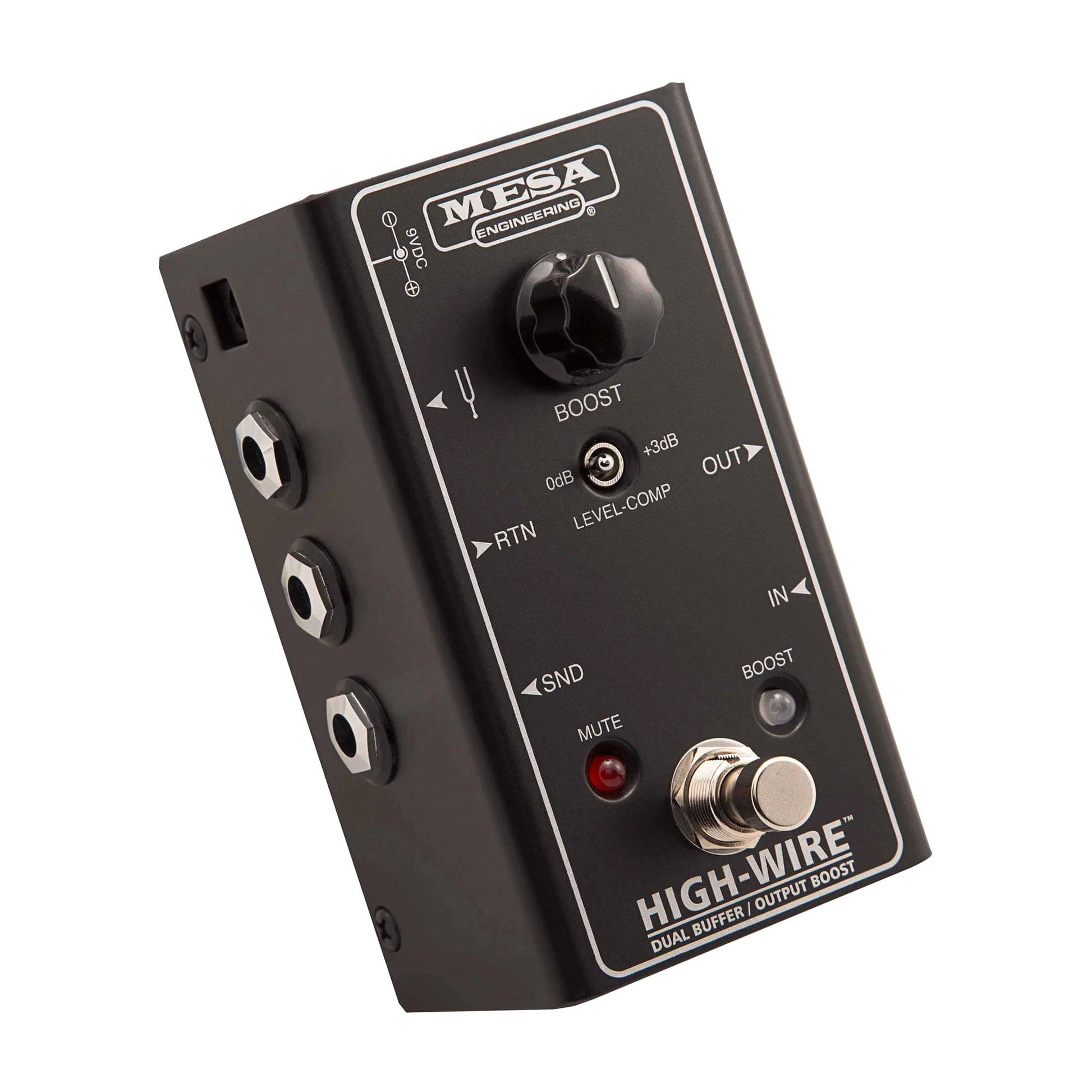

Mesa/Boogie High-Wire Dual Buffer & Boost

The HIGH-WIRE™ is our Dual Buffer and Line Driver in a one-stop solution that addresses both Input and Output challenges in the same space saving chassis. Between Instrument and pedals, it provides a stable, consistent load for your guitar’s pickups, ensuring your signal arrives at the first pedal intact and full of Tone. From Pedal Board to the amplifier, it not only buffers the signal, ensuring optimum impedance loading and performance, but also allows for increased signal levels for extra long cable runs via the built-in Line Driver (Footswitchable Boost) feature. As with the Stowaway, all buffer circuitry is 100% discrete Class-A. The HIGH-WIRE also incorporates a fixed +3dB BOOST on a top mounted mini-toggle. The Footswitch is Dual Function and allows both the variable BOOST when hit once and a MUTE when held for a second. The HIGH-WIRE is the ultimate all-in-one Pedal Board signal loss remedy and will remove your tightrope Tone walk once and for all.



Features:



Made in Petaluma, California with the World’s Finest Materials

100% Discrete Class-A STOWAWAY™ Input Buffer Circuit

Provides the tone & feel of plugging directly into a high-quality tube amp

RFI Filtering minimizes radio-frequency interference and noise

Segregated Send & Return Effects Loop provides guitar AND amp with a resolute load and source for the most consistent tone and feel possible

Integrated CLEARLINK™ Output Line Driver with +3db Level Comp Switch – Capable of driving long ¼” cable runs directly to your amp’s input

Tuner Output – Provides an “always on” buffered output separate from the main signal chain to feed tuner

Dual Function Boost/Mute (Tune) Footswitch – Press on/off to activate Boost – Press and hold to activate Mute/Tune

Variable, Footswitchable Boost Control from Unity up to +22db of Output Boost

Boost On/Off Status LED

Mute (Tune) On/Off Status LED

9-12VDC External Power Jack Input (power supply not included)

SPECIFICATIONS:



Input Impedance: 1M Ohm

Output Impedance: 150 Ohm

Input Buffer Design: Discrete Class-A (MESA Stowaway™)

Output Buffer Design: High-Speed, Low Noise Op-Amp (MESA Clearlink™)

Nominal Operating Voltage: 9VDC

Maximum Operating Voltage: 12VDC

Typical Current Draw: 55mA @ 9VDC

DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9-12VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug

Weight: 0.743 lbs (337g)

Dimensions (W x D x H): 2.48 x 4.48 x 2.06 inch (63 x 114 x 52 mm)
