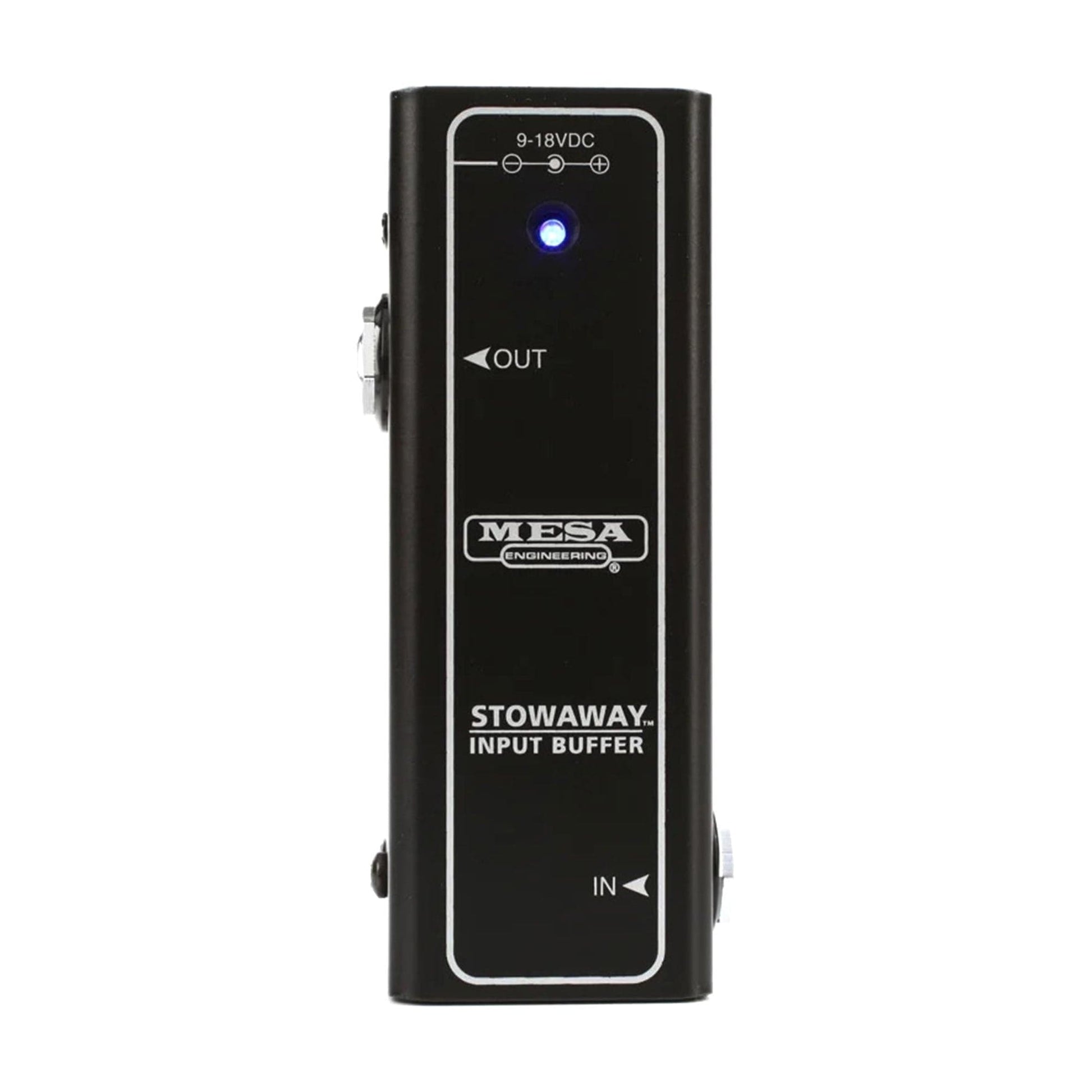

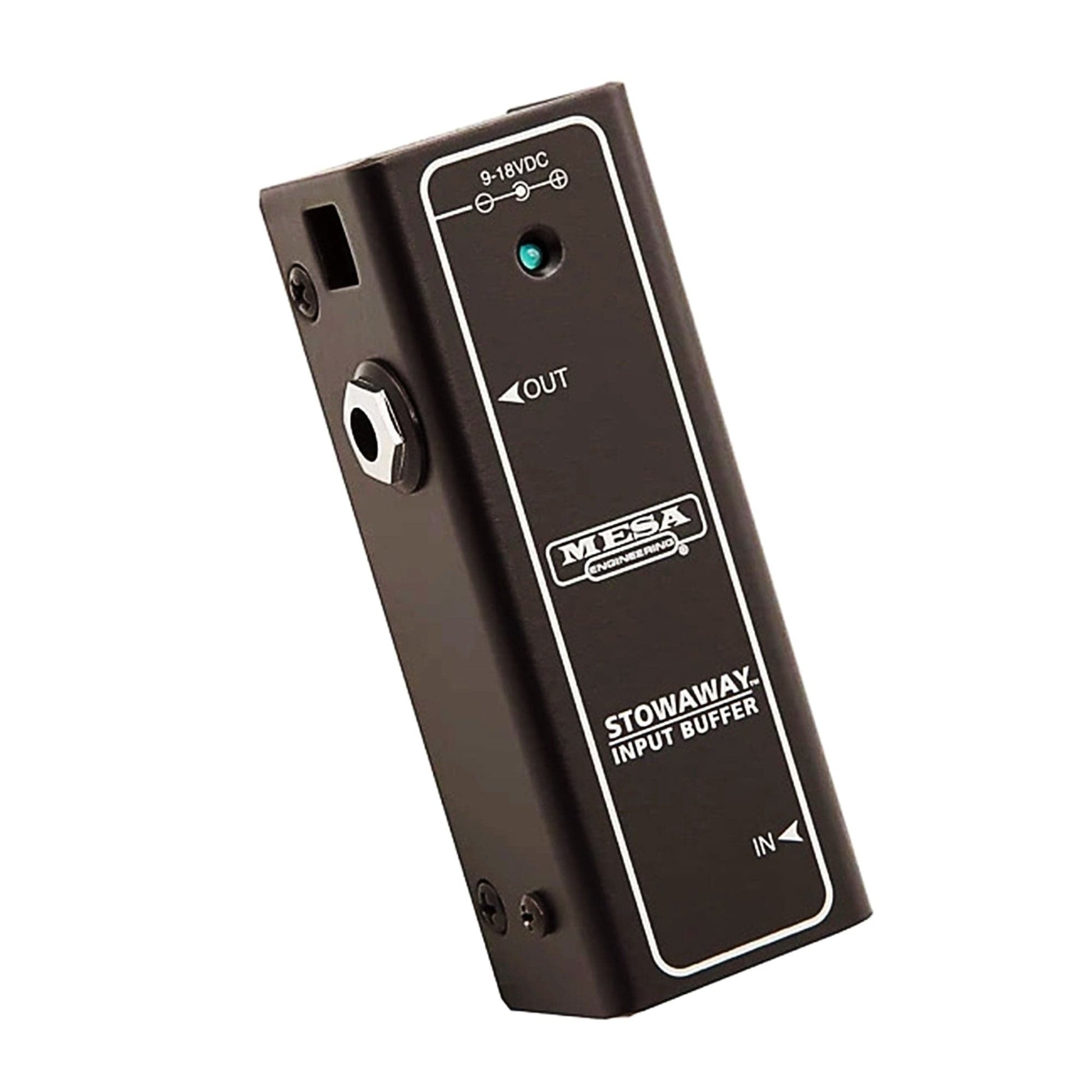

Mesa/Boogie Stowaway Input Buffer

The Stowaway is our compact 100% discrete Class-A Input Buffer solution designed to remedy a whole array of Input challenges caused by a variety of issues. From impedance loading and mismatching, to changes in a pickup’s character and response as a result of varying effect pedals’ input impedance and interconnecting cables’ capacitance, the Stowaway provides the stable, consistent load your instrument needs to sound as intended. While the Stowaway's footprint is small,  allowing it to be mounted on the most crowded of pedal boards, its Feature Set is professional and comprehensive. If your signal does any significant traveling, bring along a Stowaway to guard your Tone.

Features:

• Made in Petaluma, California with the World’s Finest Materials
• 100% Discrete Class-A Circuit
• Provides the tone & feel of plugging directly into a high-quality tube amp
• RFI Filtering minimizes radio-frequency interference and noise
• Provides guitar with a resolute load which segregates it from the many variables on a pedalboard and the long cable run to a back-line amplifier, for consistent tone and feel
• On/Off Status LED
• 9-18VDC External Power Jack Input (power supply not included)

Specifications:

• Input Impedance: 1M Ohm
• Output Impedance: 150 Ohm
• Buffer Design: Discrete Class-A
• Nominal Operating Voltage: 9-18VDC
• Maximum Operating Voltage: 20VDC
• Typical Current Draw: 10mA @ 9VDC
• DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the
• External Power Supply MUST be 9-18VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
• Weight: .267 lbs (121.1 g)
• Dimensions (W x D x H): 1.42 x 3.98 x 1.24 inch (36 x 101 x 32 mm)
