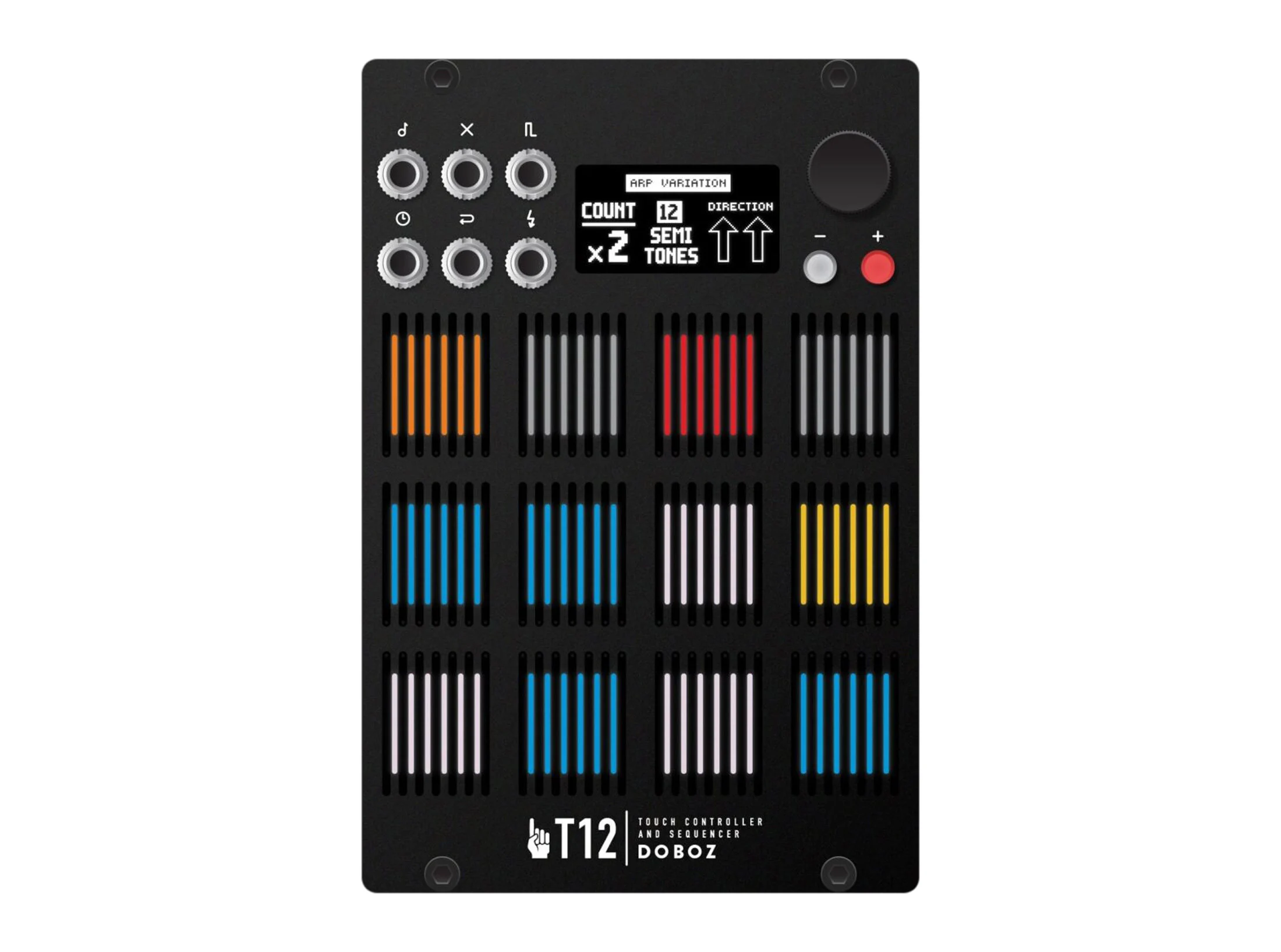

Doboz T12 3U Eurorack Touch Controller + Sequencer

Doboz T12 3U

T12 3U from Doboz brings intuitive and flexible touch control to your Eurorack system, giving you twelve capacitive touch plates which can be used for both live and programmable performance. A refined and reimagined iteration on Doboz's powerful Touch Sensing Note Memory controller, T12 is an advanced source of control that readily maps to your personalized needs for performance. Create complex melodies and rhythmic phrases in multiple operating modes, providing dynamic real time control, flexible sequencing, or creative arpeggiation to enhance every patch.



While the grid of twelve capacitive touch plates form the business end of T12's dynamic performance capabilities, the addition of a clear screen display allows for nuanced editing and visual feedback to sculpt musical control signals with precision. Choose from a growing list of unique operators including simple controllers and sequencers alongside complex shift register and logic implementations, then dial in parameters with the intuitive encoder control. Note modifiers provide internal modulation to spice up musical phrases in real time. Clock and reset inputs keep T12 grooving along with the rest of your patch, while a CV input allows for continuously variable transformations of operator parameters. Ideal for complex control over a single voice, the gate and CV outputs handle rhythm and note information while an auxiliary CV output allows for sending random CV, pressure control, or even built-in envelopes. Reach out and touch your patches with the T12 3U from Doboz.



T12 3U Features

Versatile touch controller, sequencer, and arpeggio generator for Eurorack systems

12x capacitive touch plates provide nuanced control

Multiple operators define module behavior

Operators include touch control, simple and complex sequencing, arpeggiators, shift registers, and more

Internally process note CV to affect pitch and articulation of your controller or sequencer

Clock and reset inputs

CV input assignable to internal parameters

Note CV and Gate outputs

Assignable auxiliary CV output

Store presets to recall your favorite set-ups

OLED display for precise parameter editing and configuration

Eurorack module

Width: 17hp

Depth: 25mm

Current draw: 115mA @ +12V, 12mA @ -12V, 0mA @ +5V
