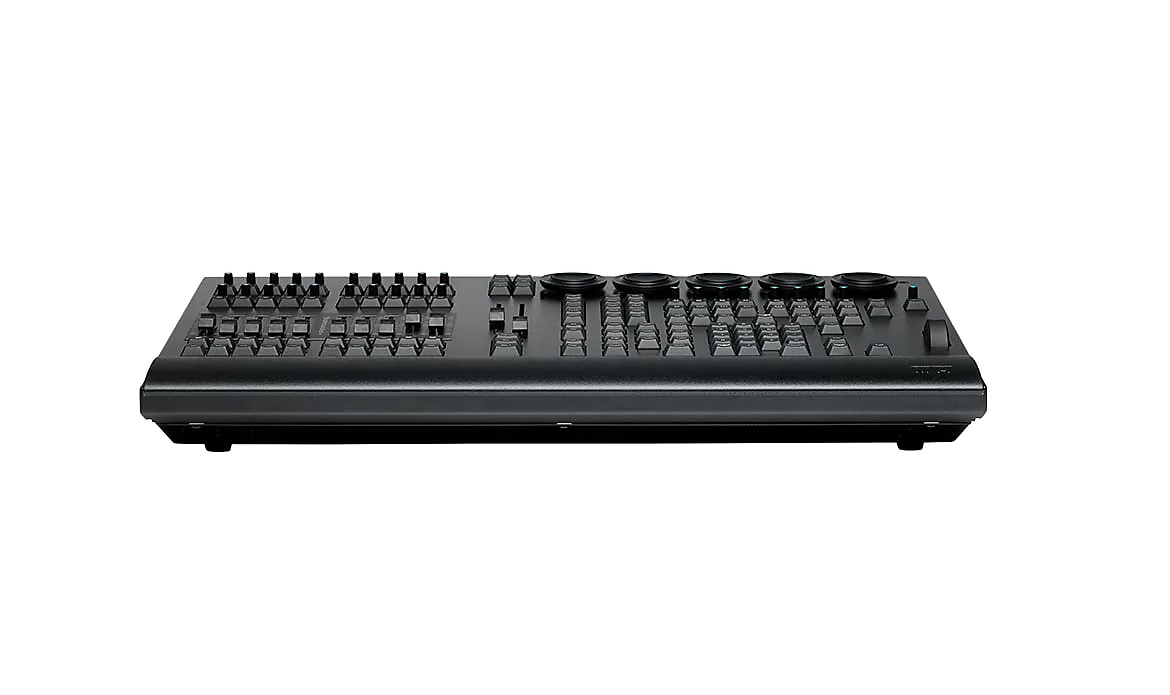

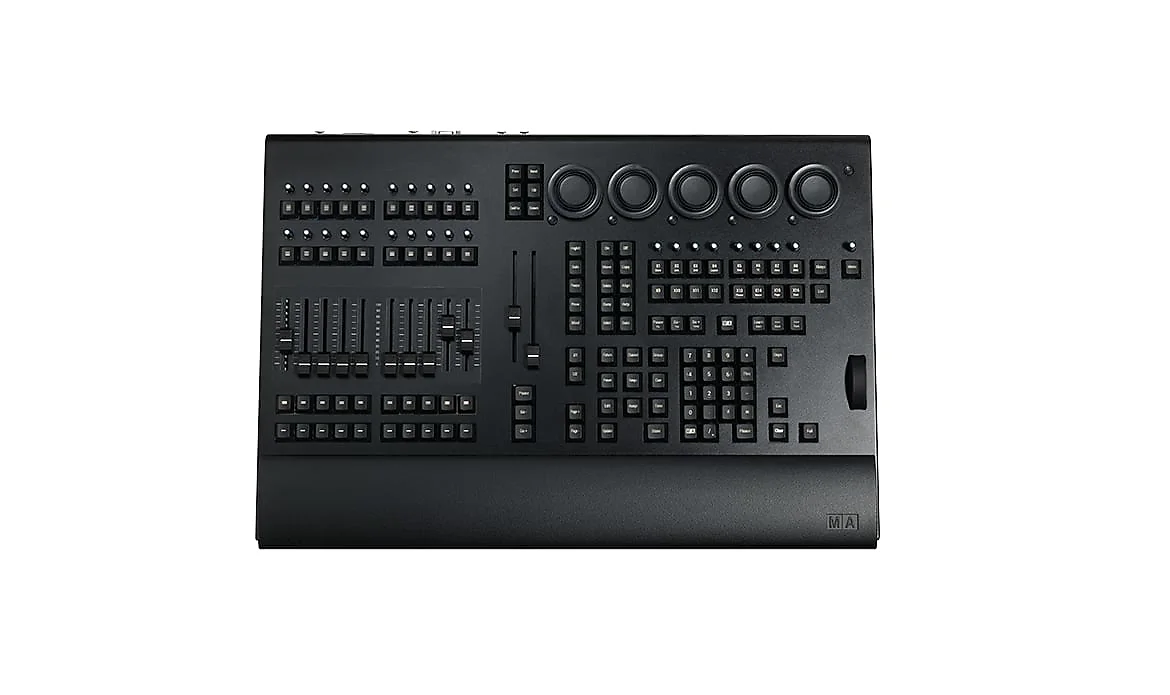

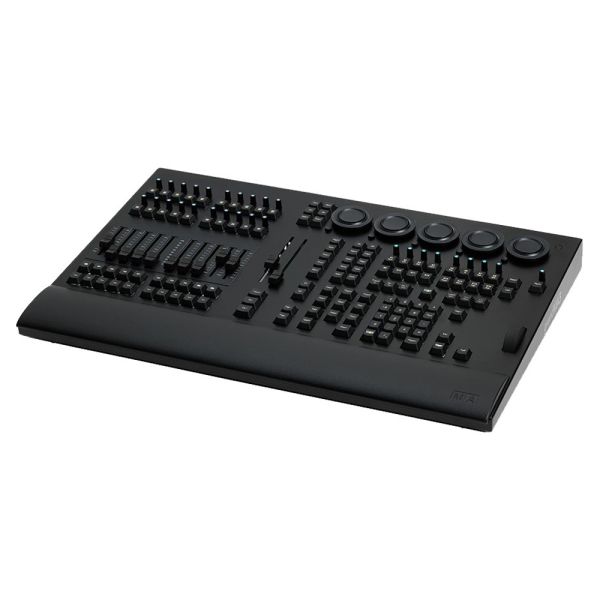

MA Lighting MA4010519 MA grandMA3 onPC command wing XT

The grandMA3 onPC command wing XT console brings the full-size grandMA3 experience to small and mid-size shows on the road, in theaters, and in clubs. Sharing the same footprint as the grandMA3 onPC command wing, the XT incorporates a genuine MA motherboard running Windows with onPC software already installed for you.

The grandMA3 onPC command wing XT provides a powerful and elegant solution that's ready to use out-of-the-box. With 4,096 parameters ready to use on the spot, all you need to do is connect a touchscreen monitor (sold separately) and full control is at your fingertips. The XT supports up to four touchscreens(sold separately) at once via rear panel display port outputs.

In fact, the grandMA3 onPC command wing XT incorporates all of the physical inputs and outputs of the larger grandMA3 console into its compact frame. DMX I/O, MIDI, time code, DC remotes, Audio, USB 2/3, Gigabit Ethernet, it's all there waiting for you to create. The command wing XT features the full command section of the larger grandMA3 console giving you access to 40 physical playbacks, 16 assignable X-Keys, a dedicated master area, and more.

The console is compact enough that when stored in the custom Peli flight case (sold separately) it's light enough to fly as checked-in luggage making it ideal for use in pre-programming and backup applications.

MA Lighting GRANDMA3PC-COMMANDXT Includes:

• 1 X grandMA3 onPC command wing XT console
• 1 X Dust cover for grandMA3 onPC command wing XT console
• 1 X 10 fader magnetic labeling plate
• 1 X 2m open end lockable IEC-C plug power cable
• 1 X Quick manual

MA Lighting GRANDMA3PC-COMMANDXT Features:

• Real-time control for 4 096 parameters in combination with grandMA3 onPC software – pre-installed on built-in MA motherboard
• Command section same as grandMA3 onPC command wing
• 29 rotary RGB backlit encoder
• 5 dual encoders
• 10 motorized 60 mm faders
• 40 separate playbacks
• 16 assignable x-keys
• 2 motorized A/B faders 100mm
• 1 Level-Wheel
• Individually backlit and dimmable silent (clickless) keys

MA Lighting GRANDMA3PC-COMMANDXT Specifications:

• Parameters: 4 096 (HTP/LTP)
• Parameters Mode2: not applicable (no Mode2)
• Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
• Power: max. 100 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions: 620 x 427 x 112 mm / 25 x 17 x 5 in
• (width x depth x height)
• Net weight: 12 kg / 27 lbs

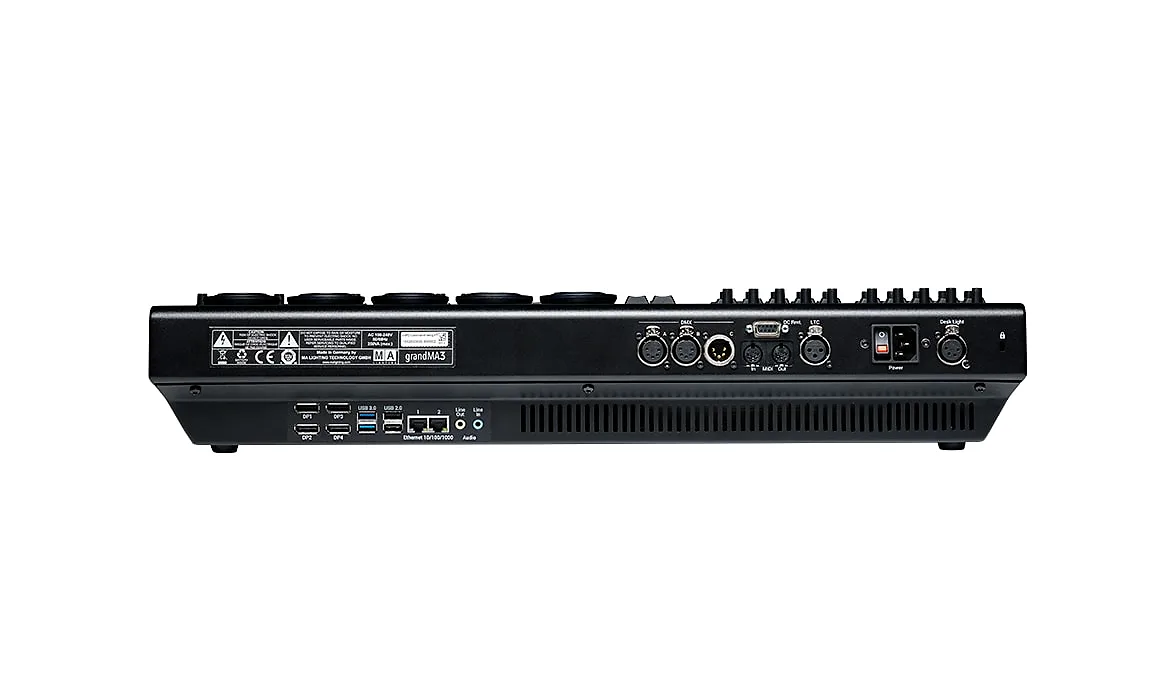

• Connectors
  • 1 x IEC-60320 C14 cord
  • 2 x RJ45
  • 2 x DMX512-A Out (5pin XLR female)
  • 1 x DMX512-A In (5pin XLR male)
  • 1 x MIDI In (5pin DIN female)
  • 1 x MIDI Out (5pin DIN female)
  • 1 x Linear Timecode (3pin XLR female)
  • 1 x Audio In (mini jack 3.5mm)
  • 1 x Audio Out (mini jack 3.5mm)
  • 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
  • 4 x DisplayPort 1.2 for external screens
  • 2 x USB 2.0 (type A)
  • 2 x USB 3.0 (type A)
  • 1 x LED desk light (4pin XLR female)
