TRITON AUDIO Kompressor Phantom-Powered In-Line Analog FET-OPTO Compressor

The Triton Audio Kompressor In-Line Compressor is a phantom powered analog FET-OPTO compressor with a one knob design.

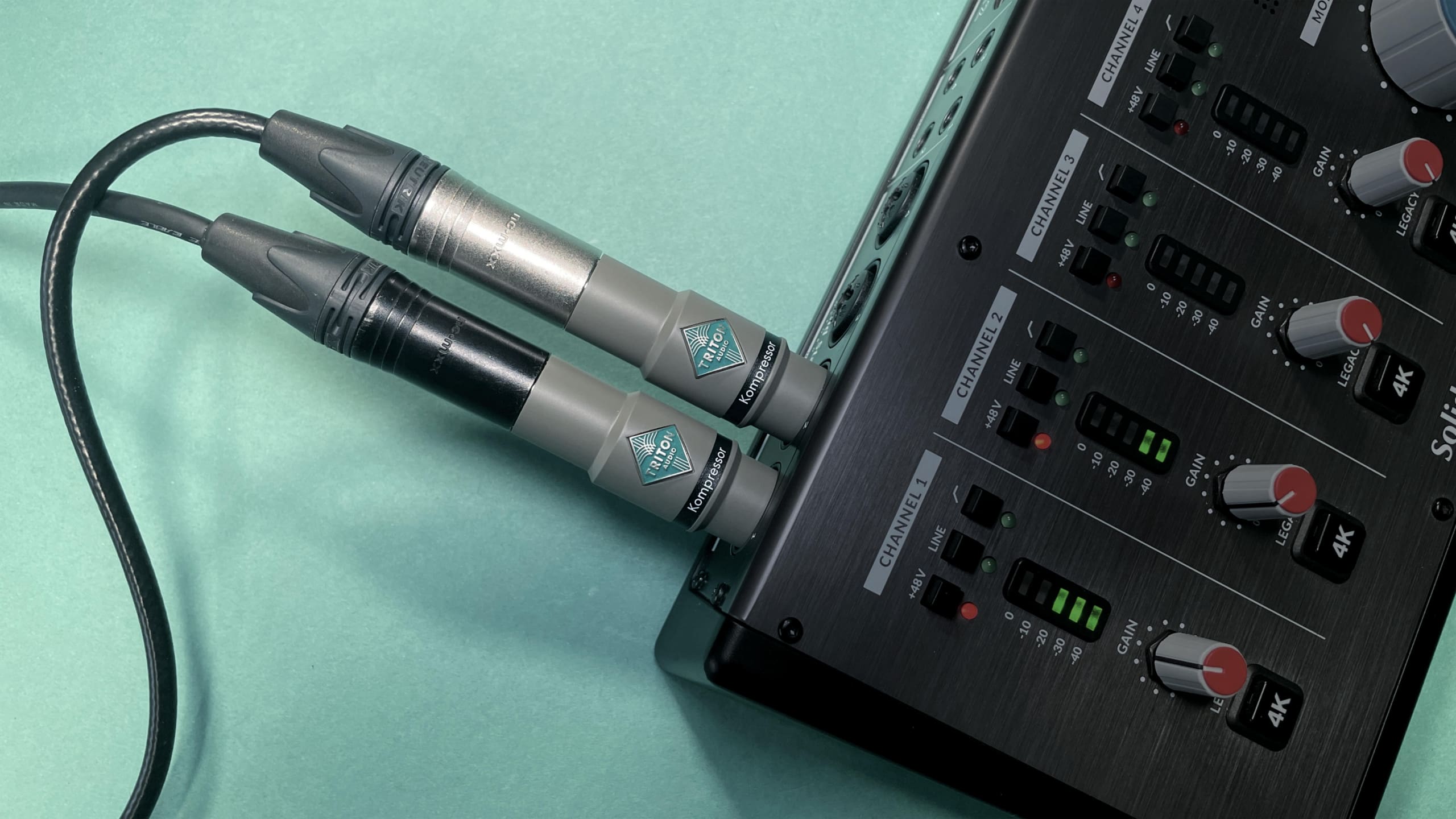

The Triton Audio Kompressor In-Line Compressor will latch straight onto any XLR equipped microphone, or anywhere else in the signal path between microphone and preamp/mixer. The electronics are housed in a robust metal chassis with a balanced XLR input and output. Kompressor is powered by 48V phantom power.

How to use

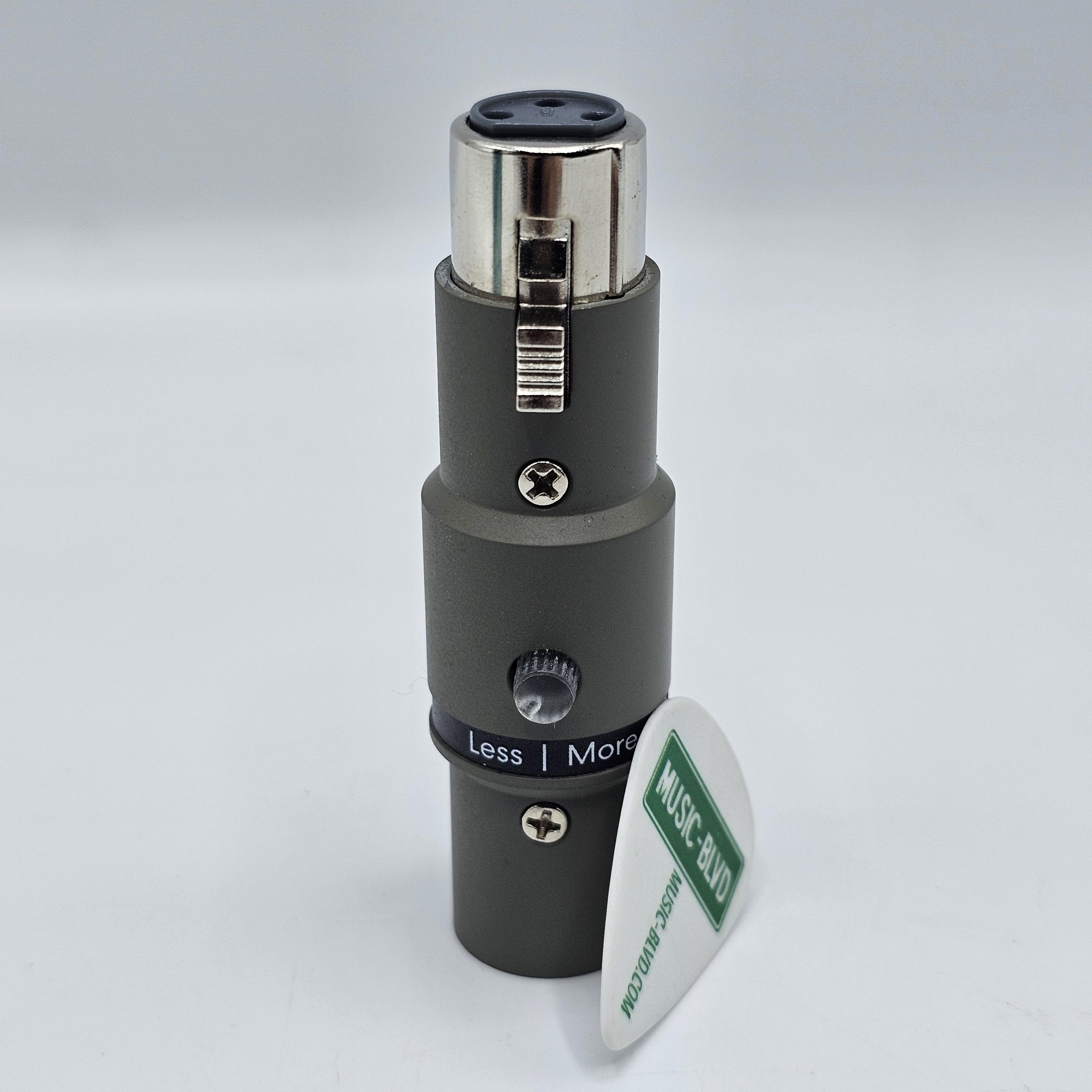

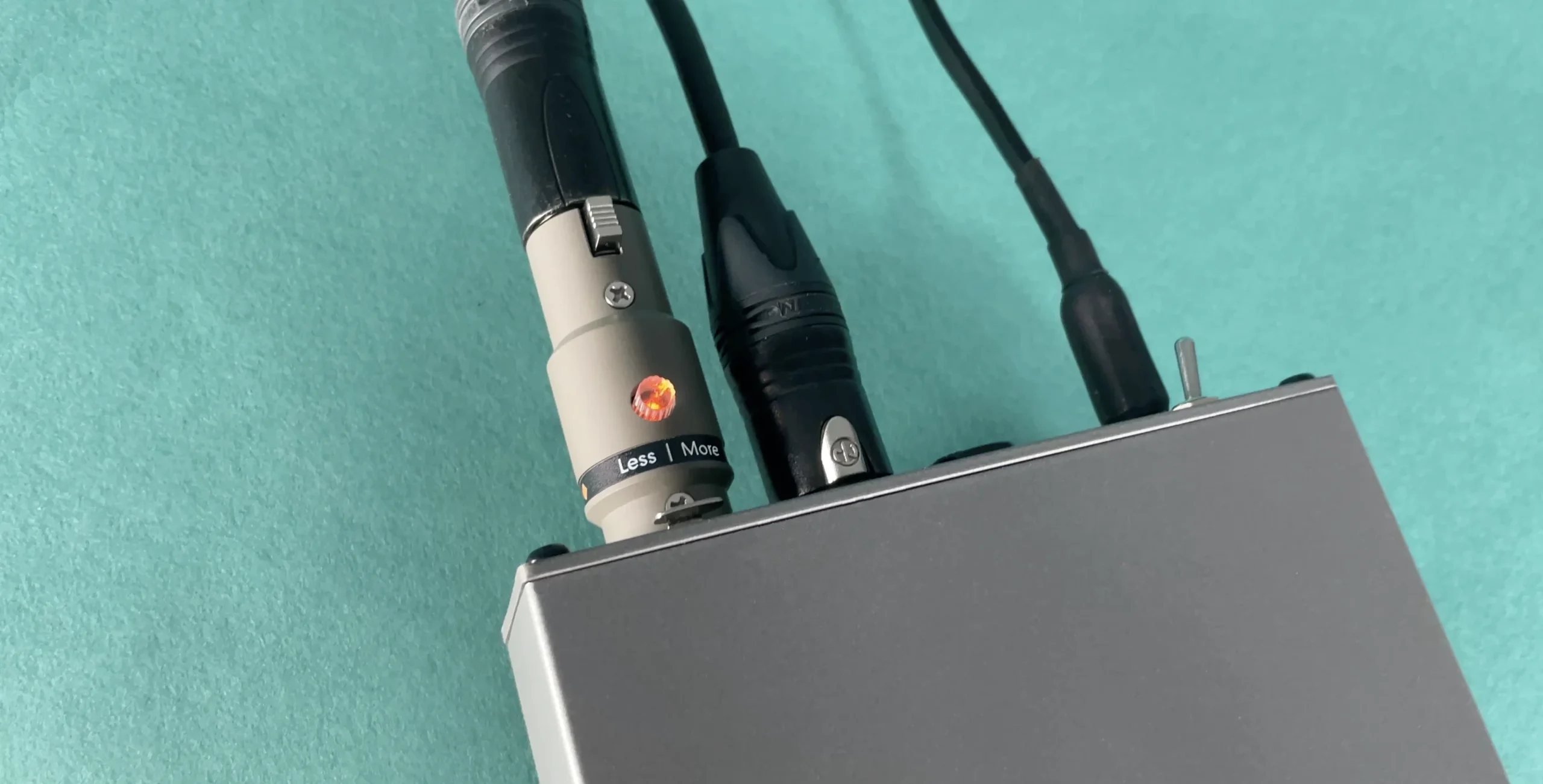

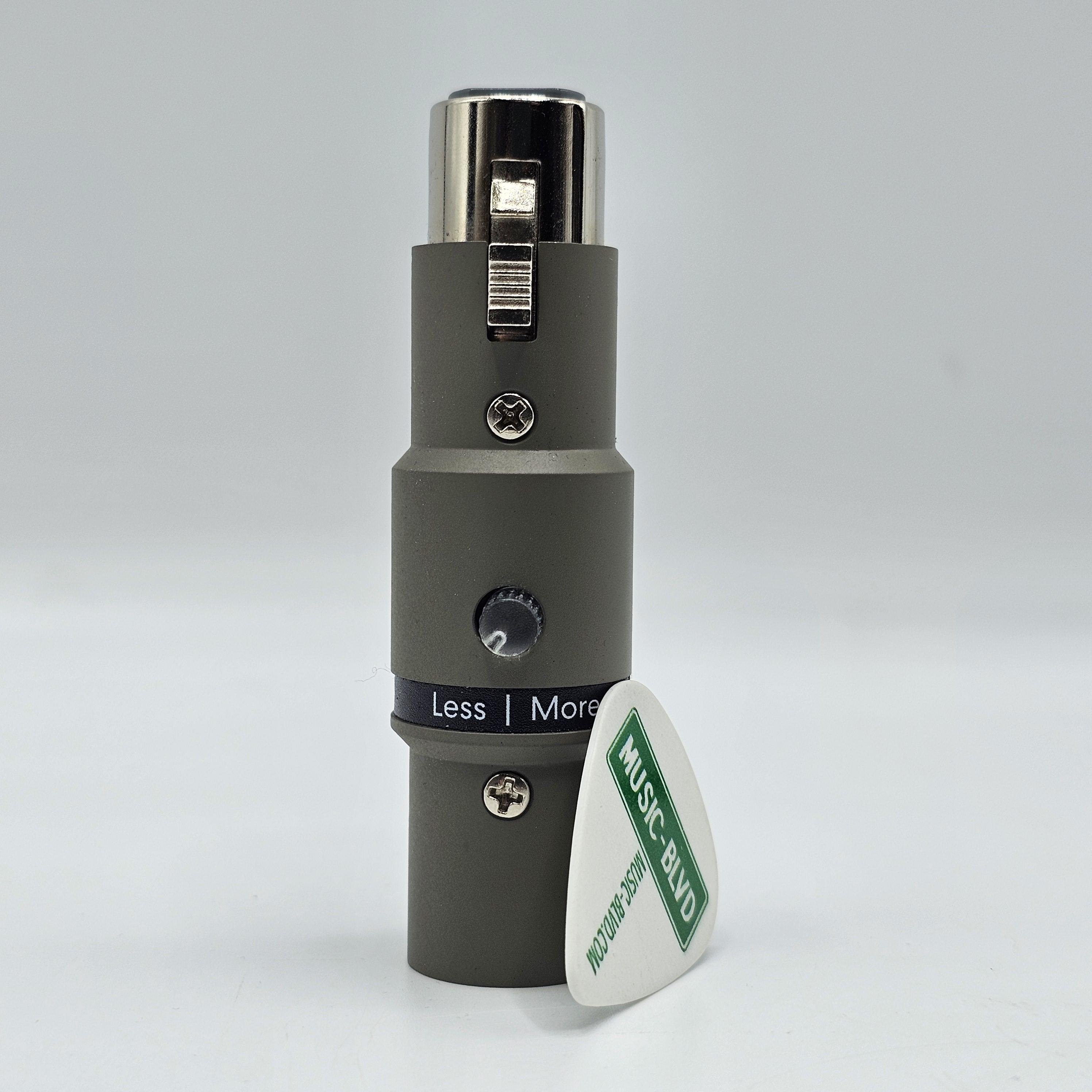

The Kompressor features a single knob that adjusts compression levels from Less to More. An orange LED inside the knob indicates when the signal reaches the compression threshold. If the LED flashes, it signifies light to medium compression; a continuously lit LED suggests heavy compression, which can be desirable for specific uses, such as on a drum room mic. Due to the one-knob design, compression levels will vary depending on the microphone’s output. For example, with a low-output dynamic microphone like the Shure SM7B, the compression effect is more subtle. In contrast, higher-output microphones such as the Shure Beta58 or Beyerdynamic M88 can trigger more pronounced compression. We start with a fixed added gain of 25dB, which decreases as more compression occurs.

Triton Audio Kompressor In-Line Compressor Features

• For tube, ribbon, and dynamic microphones only (Circuit is powered with 48V phantom power but doesn't reach the microphone)
• Balanced jFET opto circuit
• One knob operation with illuminating LED
• 25 dB amplification (without compression)
• Balanced XLR input/output
• Dimensions: 130 * Ø 30 mm
• Frequency response 10hz-100 kHz (+/- 1dB)
• Z-in 6.8 kΩ

Triton Audio Kompressor In-Line Compressor Includes

• Triton Audio Kompressor In-Line Compressor
• Protective Pouch
• Manufacturer Warranty
