Nordvang Custom - Wingman Dual Overdrive Pedal v2.0

The Nordvang Wingman pedal is an all analog, custom-made dual overdrive, featuring 2 identical overdrives based on the mythical Klon style circuit. Each of the 2 channels of the Wingman can be used together or separate, to create the ultimate boost and medium gain overdrive, with loads of headroom and output on tap.

Nordvang Custom's inspiration for this pedal came from demand from their fans, requesting a dual version of the Klon style pedal. They loved how very versatile the pedal is, as either a clean boost or as a mid pushed, medium gain overdrive. It made sense to offer it in a dual version, allowing the full potential of the circuit to shine through.

Wingman is a military aviation term of “the plane flying beside, and slightly behind, the lead plane in an aircraft formation”. This is how Nordvang came to the name of Wingman, as the two circuits can be used separately, or stacked together, for a more complete Klon-style tonal experience.

Staying true to the original, Nordvang Custom kept the buffers, but added switching options for tweaking, and also changed all internal op amps supply voltage to +/- 9 Volt for better signal handling, when stacking the 2 sides.

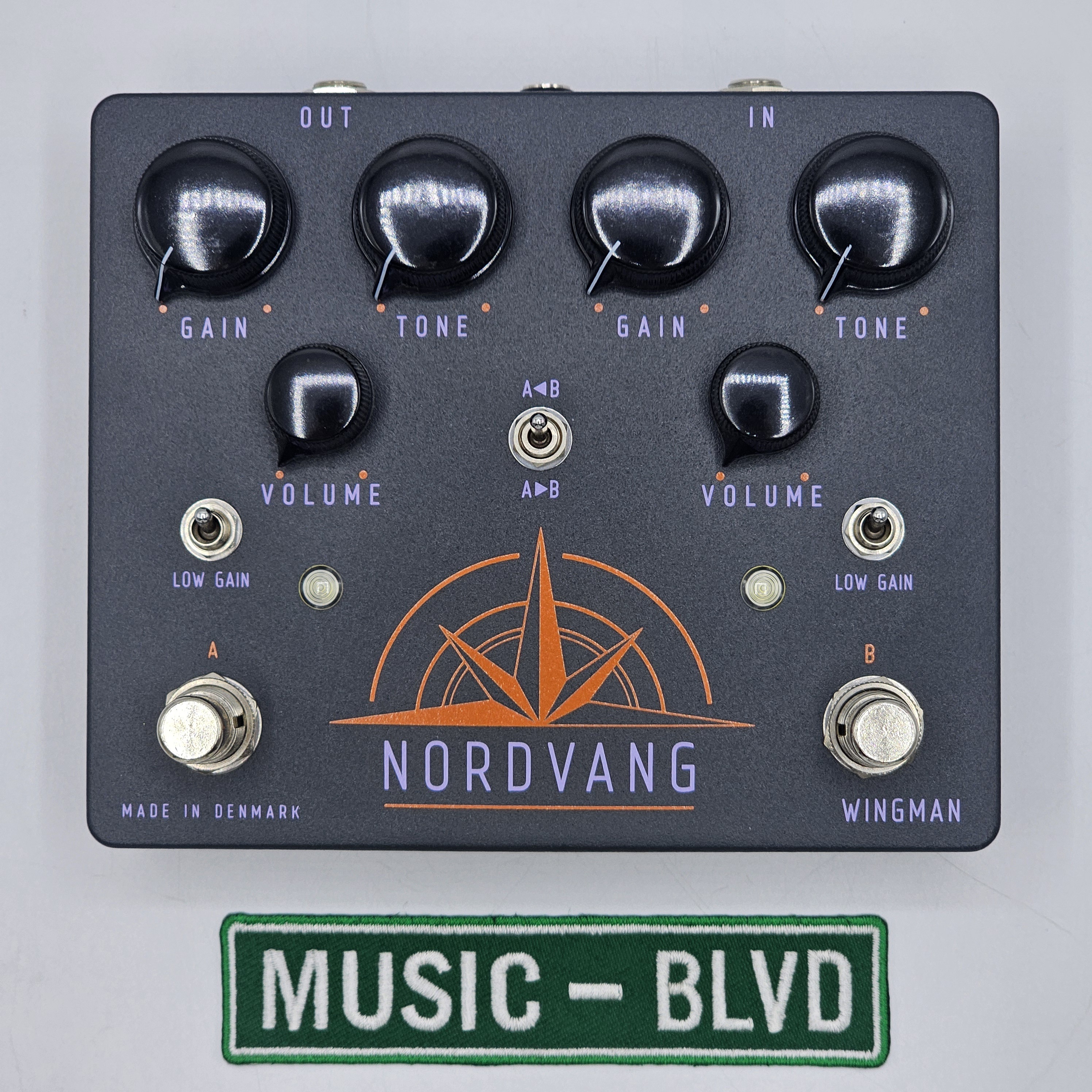

The Wingman overdrive is divided into a Side A (left) and a Side B (right), separated by an order toggle switch in the middle, which flips the internal order of the effects, and hence the signal path from guitar to amp.

Both side A and side B feature external controls for GAIN, TONE, VOLUME, and a 2-position toggle switch labeled RATIO. The ratio switch adjusts the maximum gain range in the overdrive gain stage. Internally you’ll find 1 set of dip switches for each side, labeled lows, which allows you to extend the the bass response in the circuit.

Nordvang Wingman Pedal Features (both sides):

• The legendary Klon-style circuit.
• Internal supply voltage boosted to 18 Volt for increased headroom in all gain stages.
• External Ratio toggle switch for switching between standard and low gain, enabling you to more precisely dial in your desired low gain setting.
• 2 Internal dip switches for extending the low frequency response, one for low frequency response in the overdrive gain stage, and one in the clean signal path.
• External switch to choose which order the signal passes through the two circuits.

The Nordvang Wingman overdrive is built using carefully selected top shelf components:

• Vishay 1% metalfilm resistors
• WIMA MKP10, MKS4 and FKP2 film capacitors (no electrolytes in the audio circuit)
• VIMEX sealed potentiometers
• Carling Footswitch
• CKK and Taiway toggle switches
• Pure Tone Multi-Contact 1/4" Jack
• Silver plated teflon insulated cable for internal wiring.
• U.S. made Davies Moulding 1470 knobs
• NOS A119 germanium diodes

Nordvang Wingman Pedal Manual PDF

Dimensions:
5.72" x 4.77" x 1.39"

Power Supply (sold separately):
This pedal does not use batteries, it uses a standard 9 Volt (not any higher, or damage may occur), DC, Center-Negative, with a minimum 100mA of delivery, power supply (just like most all other guitar pedals use). Nordvang recommends a quality power supply with isolated outputs.

Warranty:
Comes with Nordvang Custom's 2-year warranty, which covers defects under normal use, using a proper 9 volt power supply.

Shipping:
Ships fast! Usually same day, with Free UPS shipping in U.S. with tracking (1 biz day processing, 1-3 biz days transit time usually). 1 and 2-Day guaranteed shipping are also available.

Our added value, when purchased here at coolguitarshop.us:

• Best Total Price: $419 is your absolute final/total here, with Shopify Secure Checkout.
• No Taxes or Duties: We pay all of these for you.
• Fast Free UPS Shipping in U.S.
• No Risk: Try it on your own rig for 30 days. Don't love it? Return it for a full refund... no hassles, no costs. (We'll send you a prepaid return label link.)
• Rock-solid customer service, 365 days a year.



Imagine having 2 Klon-style pedals in one beautifully designed new pedal, custom-made to stack well together for maximum tonal opportunities... the Nordvang Wingman pedal v2.0. Handmade in Copenhagen, Denmark!
