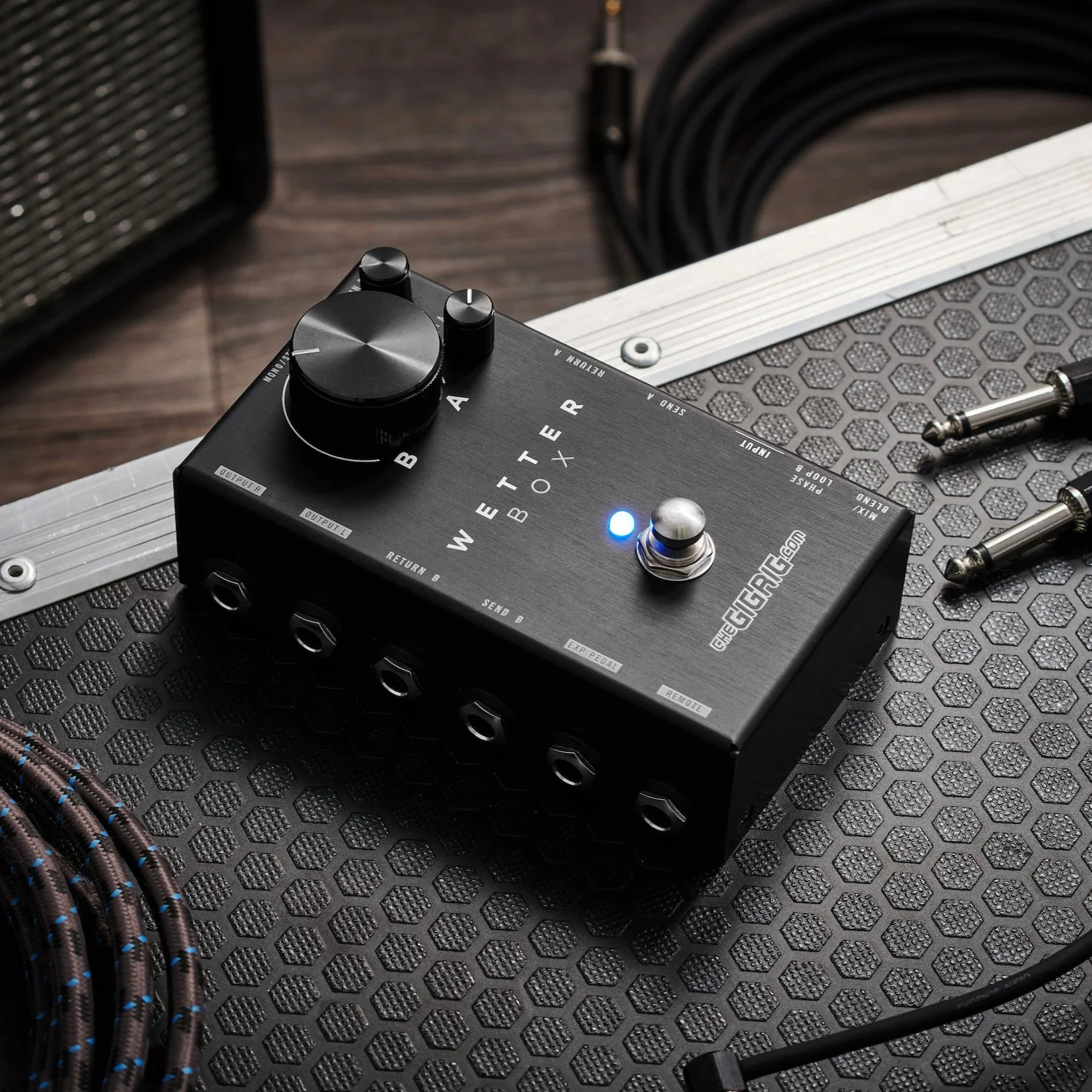

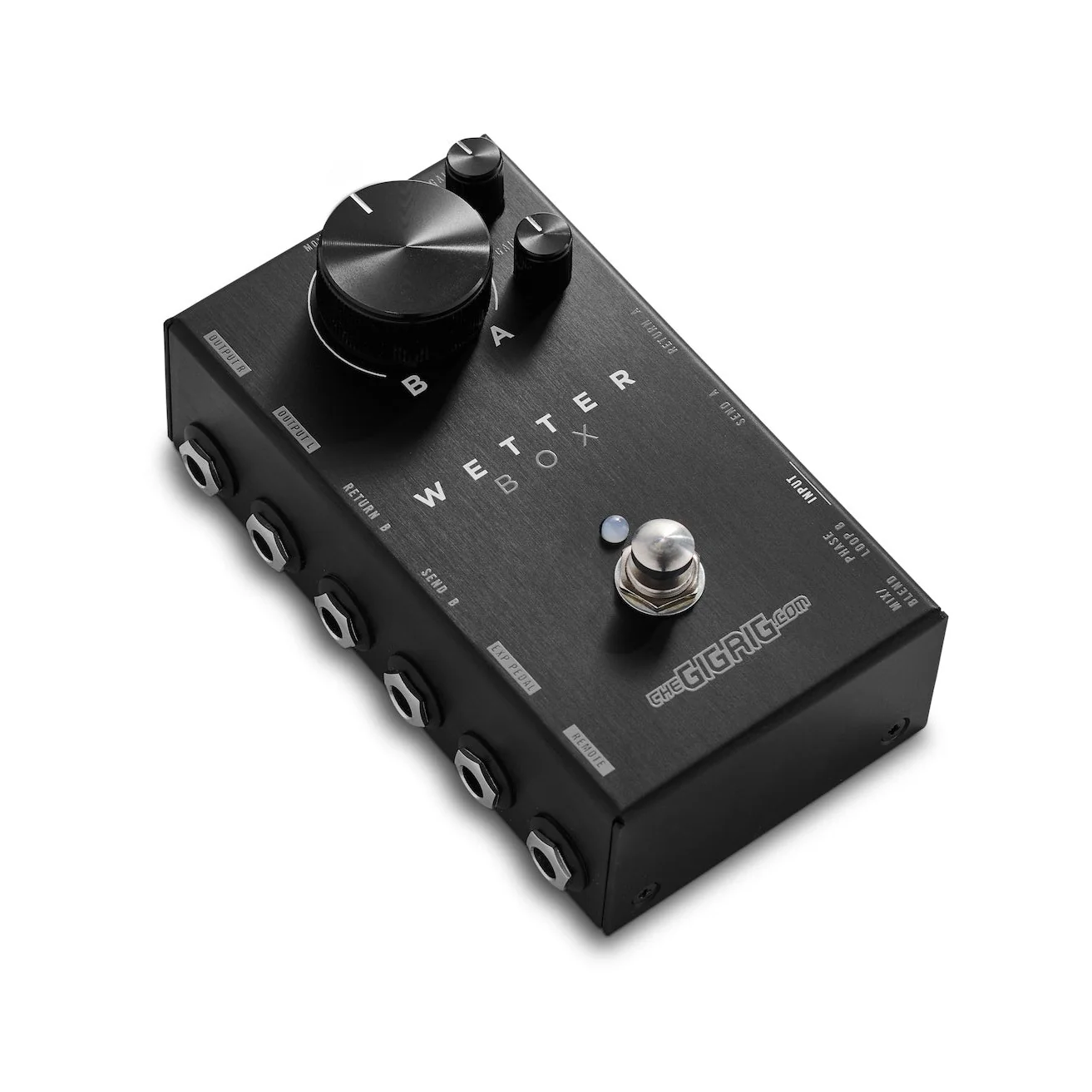

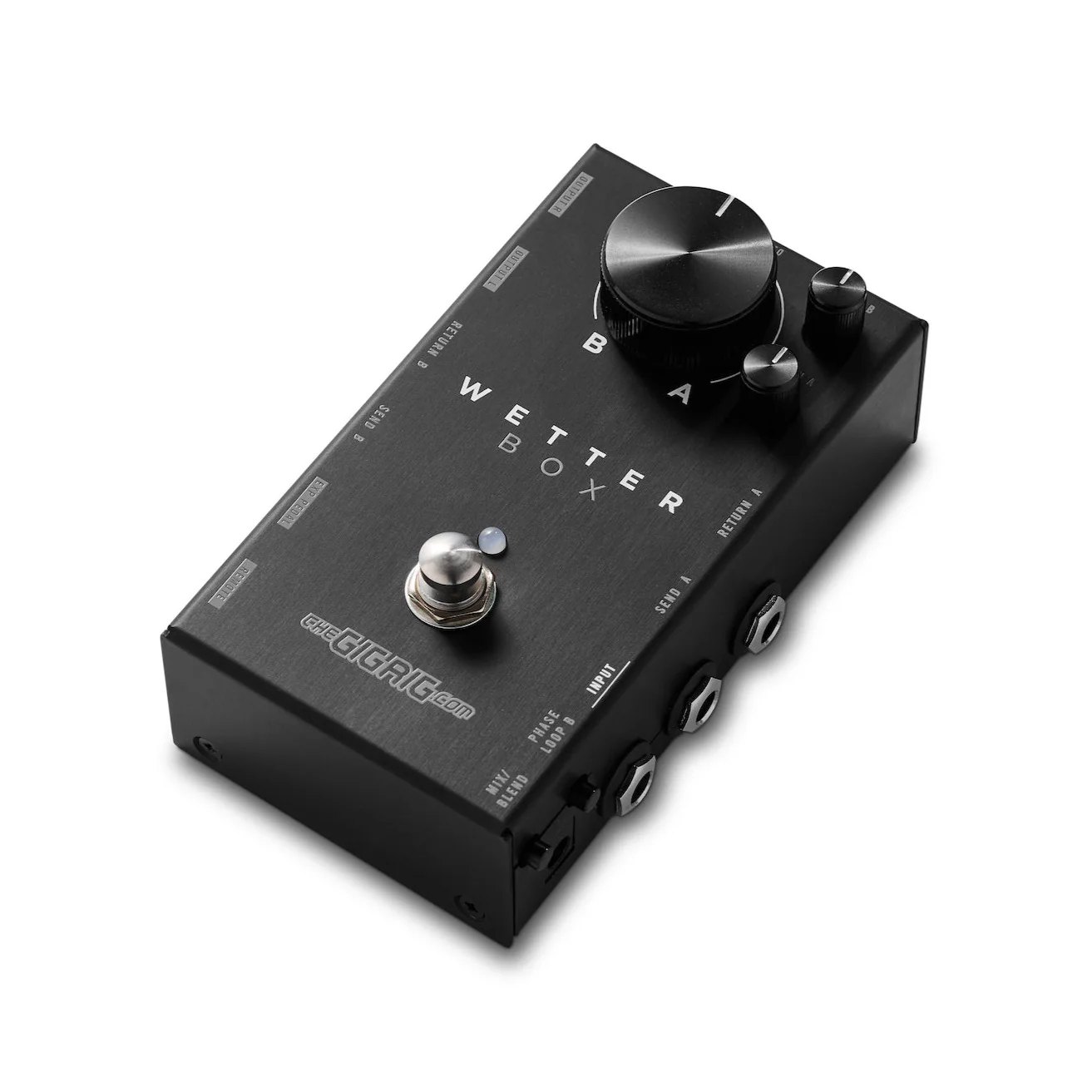

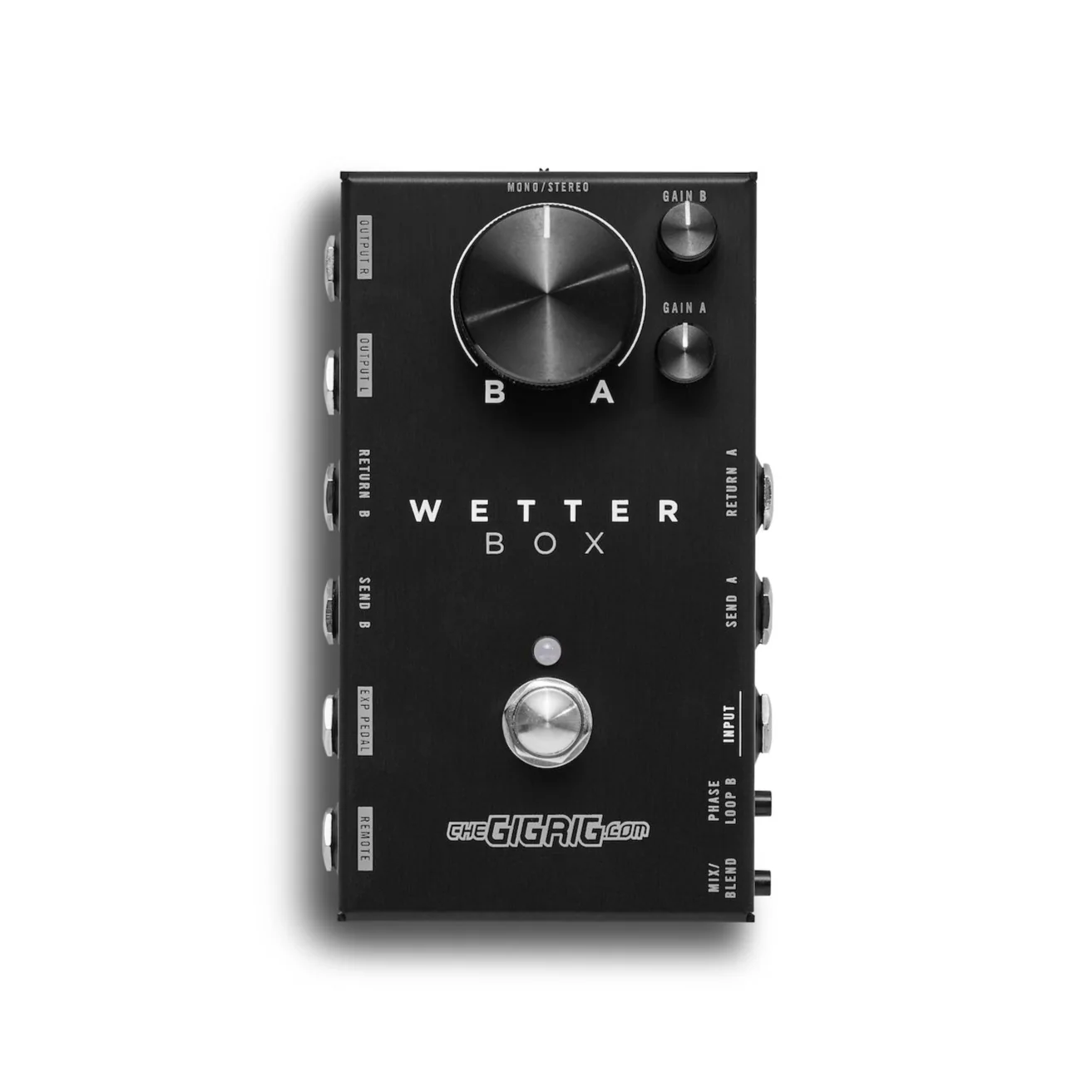

The GigRig Wetter Box

• Plug in any 2 effects and blend them in parallel
• Blend in an effect in parallel with your direct signal
• Do this in real time with an expression pedal
• Independent gain controls on each loop
• The ability to flip the phase on the return of LOOP B to be able to deal with any phase issues
• True stereo signal path using TRS cables
• 2 separate modes of operation, BLEND (crossfade from loop A to loop B) or MIX (add loop B to Loop A)
• Internal voltage doubling compatible with guitar level or amp fx loop level
• Internally isolated power
• True Bypass or Buffered Spillover bypass
• Control the bypass state remotely with any latching switch
• 100% analog signal path
• TheGigRig OptoKick footswitch

POWER: 9V DC centre negative. Optimised for use with the GigRig Generator power supply.

CURRENT DRAW: 185mA

INPUT IMPEDANCE: True Bypass: Source impedance. Buffered/Trails Bypass: 1MΩ

INPUT SIGNAL HANDLING: Input Drive Levels (Line level compatible)

OUTPUT IMPEDANCE

True Bypass mode:

Bandwidth = Source bandwidth
Output impedance = Source impedance
Max output Level = Source Level
Gain=0dB(V)

Bypass – Trails mode:

Bandwidth = 10Hz – 85KHz
Output impedance = 27Ω
Noise = 3nV/√Hz
Max output Level = +/- 8.5V

Gain=+6dB(V)

DIMENSIONS: Box size: 13.5cm x 7.5cm x 4cm

WEIGHT: 0.33kg / 0.73lbs
