Nordvang Custom Altitude Pedal

• Extended Headroom: Nordvang implemented a charge pump (voltage doubler) circuit to increase the internal voltages supplied to the op amps. This results in a more dynamic, touch-responsive, and amp-like feel.
• More Output: Nordvang added an extra gain stage at the end of the BB circuit to increase the output level. This allows you to push the front end of your amp, even with the Altitude at low gain settings.

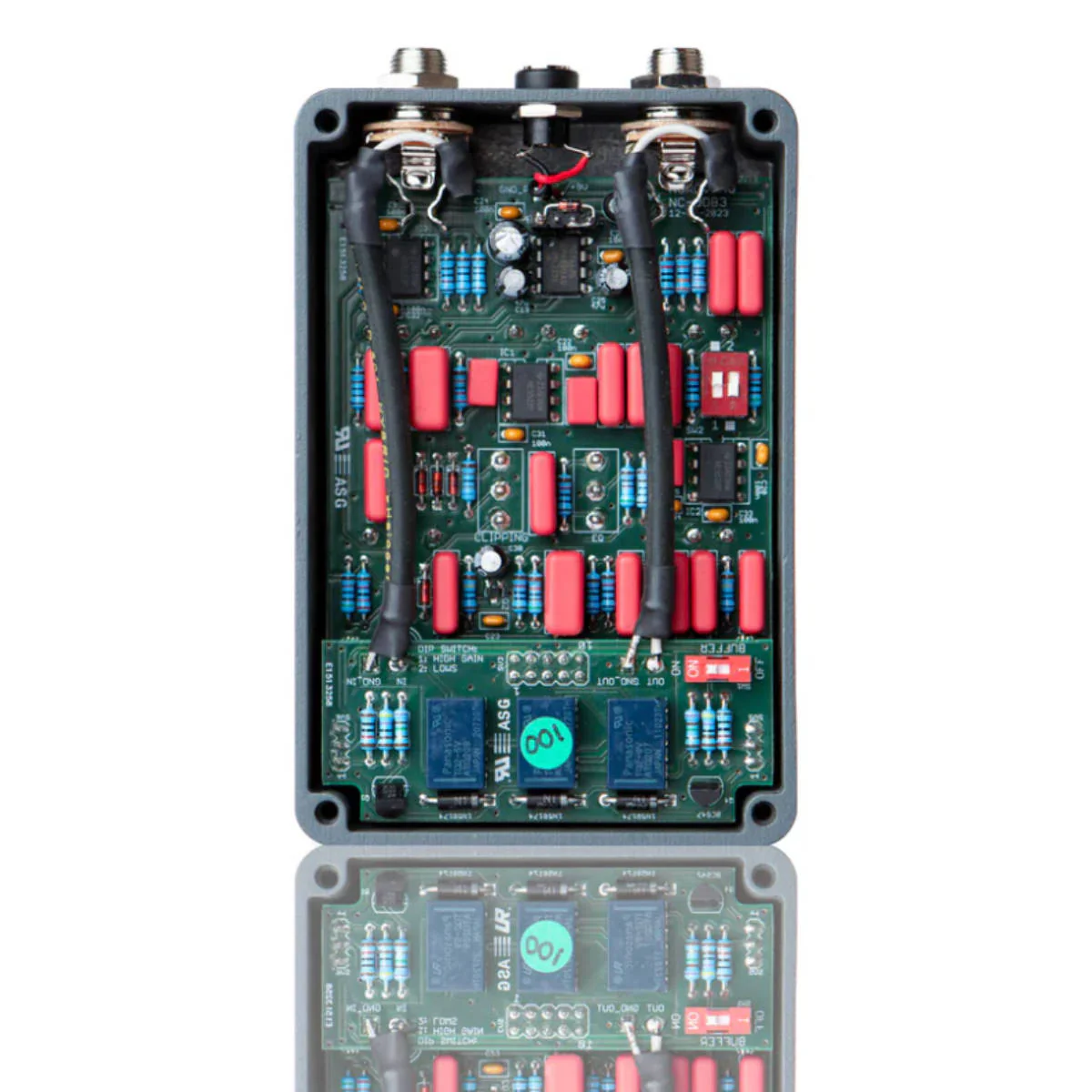

• Premium Parts: It’s not just about the recipe; it’s about the ingredients! Nordvang believes that the quality of components is crucial, which is why they use only the best. Their capacitors come from Wima, with their top-of-the-line MKP10 (polypropylene) for the input capacitor. Throughout the circuit, you’ll find a carefully selected mix of MKP10, FKP2, MKS4, and MKS2 capacitors. Because great sound starts with great parts.
• NO electrolytic capacitors in the audio path! While many companies cut corners with electrolytic or cheap ceramic capacitors (SMT) once the value hits 1uF, we take a different approach. Nordvang exclusively use high-quality film capacitors because they simply sound better.
• The Altitude is wired using screened D-501 high-end audio cable, made by Van den Hul in the Netherlands.

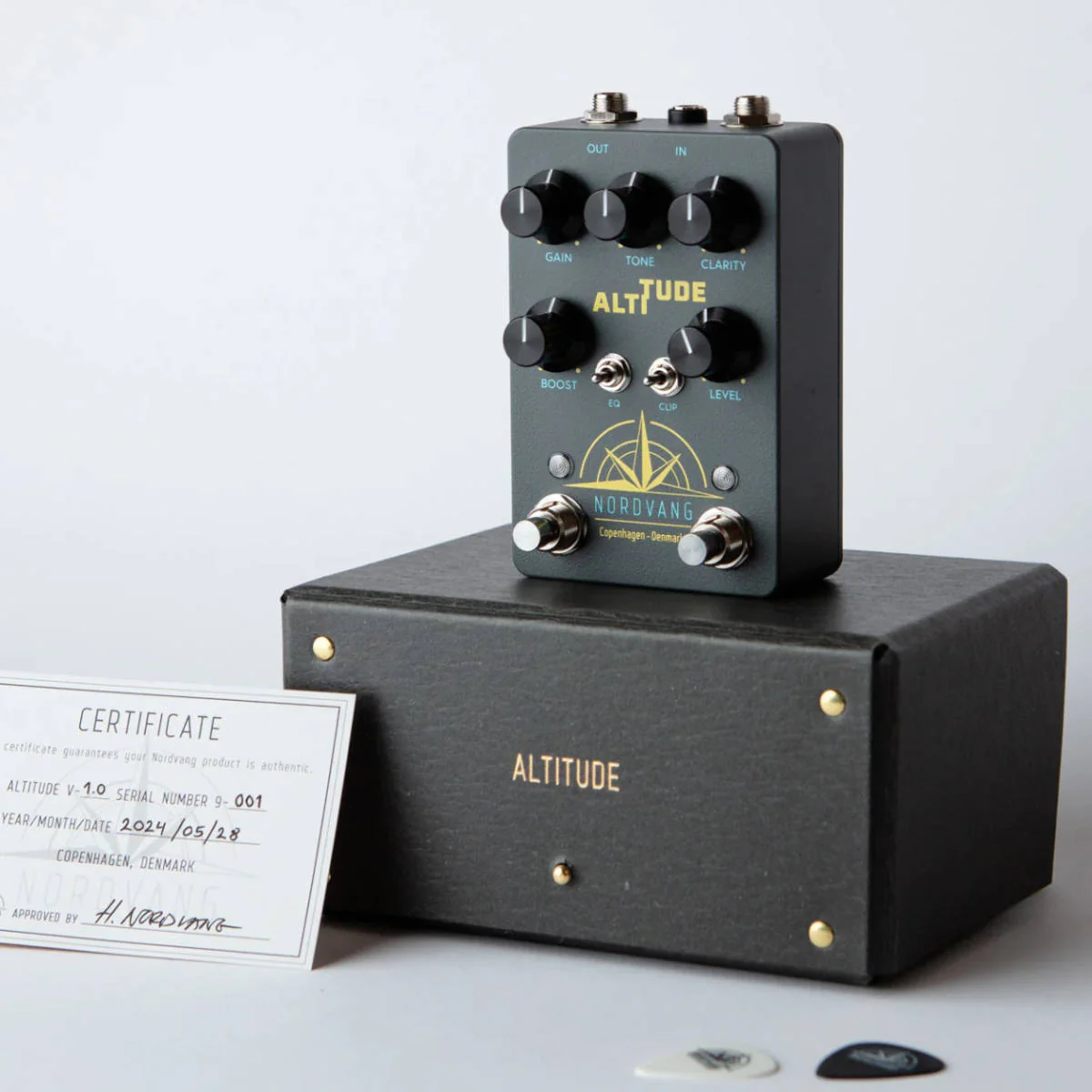

• Comes with a stunning custom-made box, fabricated by a local company the "old school" way.

• Gain, Tone, Level: Standard controls for shaping the tone of the overdrive section of the pedal.
• Clarity: A secondary, but more subtle tone control, for fine-tuning the high frequency response of the overdrive circuit.
• CLIP - 3-way toggle switch: Changes the clipping-diode structure, with three levels of compression. Choose between 4-diodes, 6-diodes or no diodes (open), for maximum clean headroom.
• Boost: Controls the boost level. With the boost at minimum, the level is unity.
• EQ - 3-way toggle switch: Choose between three different eq curves for the boost. Full frequency, low-mids and high-mids.

• HIGH GAIN: Increases the minimum gain level and extends the gain range by 50%.
• LOWS: Boosts the low frequency response of the overdrive.

• Dimensions 4.57 in x 3.03 in (116 mm x 77 mm)
• Supply current: 125 mA
• No battery operation
• Buffered or true bypass

POWER SUPPLY (sold separately):
This pedal does not use batteries, it uses a 2.1mm plug, 9 Volt DC, Center-Negative power supply, with a minimum 100mA of delivery (like most all guitar pedals use). Any power supply higher than 9 Volt DC can damage the pedal. Nordvang recommends a quality power supply, with isolated outputs.

WARRANTY:
Comes with Nordvang's 2-year warranty, which covers defects under normal use, using a proper power supply.

SHIPPING:
Ships fast! Usually same day, with free UPS shipping in U.S. with tracking (1 biz day processing, 1-3 biz days transit time). 1 and 2-Day guaranteed shipping are also available.

OUR ADDED VALUE, when purchased here at coolguitarshop.us:

• Best Total Price, Available Year-Round Here! $359 is your absolute final/total here, with Shopify Secure Checkout.
• Tax Free & Duty Free
• Fast Free UPS Shipping in U.S.
• No Risk: Try it on your own rig for 30 days. Don't love it? Return it for a full refund... no hassles, no costs. (We'll send you a prepaid return label link.)
• Rock-solid customer service, 365 days a year.

Inspired by the legendary Marshall Bluesbreaker, with more features and tweakability.. the Nordvang Altitude pedal v1.0. Handmade in Copenhagen, Denmark!
