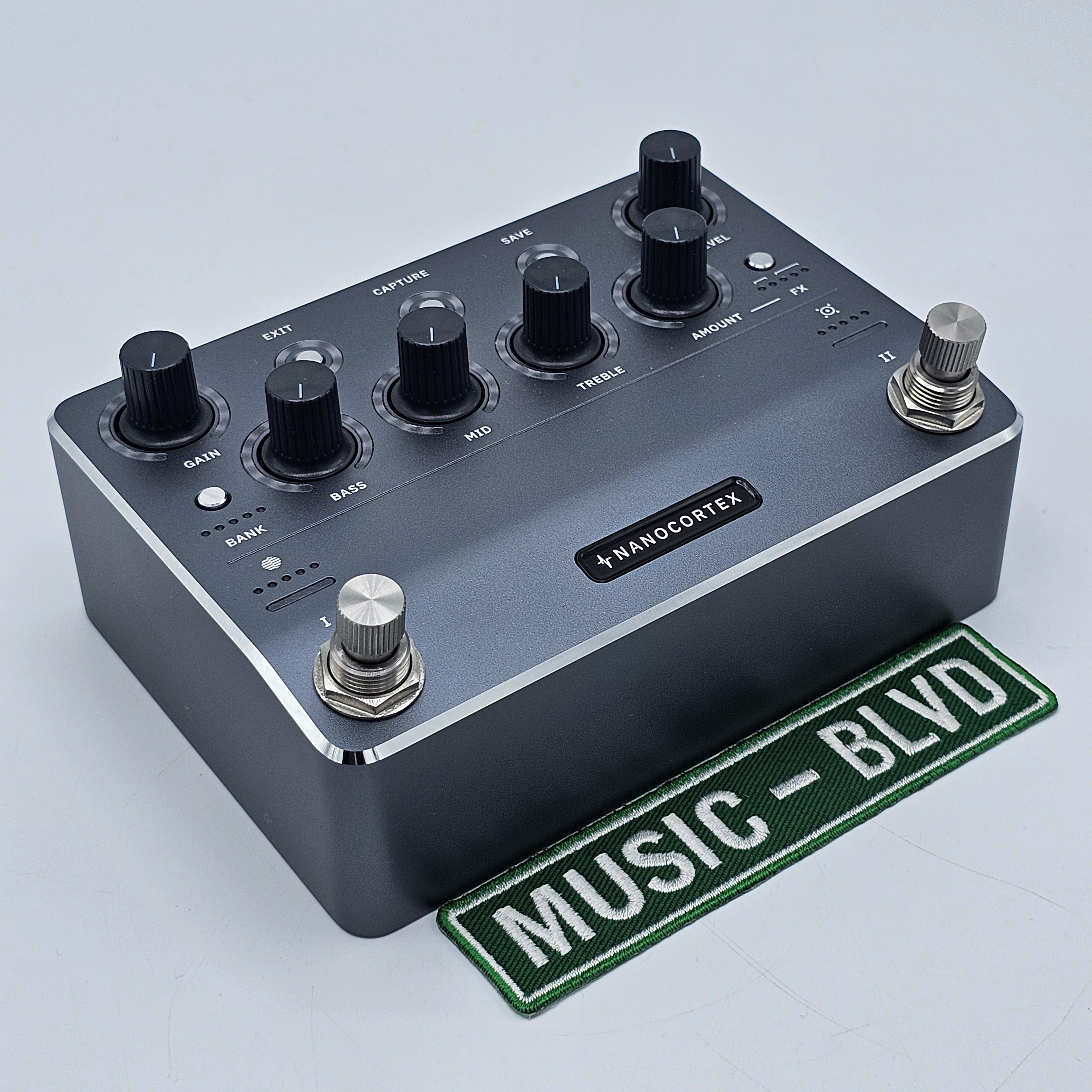

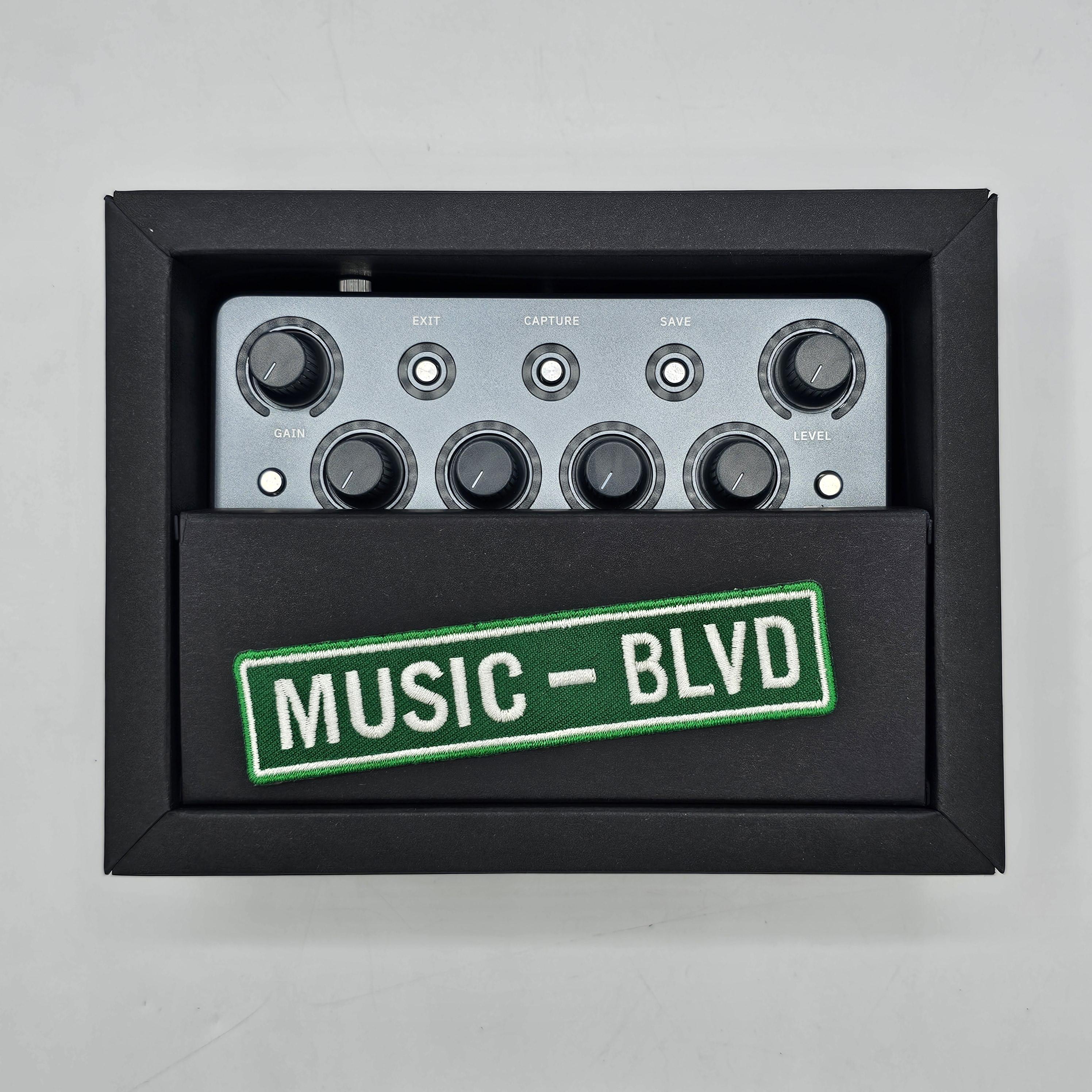

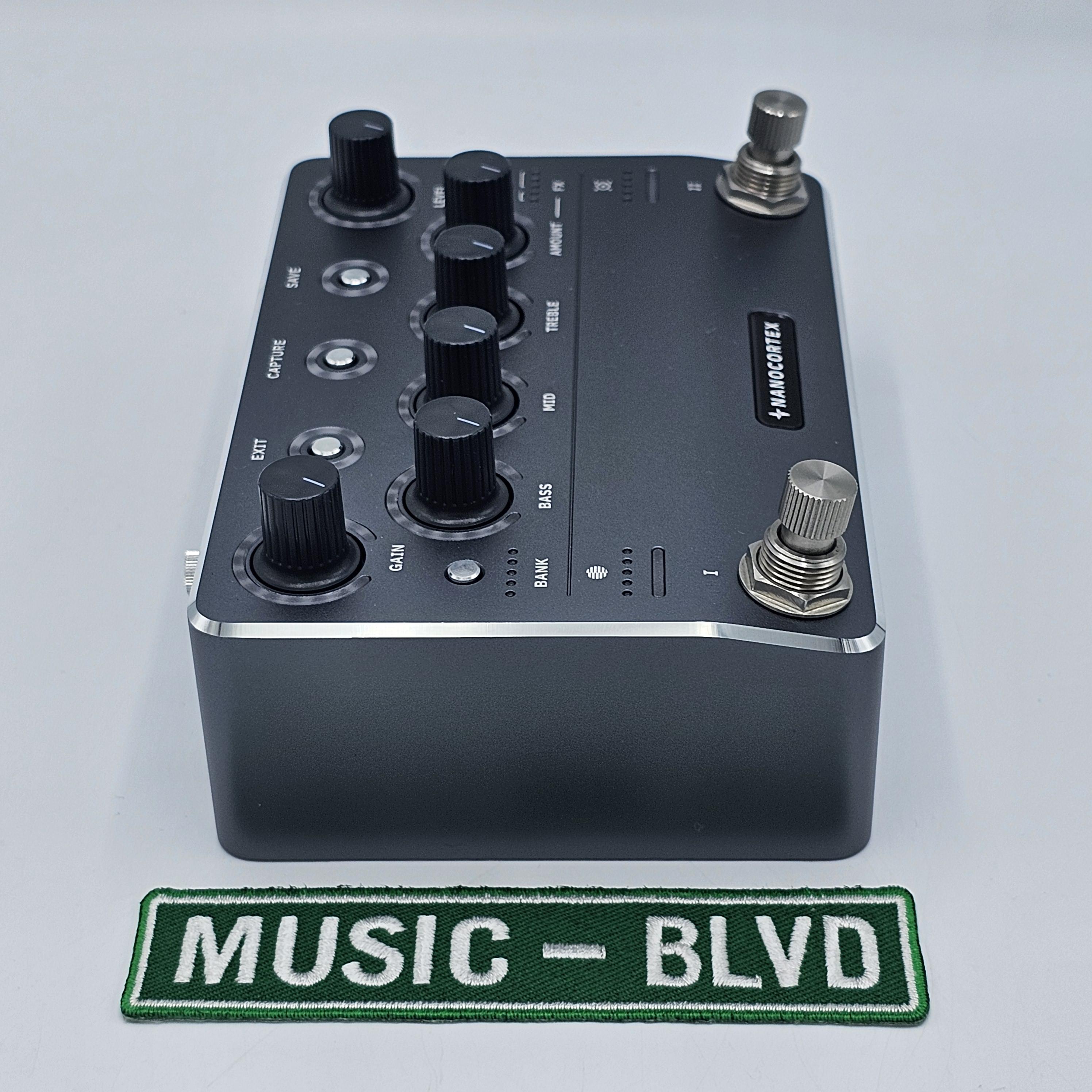

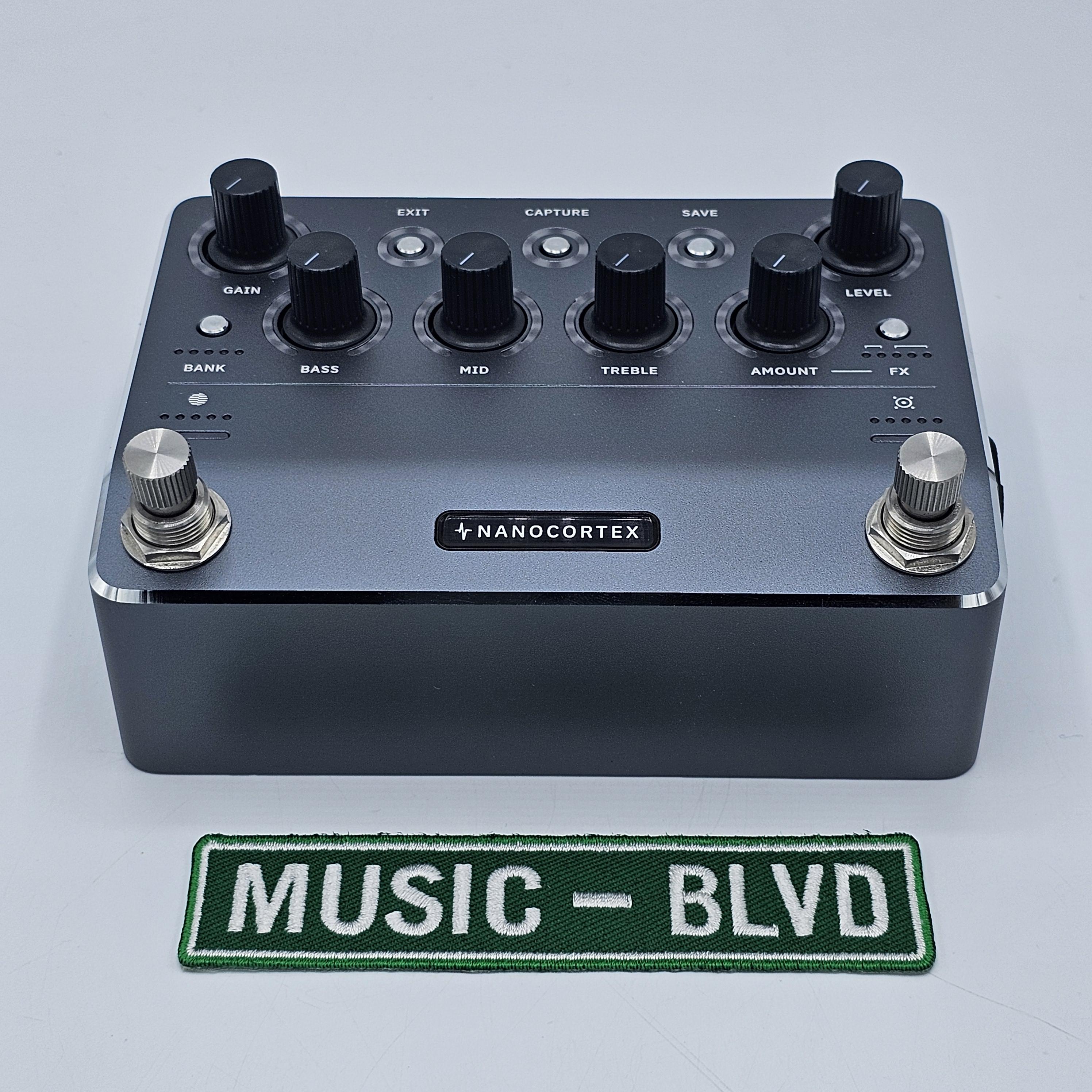

Neural DSP Nano Cortex Digital Effects Modeler/Profiling Pedal

Multi-Effect Pedal for Electric Guitar

• Digitally replicates the sound of amplifiers, speaker cabs, and pedals in the same quality and resolution as the "bigger" Quad Cortex
• Up to 64 presets and 256 Neural Captures
• 10 High-quality IRs pre-installed, each providing 5 different microphone options and 6 microphone positions
• Users can load up to 256 custom IRs
• 7 Device blocks, including 2 Pre-FX (Adaptive Gate and Transpose), 3 Post-FX (Chorus, Analogue Delay, Mind Hall Reverb), 1 Neural Capture block and 1 extended IR loader
• Each block can be bypassed depending on the setup
• Free access to thousands of Neural Captures from the Cortex Cloud
• Deep editing is possible via Cortex Cloud App

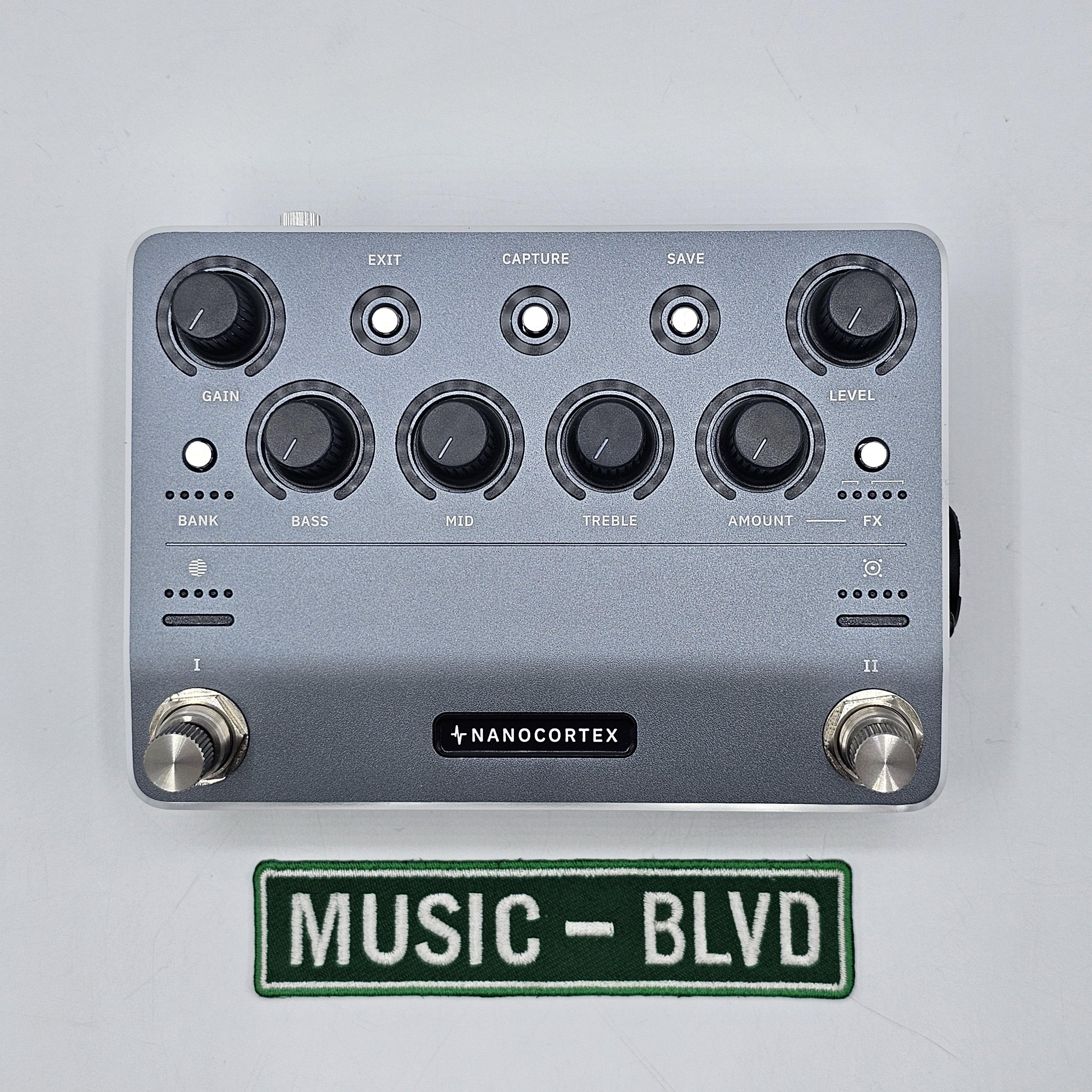

• Controls: Gain, bass, mid, treble, amount, level, and headphone volume
• Push buttons: Exit, capture, save, bank, FX, ground/lift, boost
• Footswitches: I and II
• True bypass
• Power supply via USB-C or 9-12 V DC mains adapter (not included)
• Dimensions (W x D x H): 144 x 103 x 62 mm
• Weight: 620 g

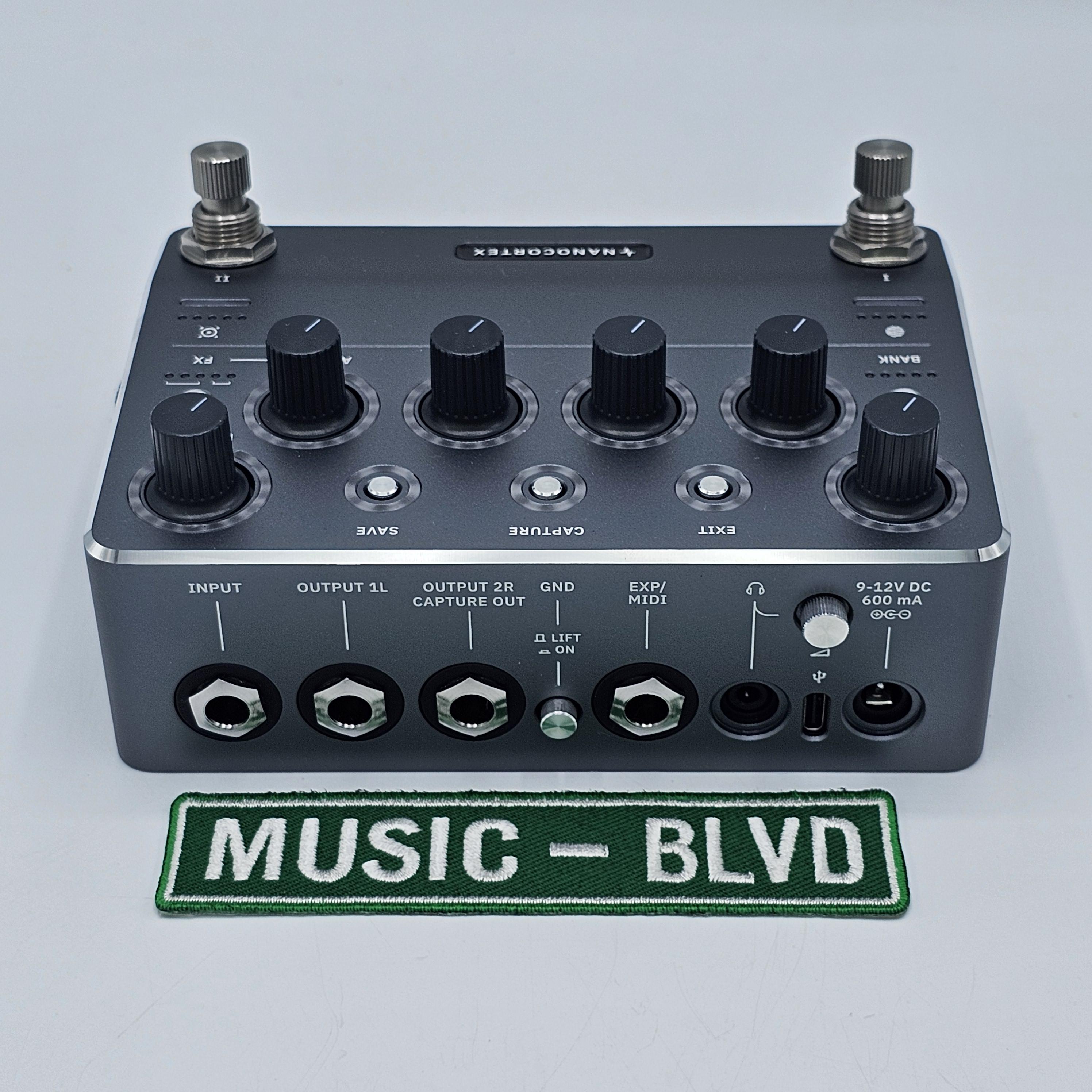

Connectors:

• Input: 6.3 mm jack
• Output 1L: 6.3 mm stereo jack
• Output 2R/Capture output: 6.3 mm stereo jack
• Headphone output: 3.5 mm stereo jack
• Expression/MIDI connection: 6.3 mm stereo jack

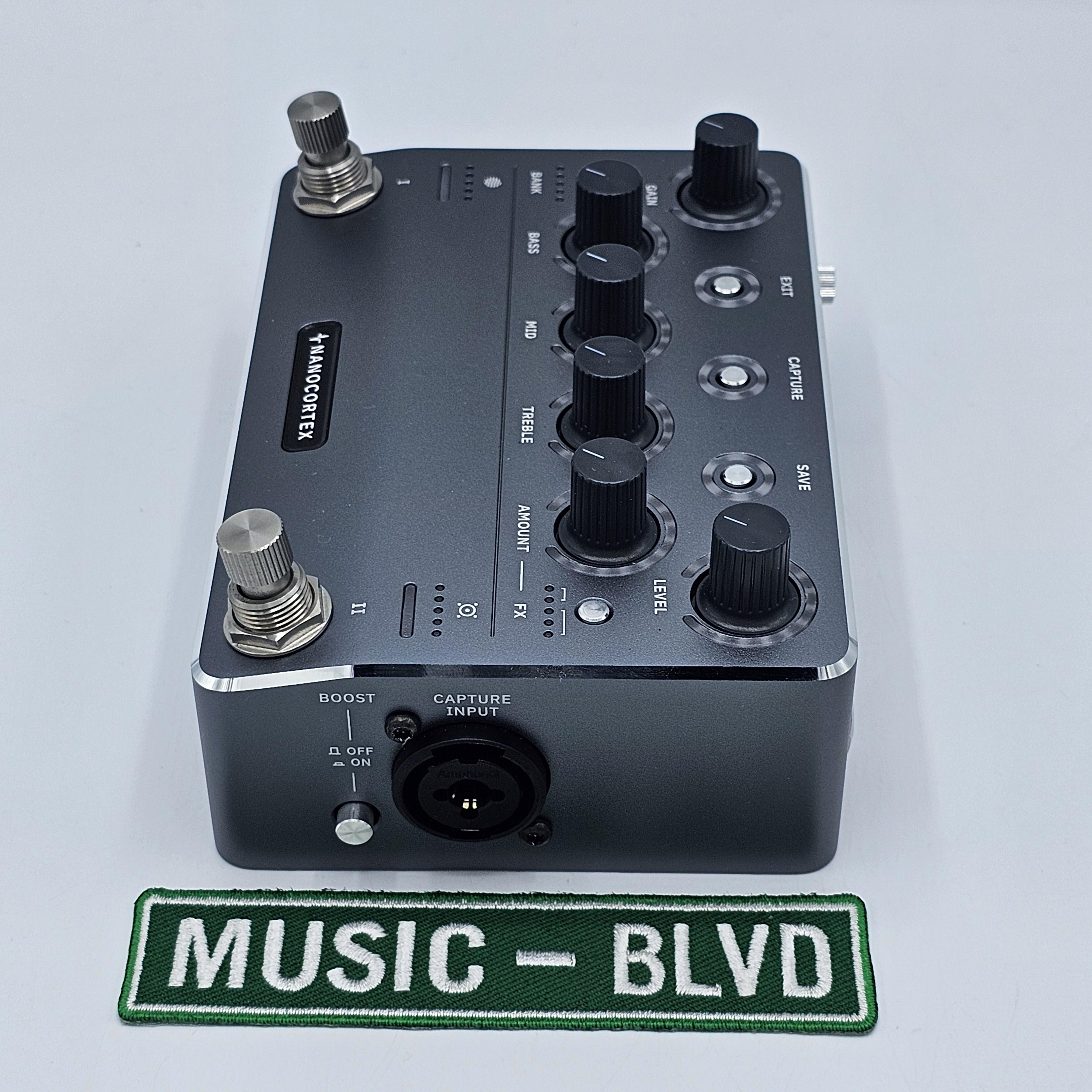

• Capture input: XLR/6.3 mm jack combo socket
• USB C
• Power supply connection: barrel connector 5.5 x 2.1 mm, centre negative

Note: Battery operation is not possible.
