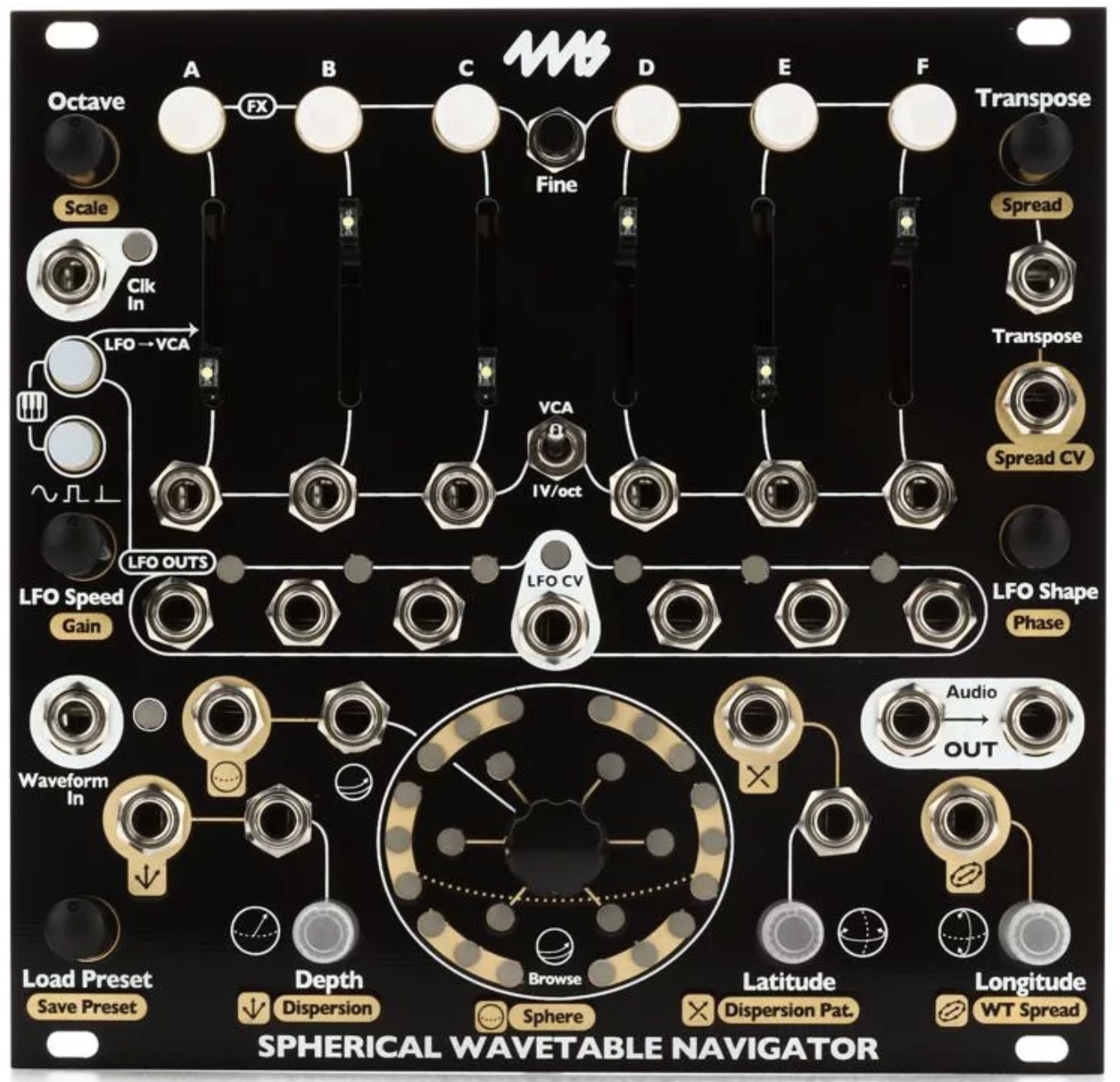

4ms Spherical Wavetable Module Eurorack Module

Mesmerizing Wavetable Synthesis for Eurorack
With six channels optimized for creating complex drones, evolving soundscapes, polyphonic melodies, and evocative sonic textures, the 4ms Spherical Wavetable Navigator Eurorack module may become your first-call oscillator source. And with six LFO/envelope outputs ready to patch, it may be your ideal modulation source as well. Best of all, the entire state of the Spherical Wavetable Navigator module can be saved to one of 108 preset locations for instant recall anytime. Whatever style of music you create, there’s big creative potential in the 4ms Spherical Wavetable Navigator Eurorack module.






Precision pitch tracking for in-tune performance every time
Whether you’re playing the Spherical Wavetable Module via a MIDI or CV keyboard, or you’re sequencing it with a Eurorack module or your DAW, you can expect ultra-precise pitch tracking. Its pitch-tracking technology is temperature-stabilized and automatically recalibrates for optimal pitch tracking with any source.




Capture your own wavetables in real time
The 4ms Spherical Wavetable Module is equipped with 12 spherical wavetables to explore, and you can save up to 108 of your own custom wavetables. These can be recorded from incoming audio, allowing you to create wavetables generated by sounds from your other Eurorack modules. You can also create your own wavetables on your computer with the free SphereEdit software.




Quantize any channel for instant musical results
Synthesists at Sweetwater were immediately impressed at the scope of the Spherical Wavetable Module’s creative capabilities. Just one example is the ability to apply quantization to any and all oscillator channels, with options for major, minor, and harmonic scales, as well as semitones. Patch in CV from an envelope generator to generate one-off melodic lines. Or patch in CV from an LFO for arpeggiator-like functionality.




4ms Spherical Wavetable Navigator Eurorack Module Features:

6-channel wavetable oscillator module for Eurorack modular synthesizers
Includes 12 spherical wavetables to play with
Create your own wavetables from incoming audio or on your computer with the free SphereEditor software
Save up to 108 custom wavetables for instant recall
Save up to 108 module presets for recalling complete module states
Each oscillator features independent 1-volt/oct pitch CV and waveform selection
6 LFOs/envelopes for expansive modulation capabilities
Each oscillator channel can be quantized to major, minor, or harmonic scales, or semitones
Temperature-stabilized, autocalibrating pitch-tracking circuitry for in-tune performance in any application
Stereo audio outputs can also be used as dual mono outputs





Tech Specs

Type: Wavetable Eurorack Module
Depth: 0.98" (25mm)
HP Size: 26HP
Power Usage: +12V/185mA, -12V/30mA, +5V/60mA (with LED PWR set to 5V)
Power Supply: Requires Eurorack case and power supply
Manufacturer Part Number: SWN

www.music-blvd.com $599
