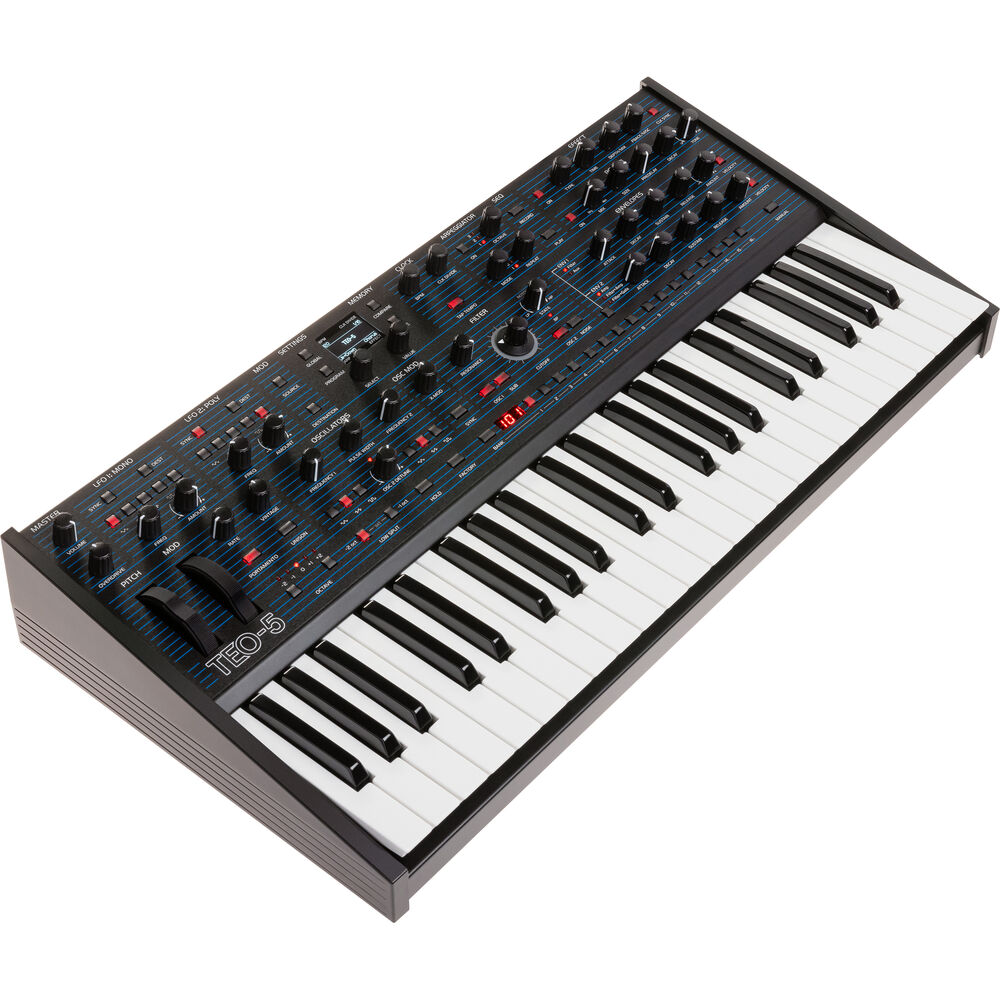

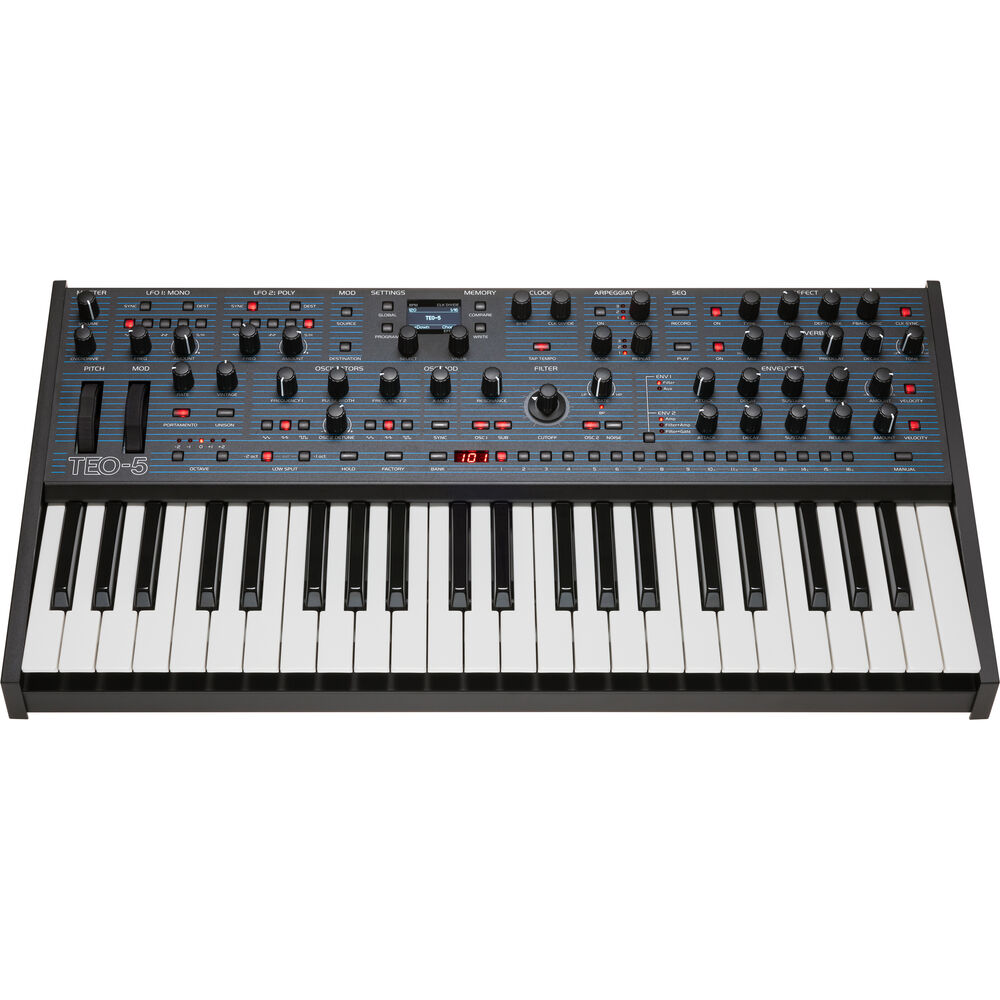

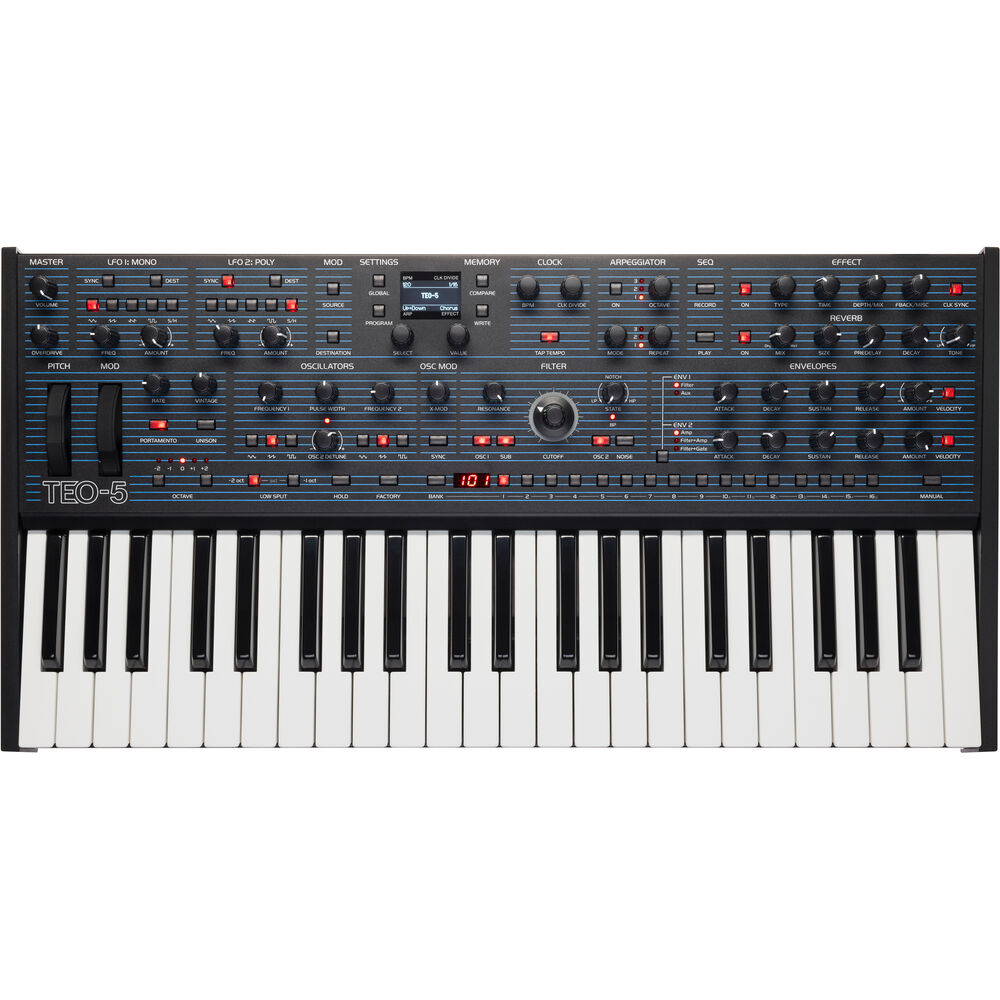

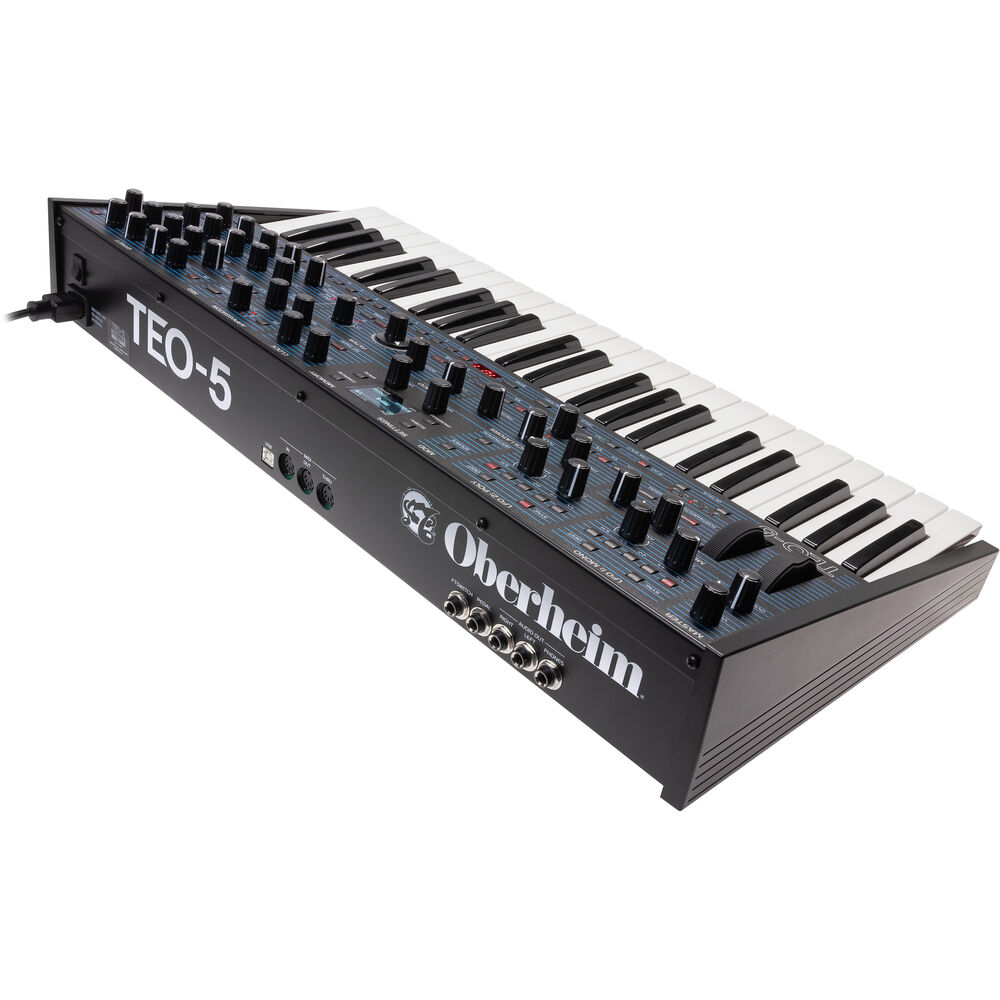

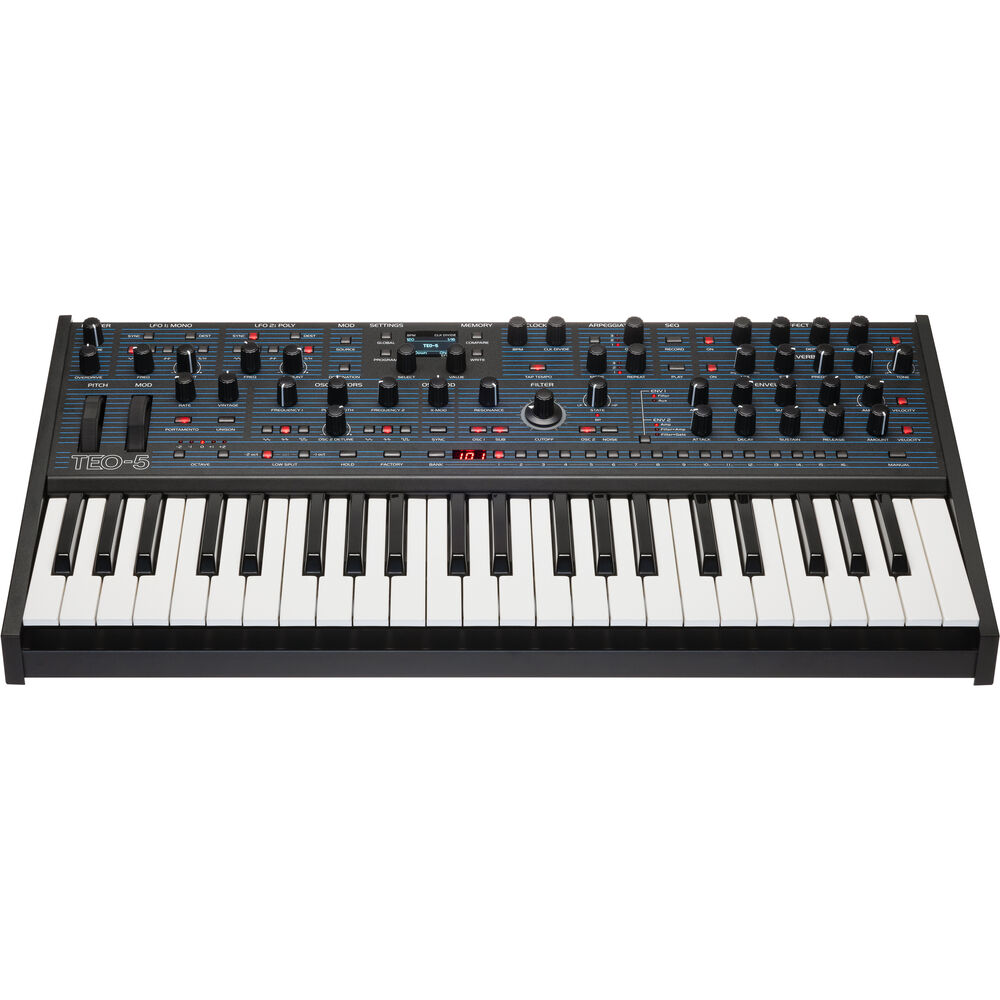

Oberheim TEO-5 Compact Polyphonic Analog Synthesizer

5-Voice Polyphonic Analogue Synthesizer

• Semi-weighted Fatar keyboard with 3.5 octaves, 44 keys with channel (mono) aftertouch with bipolar amount
• VCO/VCF based
• 2 x VCO and sub-oscillator per voice
• Selectable waveforms for each oscillator: triangle, sawtooth, variable pulse
• Oscillator 1 syncs with Oscillator 2
• Classic SEM filter with selectable band-pass mode
• Bi-polar filter envelope value
• Velocity modulation of the envelope
• State control changes continuously from low-pass to notch to high-pass
• Five-stage (DADSR) envelope generator
• 5 Waveforms: Triangle, sawtooth, inverted sawtooth, square and random (sample and hold)
• LFO tempo synchronisation
• Initial Amount setting
• Freely assignable mod targets
• Arpeggiator
• Step sequencer with 64 steps
• 2x 24-bit / 48 kHz digital effects (reverb, delay, chorus, flanger and more)
• 256 User and 256 factory presets in 32 banks of 16 programs each
• Pitch and mod wheel
• Dedicated X-Mod control on the front panel
• Display
• Integrated power supply unit 100-240 V AC 50/60 Hz
• Line outputs: 2 x 6,3 mm jack
• Stereo headphone output: 6.3 mm jack
• Foot switch input: 6.3 mm jack
• Sustain pedal input: 6.3 mm jack
• MIDI In/Out/Thru
• USB
• Dimensions (W x D x H): 635 x 324 x 112 mm
• Weight: 7.7 kg
