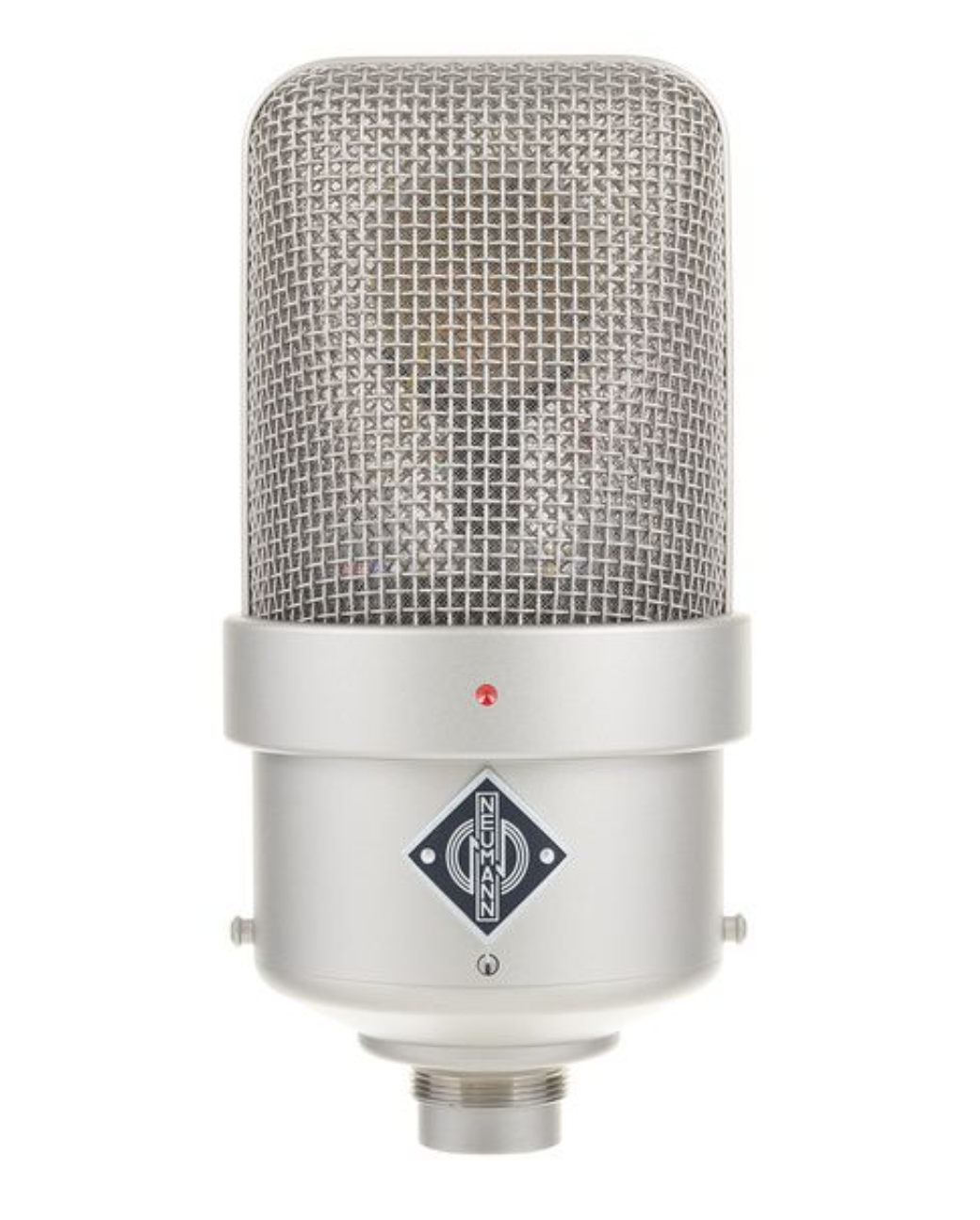

Neumann M 49 V Set Large-Diaphragm Tube Microphone

Large Diaphragm Tube Microphone

• Acoustic mode of operation: Pressure gradient transducer
• Variable polar pattern: omnidirectional, figure-of-eight, cardioid
• Frequency response: 40 - 16,000 Hz
• Nominal impedance: 200 Ohm
• Nominal load impedance: 1000 Ohm
• Field tranmission factor: 6.5/8/10 mV/Pa ± 1 dB -43.5/-42/-40 dBV
• Replacement noise level, A-weighted: 73/74/75 dB
• Replacement noise level, A-weighted: 21/20/19 dB-A
• Sound pressure level for k < 0.5%: 125 dB (cardioid)
• Microphone dimensions (length x diameter): 163 x 80 mm
• Weight microphone: 800 g

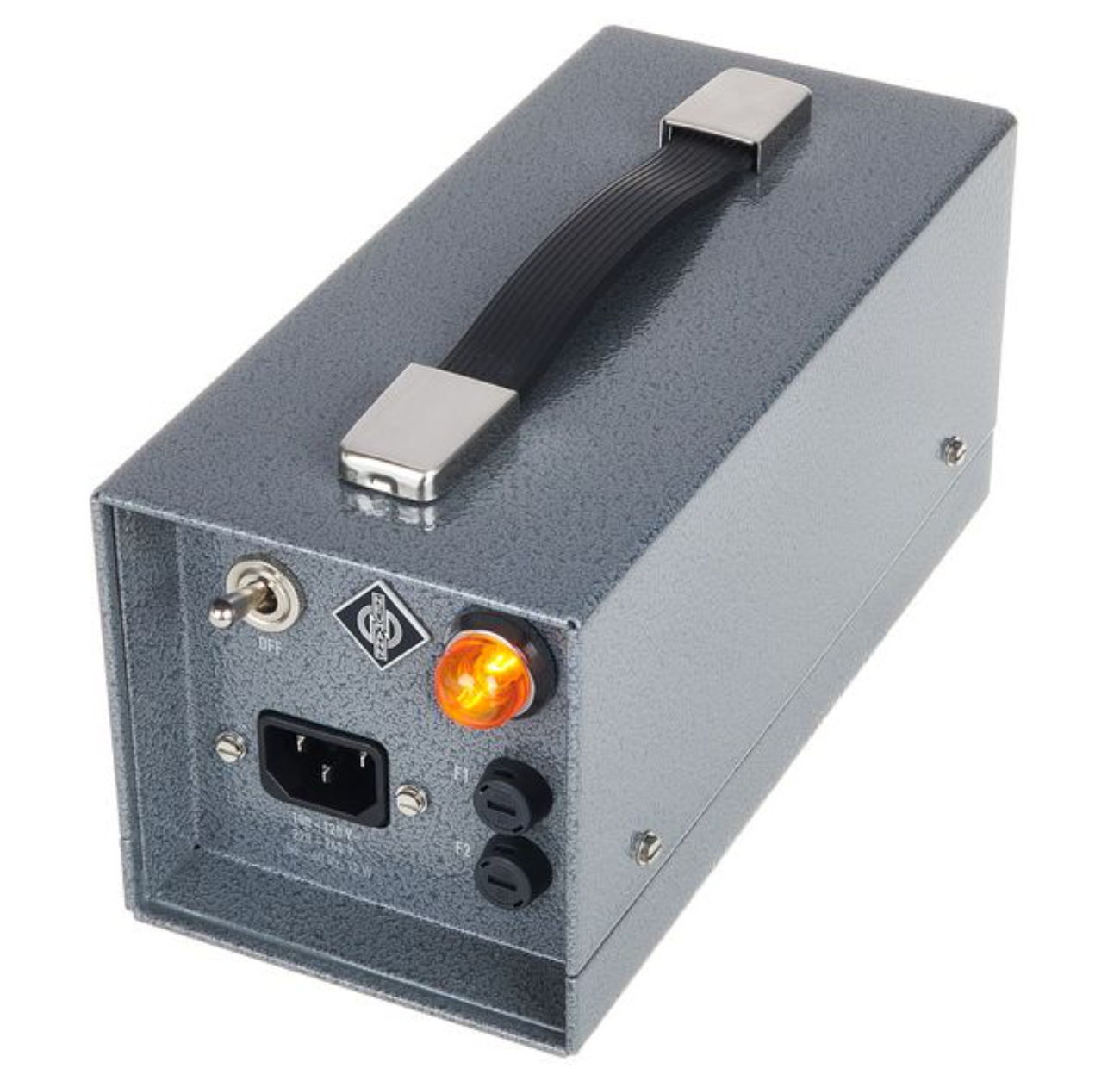

• Dimensions NM V polar pattern control unit (W x H x D): 100 x 120 x 220 mm
• Weight NM V polar pattern control unit: 2.2 kg

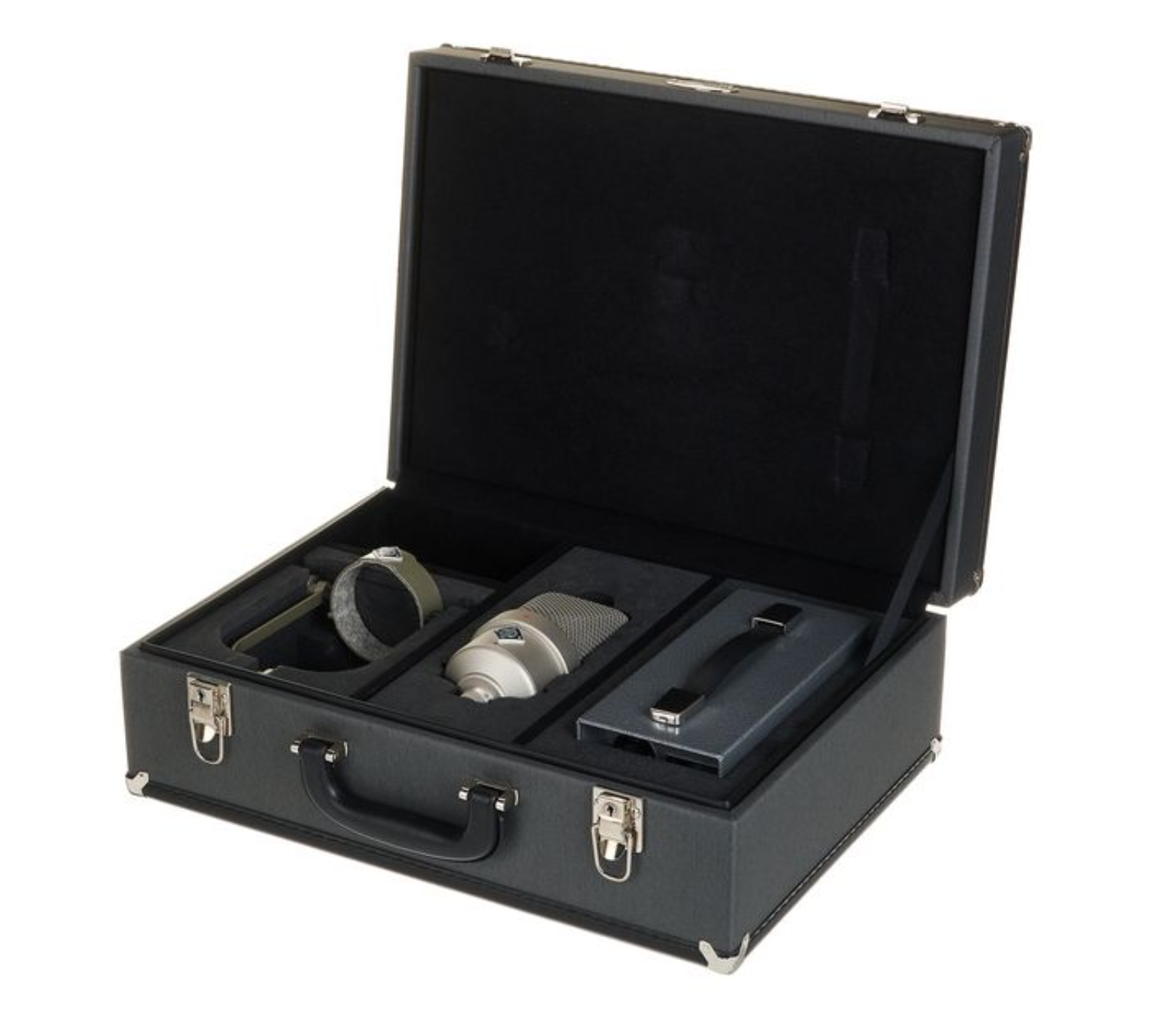

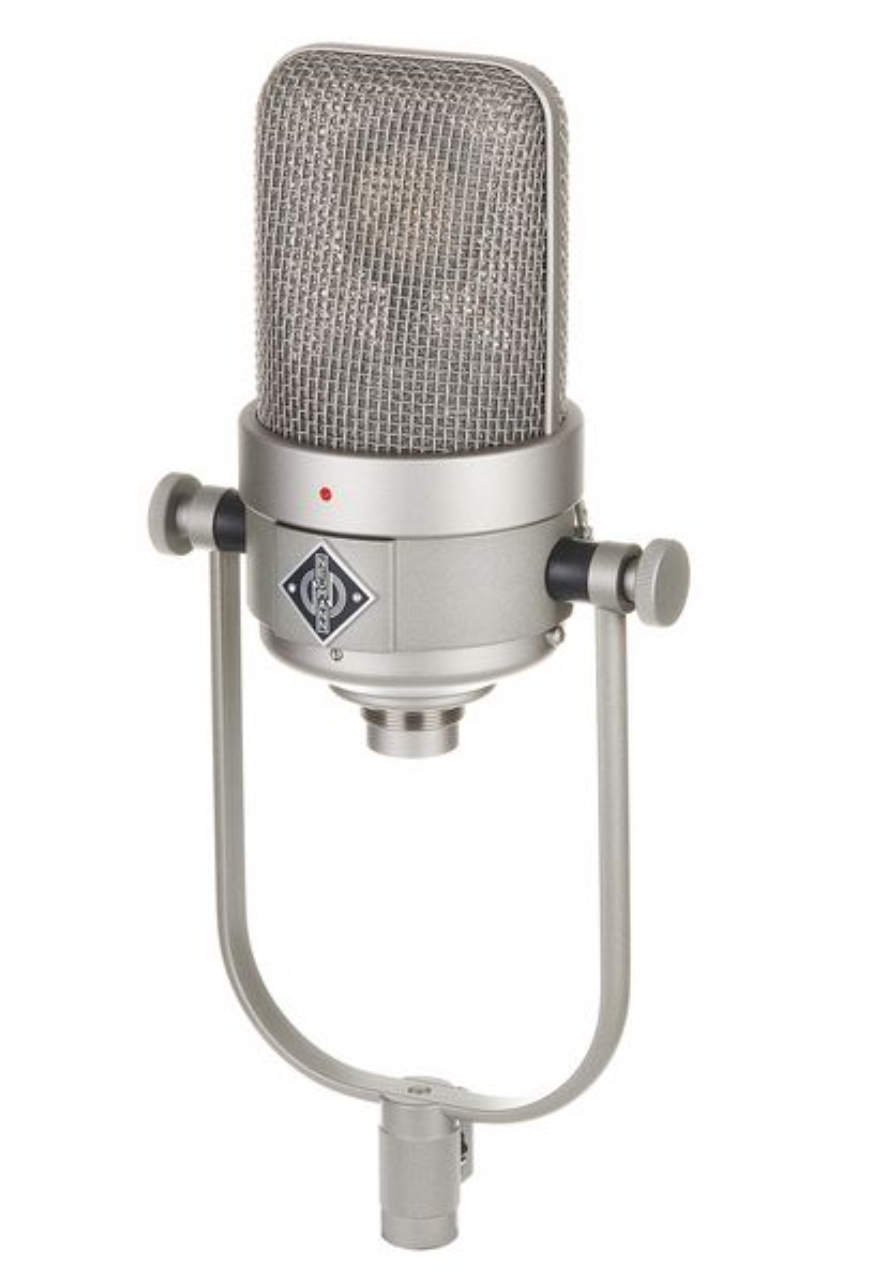

• Incl. NM V polar pattern control unit, KC5 cable and MZ 49A oscillating mount
