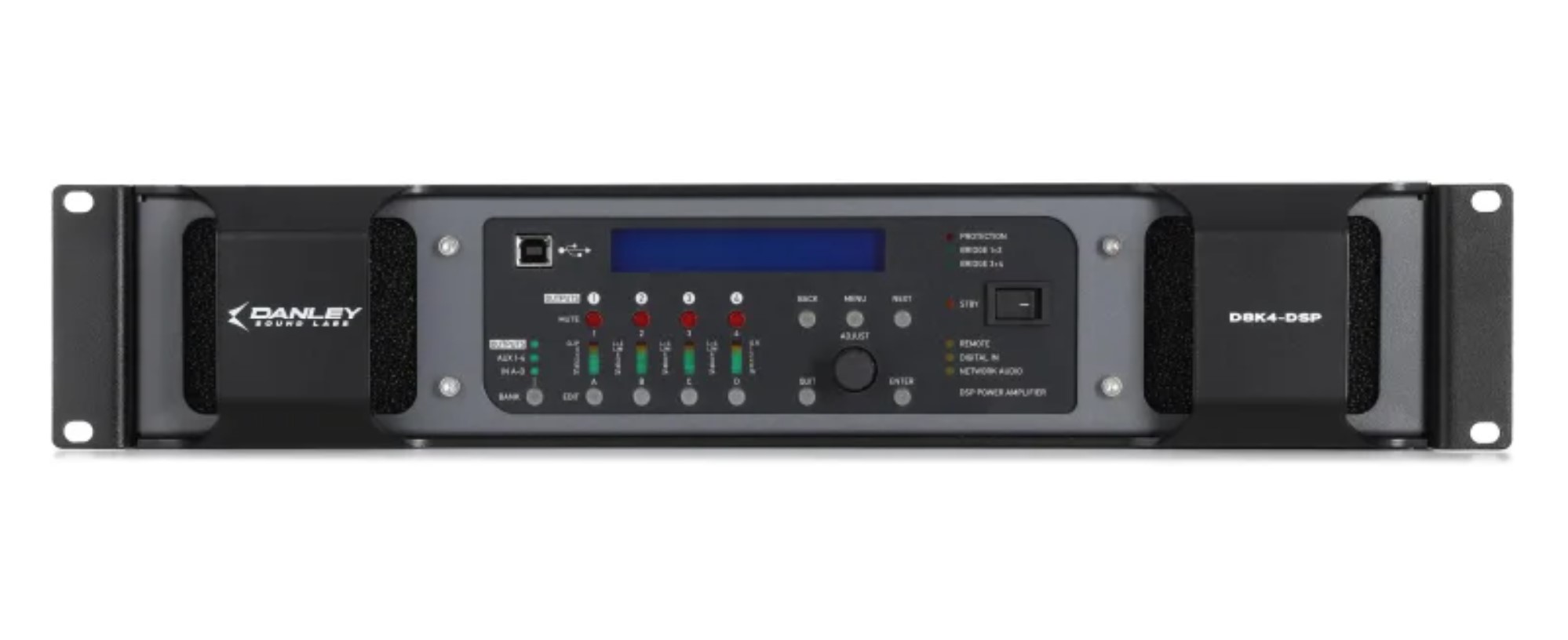

Tom Danley D8K4-DSP 4,000W 4-channel Power Amplifier

Super-efficient Class D design

Thanks to its super-efficient Class D power stage, the D8K4-DSP delivers high-output power, high efficiency, and low heat generation. Not only do you get studio-quality, 24-bit/96kHz conversion, but you also get access to a state-of-the-art processing suite that certifies industry-leading sound in a myriad of applications.

Advanced protection circuitry

The Tom Danley D8K4-DSP includes advanced protection circuitry that guarantees the safety of your equipment and speakers. The live sound experts here at Sweetwater are impressed with the breadth of this power amplifier's protection features, which include over-current, short-circuit, and thermal protection. The D8K4-DSP also sports a soft-start function to safeguard against inrush current.

Tom Danley D8K4-DSP 4,000-watt 4-channel Power Amplifier Features:

• Class D power stage delivers high-output power, high efficiency, and low heat generation
• Studio-quality, 24-bit/96kHz AD/DA yields unparalleled sound quality
• Supports AES and networked audio for maximum flexibility
• State-of-the-art processing suite certifies industry-leading sound in a myriad of applications
• Advanced protection circuitry includes over-current, short-circuit, and thermal protection
• Soft-start function safeguards against inrush current
• Ideal for live sound, touring, and fixed installations
•

Tech Specs

• Number of Channels:4
• Power Class:Class D
• Watts/Side @ 8 ohms:1000W
• Watts/Side @ 4 ohms:2000W
• Watts/Side @ 2 ohms:2000W
• Watts Bridged:4000W @ 8 ohms
• Inputs:4 x XLR (aux), 4 x 3-pin Euroblock (speaker backup)
• Outputs:4 x speakON, 2 x XLR (AES C&D), 2 x XLR
• Data I/O:3 x RJ45 (control, audio network 1, 2), 1 x USB Type B, 1 x 3-pin Euroblock (RS485), 1 x 6-pin Euroblock (GPIO)
• DSP:Yes
• Frequency Response:20Hz-20kHz
• THD:<0.1%
• Rack Spaces:2U
• Power Source:PowerCon AC Cable (20A outlet required)
• Height:3.46"
• Depth:16.85"
• Width:19.89"
• Weight:23 lbs
• Manufacturer Part Number:D8K4-DSP
