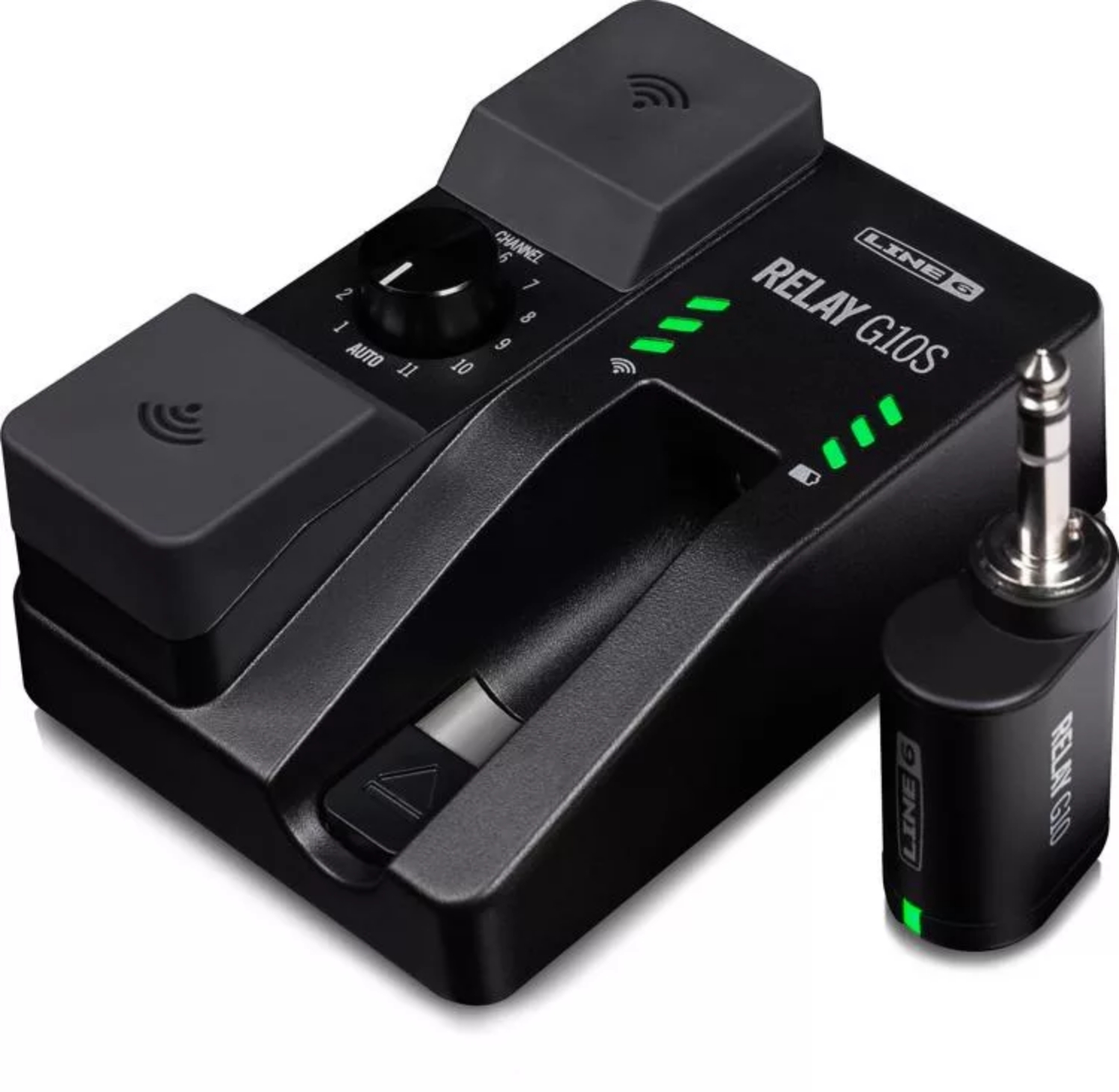

Line 6 Relay G10S Digital Wireless Guitar System

Wireless Guitar Made Easy
Looking to cut the cord between your axe and your amp? The Line 6 Relay G10S makes it easy. Ideal for guitar, bass, and any other instrument with a high-impedance output, this digital wireless system connects your gear up to 130 feet away via frequency-agile, multiple-redundant, 24-bit digital audio. Automatic or manual frequency selection gives you plenty of setup options, and wireless signal and battery level LED indicators make sure you stay up and running. Get your sound anywhere you need it with an XLR direct output. Emulate the sound of a 10- or 30-foot cable with the Cable Tone switch. You’ll appreciate the Relay G10S’s ease of use, and with up to eight hours of continuous operation, battery life is never an issue.











Instrument wireless made blissfully simple
Other than switching it on, the Relay G10S is as easy to use as an instrument cable — no setup fuss, no fumbling with menus, just plug-and-play simplicity. You don’t even need to mess with batteries, thanks to the built-in Li-ion battery onboard the transmitter, which plugs into the dock to charge. And since you get up to eight hours of run time with 200 hours of standby time, you don’t even need to panic about charging your Relay G10S mid-show. The guitarists here at Sweetwater appreciate the intuitive ease of use afforded by the Relay G10S.






Cable Tone: the sound of a cable — without the cable!
You don’t want to be tethered to your amp, but that cable sure adds an undeniable character to your tone, doesn’t it? Excellent news! The G10S sports Line 6’s selectable Cable Tone technology, which simulates the subtle tonal effects of a standard 10- or 30-foot cable, giving you the freedom to rock from stage left to stage right — while sounding just like you’re wired.




Line 6 Relay G10S Digital Wireless System Features:

Simple, affordable, and reliable instrument digital wireless system with 130' range
Automatic setup means you never have to mess with menus or settings
Manual frequency selection for using specific channels
Redundant 24-bit digital wireless provides highly dynamic, clear, and reliable transmission
Transmitter runs for up to 8 hours per charge and charges in the docking receiver
Wireless signal and battery level LED indicators
XLR direct out for getting your sound anywhere you need it
Cable Tone switch emulates the sound of a 10' or 30' cable
Ideal for guitar, bass, or other instruments with high-impedance outputs






Worry-free Wireless!
We wanted you to know that all of the wireless systems you see here – and all of the wireless systems available at Sweetwater – are 100% compliant with the Federal Communication Commission's new rules governing wireless systems. You can be confident that these systems will work within the FCC's currently permitted frequency/power ranges. Please be aware that systems operating in the 617-652 MHz or 663-698 MHz range are now operating outside the FCC's new guidelines. To find out more, visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones or give them a call at (888) CALL-FCC.




Tech Specs

Configuration: Wireless Instrument System
System: Simultaneous Channels: 10 Channels
System: Analog/Digital: Digital
System: Frequency Range: 2.4 GHz
System: Operating Range: 130 ft. Line-of-sight
System: Channel Selection: Auto/Manual
System: Frequency Response: 10Hz-20kHz
Instrument Cable: Connector 1: 1/4"
Transmitter: Form Factor: Plug in
Transmitter: Dynamic Range: >110dB (A weighted)
Transmitter: Battery Type: Built-in Rechargeable
Transmitter: Battery Life: 8 hours
Transmitter: Connector: 1 x 1/4"
Receiver: Antenna Type: Fixed
Receiver: Displays: LED
Receiver: Type: Pedal
Receiver: Outputs: 1 x XLR, 1 x 1/4"
Manufacturer Part Number: 99-128-0305









Transmission Range
Up to 130.0' / 39.6 m Line of Sight (May Vary Due to Local Conditions)


Battery Life (approx.)
Approximately 8 Hours (Internal Rechargeable Battery)


Frequency Scanning
Yes


Support for Multiple Transmitters
No


Support for Multiple Instruments
Auto/Manual Channel Switch


Connections
Transmitter: 1/4" Male Unbalanced Input Plug Receiver: 1/4" Output and Balanced XLR DI Output


Power
9 VDC Barrel 500 mA 5 VDC 1 A, MicroUSB


Sleep Mode
Automatically Activated after 4 Minutes Without Any Audio Input

Automatic Wake-Up when Signal is Detected
Extends Standby Time up to 200 Hours



Controls
Channel Selector: Auto and 1-11

Cable Tone: Off/10'/30'



System Latency



Antennas
Internal Antennas


Frequency Response
10 Hz to 20 kHz


Dynamic Range
>112 dB


RF Carrier Frequency
2.4 GHz


Operating Modes
RF2


Compatible Channels
Up to 11 (Manual), Up to 14 (Automatic)


LED Display
Transmitter: Power, StatusReceiver: Connection Status, Transmitter Battery Life


Power Supply
DC-1g Power Supply (9 VDC)


Dimensions
Not Specified by Manufacturer


Weight
Not Specified by Manufacturer






Packaging Info


Package Weight
2.36 lb


Box Dimensions (LxWxH)
14.0 x 9.0 x 3.0"





Shipping approx. 4 lbs.
