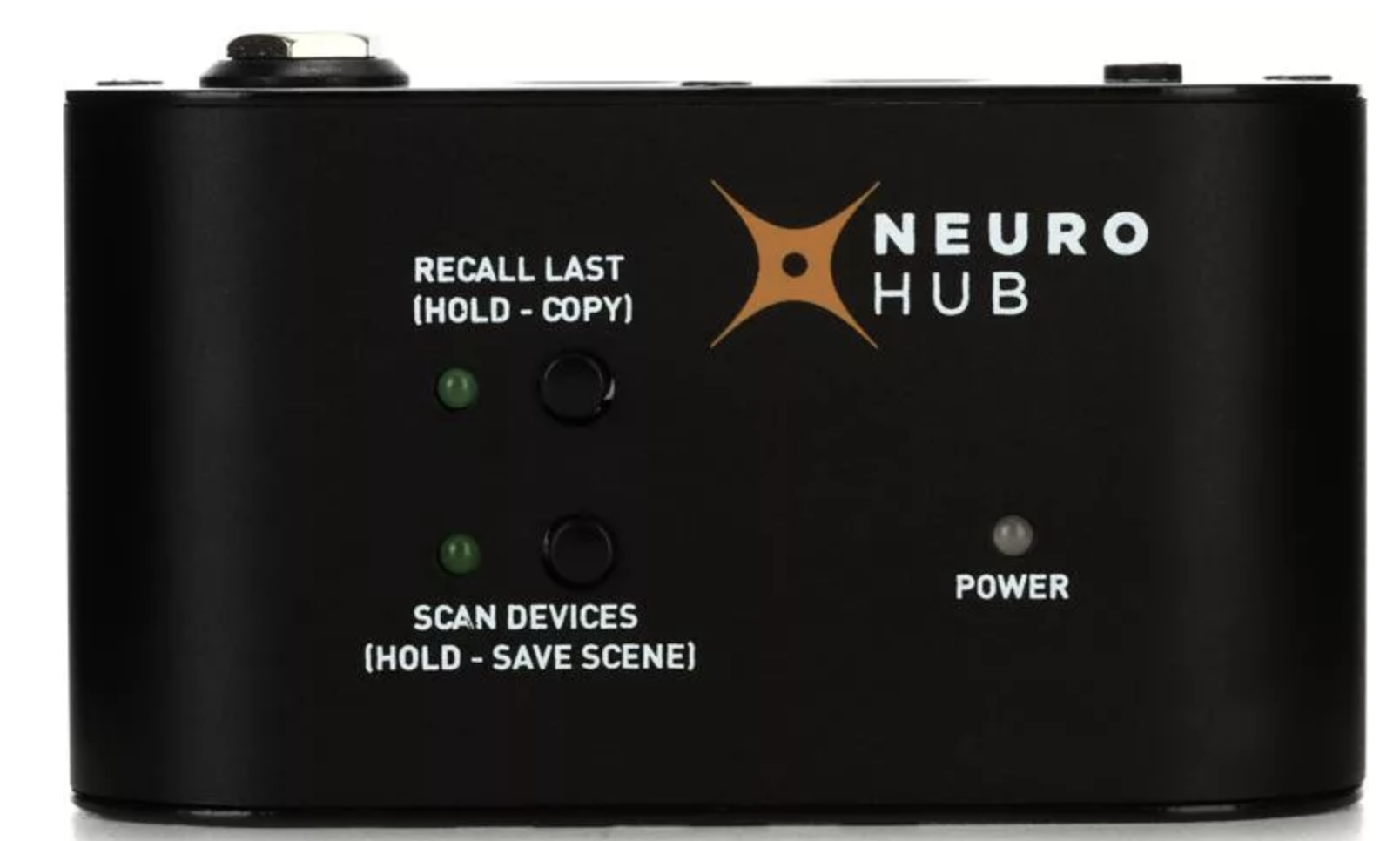

Source Audio Neuro Hub Pedal

Full-featured MIDI Hub

Create a multi-pedal system with 1-step preset recall

The Neuro Hub makes building a multi-pedal system with 1-step preset recall easy. Its connections are clearly laid out: a 5-pin MIDI In and MIDI Out/Thru, along with a TRS expression pedal input, Sensor input, mini USB port, and five Multi-Function outputs. Hooking everything up is easy — connect a Dual Expression Pedal, Reflex Universal Expression Pedal, or Hot Hand 3 Wireless Effect Controller to the Neuro Hub. After that, assign external control to any pedal on your board. Each preset can contain any number of external control configurations, including simultaneous Hot Hand and Expression Pedal control of multiple parameters on multiple pedals.

Source Audio Neuro Hub Features:

• MIDI hub for One Series and Soundblox 2 pedals
• Brings full MIDI functionality to up to 5 pedals
• Save and recall up to 128 multi-pedal presets via MIDI Program Changes
• Access, edit, and save presets via USB port to your Mac or PC
• Easy to use — just dial in your stompbox’s parameters, hold the Save Scene button, and you’re done
• Connections are clearly laid out

Tech Specs

• Type:Guitar Pedal MIDI Hub
• Presets:128 Preset Scenes
• Pedal Inputs:1 x 1/8" TRRS (sensor in)
• Pedal Outputs:5 x 1/8" TRRS (multi-function out)
• MIDI I/O:In/Out/USB
• USB:1 x Mini-B
• Other I/O:1 x 1/4" (expression pedal)
• Compatibility:Source Audio / Soundblox 2
• Software:Hub Manager
• Power Source:9V DC power supply (included)
• Height:1.4"
• Width:3.8"
• Depth:1.4"
• Weight:0.37 lbs.
• Manufacturer Part Number:SA164
