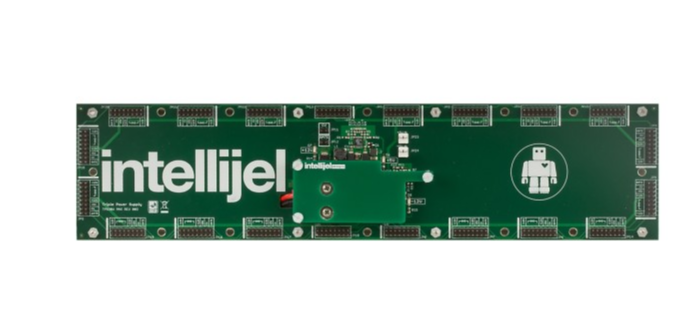

Intellijel Designs TPS30 MAX (Triple Power Supply) – 30W 3U / 6U Busboard

INTELLIJEL TPS30 MAX

Intellijel’s TPS30 MAX is an ideal low noise, integrated switching power system for a Eurorack modular setup. This power supply has been painstakingly constructed to offer an optimal amount of power to even the most advanced digital modules, short circuit protection, and overvoltage protection. Additionally, it is compatible with Intellijel’s 84HP 4u and 7u cases.

TPS30 MAX FEATURES

• 30 Watt integrated switching power supply
• Low impedance star distribution due to 4 layer PCB
• +12V output at 1.5A, -12V output at 1.5A, +5V output at 1A
• Triple 120° phased controller for low induced noise
• Output short circuit protection and foldback current limiting
• Output overvoltage protection from transient overshooting
• Soft start for controlled start up operation
• +/-1% output voltage accuracy
• two 2-pin molex headers for access to +5V bus (great for attaching special accessories like the USB Power 1U module)
• Fits comfortably in an 84HP  3U case or 6U case and larger
• 34cm wide  x 8cm tall and max height of 20mm
• Mounting holes can be used with 0.157″ / 4mm PEM snaps for quick install
