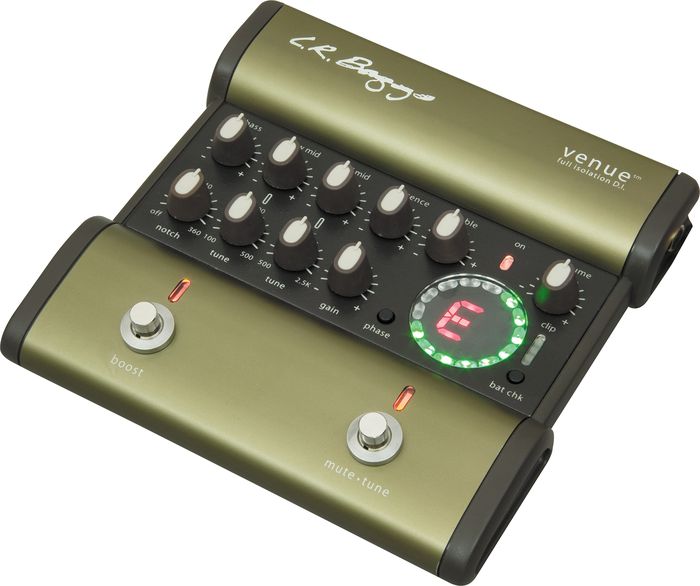

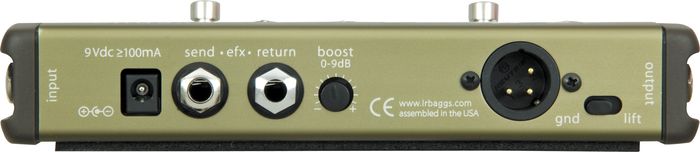

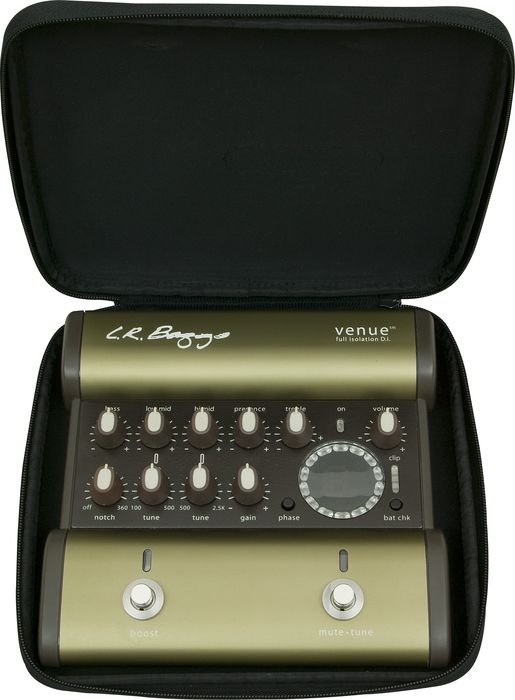

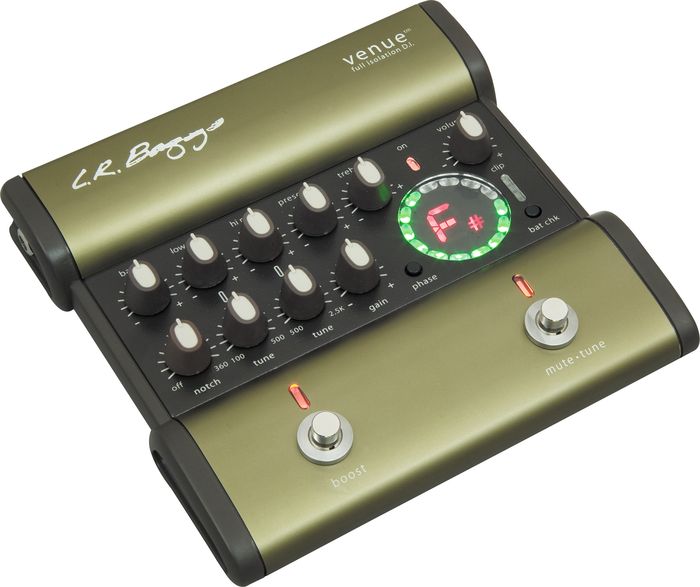

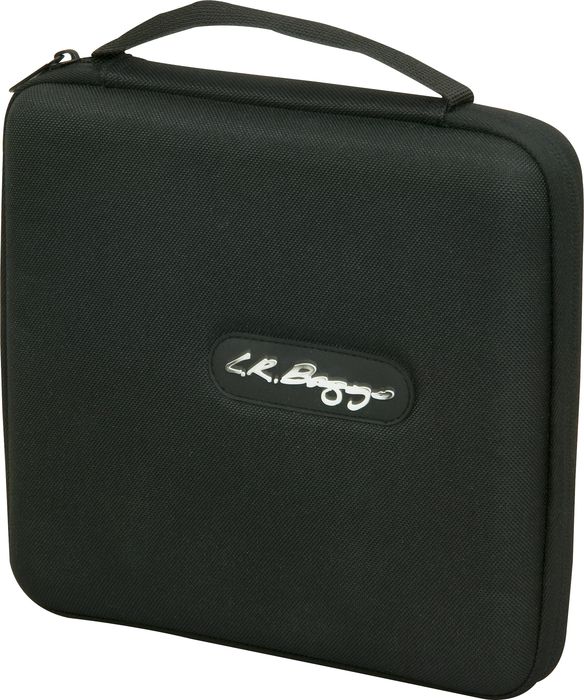

LR Baggs Venue D.I. Direct Box

Get the perfect acoustic tone.




The Venue D.I. is a discrete acoustic guitar preamp that combines a transformer-coupled D.I. output for maximum isolation, an EQ specifically tuned for acoustic guitars, a variable boost control to compliment your playing styles, and a chromatic digital tuner to help you stay in tune. Combining these features from at least three foot pedal boxes into one pro box, the new Venue DI brings a new level of fidelity, confidence and usefulness to performing acoustic musicians. The Venue DI is the most comprehensive and best sounding tool ever to tame the surliest stage. 1/4" input Input Impedance 10 mOhms Preamp Gain -12dB to +26dB Input Level -25dBv to +1.8dBv (.053Vrms to 1.23Vrms) EQ Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave Bass +/- 12dB @ 90Hz Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz Presence +/- 12dB @ 3kHz Treble +/- 12dB @ 10kHz Effects Loops Send Level 0 dBv (0.707Vrms) Output Impedance 600 Ohms Return Level 0dBv (0.707Vrms) Maximum before clipping Input Impedance 80 kOhms D.I Out Output level -1dBv (0.88Vrms) Balanced Line Out Output level -1dBv (0.88Vrms) Un-balanced Output impedance 200 Ohms
LR Baggs Venue D.I. Direct Box Features:

High-end audio transformer coupled XLR for full immunity from ground loops
100 percent Discrete circuitry and EQ for sweet transparent and ultra quiet sound
Adjustable gain to handle most passive and active inputs
Garret Null notch filter to non-destructively handle feedback
Full chromatic tuner with footswitch mute/tune function
Bomber construction with metal shaft potentiometers
Phase inversion for best sound and feedback control
Works with 9V battery or DC adapter (not included)
Tunable low and high mid controls
Adjustable solo boost foot switch control
Real VU meter to accurately set gain
4-segment battery status gauge
Series effect loop

Clean up your stage and your sound with the Venue DI box.
LR Baggs Venue D.I. Direct Box Specifications:

1/4" input
Input Impedance 10 mOhms
Preamp Gain -12dB to +26dB
Input Level -25dBv to +1.8dBv (.053Vrms to 1.23Vrms)
EQ
Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave
Bass +/- 12dB @ 90Hz
Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz
Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz
Presence +/- 12dB @ 3kHz
Treble +/- 12dB @ 10kHz
Effects Loops
Send Level 0 dBv (0.707Vrms)
Output Impedance 600 Ohms
Return Level 0dBv (0.707Vrms) Maximum before clipping
Input Impedance 80 kOhms
D.I. OUT
Output level -1dBv (0.88Vrms) Balanced
Output impedance 600 Ohms (Transformer coupled)
LINE OUT
Output level -1dBv (0.88Vrms) Un-balanced
Output impedance 200 Ohms
