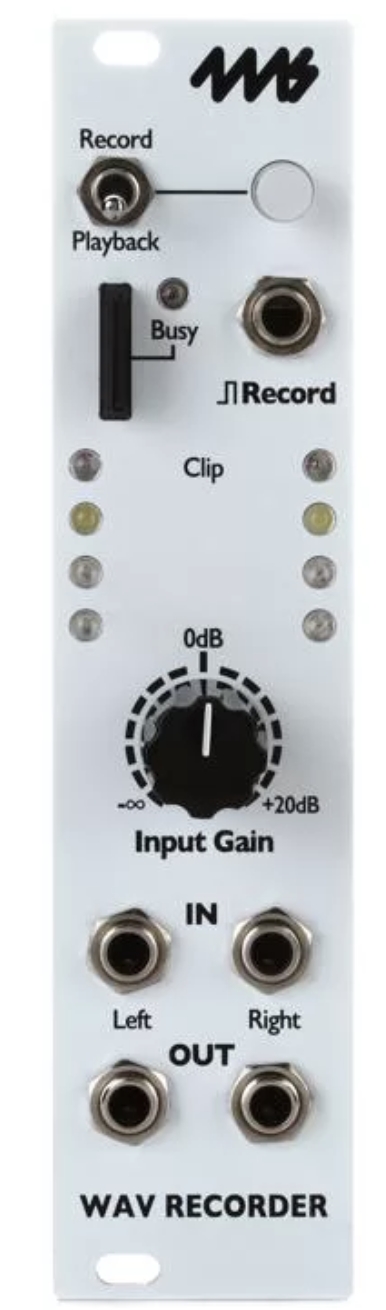

4ms WAV Recorder Eurorack Module

WAV Recorder and Playback for Eurorack
Add a high-quality sampling module to your Eurorack rig, with the 4ms WAV Recorder module. Capture line- or modular-level audio at up to 24-bit/96kHz resolution, allowing you to record sounds from synths, phones and tablets, other Eurorack modules, and so on. And because you can monitor the input signal without recording, synthesists at Sweetwater also like using the WAV Recorder module as a type of preamp for boosting signals. Playback and Record can be engaged with a button press, or via trigger input. And your sampling time is only limited by the size of your micro SD card (16GB card included). Whether you want to sample individual sounds or record entire performances, the 4ms WAV Recorder Eurorack module is a smart solution.






4ms WAV Recorder Eurorack Module Features:

Stereo sampling module for Eurorack modular synthesizers
Includes 16GB micro SD card for sample storage and playback
Record high-fidelity, low-noise audio at up to 24-bit/96kHz resolution
Formats include stereo and mono, 16- or 24-bit, and 44.1/48/96kHz
Gain knob and LED meter for managing incoming signal level
Accepts modular- and line-level signals
Playback and Record can be engaged with a button press, or via incoming trigger signal
Connects to LISTEN modules for direct recording of the main output
Size: 6HP wide, 25mm deep
Power usage: 112mA (+12V), 12mA (-12V)





Tech Specs

Type: WAV Recorder Eurorack Module
Analog/Digital: Digital
Sampling: Capture Loops
Storage: MicroSD Card Slot
Analog Inputs: 2 x 1/8"
Analog Outputs: 2 x 1/8"
Depth: 0.98" (25mm)
HP Size: 6HP
Power Supply: Requires Eurorack case and power supply
Manufacturer Part Number: WAVREC
