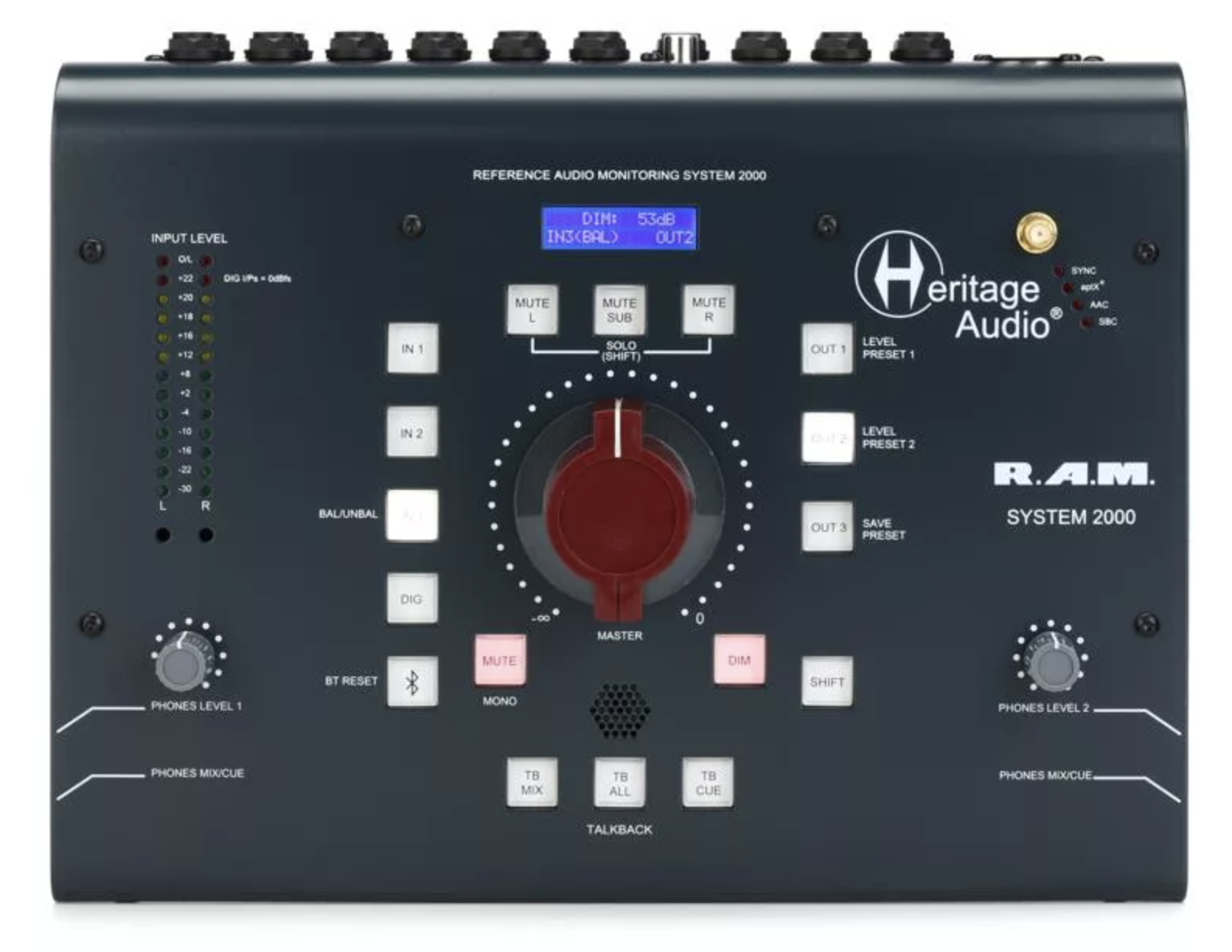

Heritage Audio RAM System 2000 Desktop Monitoring System with Bluetooth

Heritage Audio RAM System 2000 Features:

• Desktop-format monitor controller with classic looks
• Designed for the studio that needs enhanced, mastering-grade stereo monitoring capabilities
• All functions on high-quality illuminated, engraved buttons
• 64-step relay ladder attenuation for master level control in 1dB steps
• 3 pairs of +4dBu balanced analog inputs (input 3 is configurable for -10dBu unbalanced signals)
• Independent stereo Cue I/O for cue-mix distribution to artists
• S/PDIF coax input with Burr-Brown 24-bit/192kHz D/A conversion
• Pro-audio-quality Bluetooth input for easy mobile device integration
• 3 stereo outputs
• Independent Mix output (pre-fader; follows input)
• Independent subwoofer output facilitates sub sharing between different speaker pairs
• Dim function; Mute/Solo for individual speakers
• 2 user-assignable preset levels for easy recall of common settings
• Built-in talkback with console-style management, including TB to Cue, TB to Mix, and TB to All
• 2 high-level, ultra-high-current, audiophile-grade diamond-buffer-based headphone amplifiers, capable of driving any hi- or lo-Z headphones without coloration or noise
• Headphone source selectable between mix and cue signals
• State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
• All gold-plated relay-based switching for every function, including inputs and outputs

Tech Specs

• Input Channels:3 x Stereo Sources (analog), 1 x Digital Source, 1 x Bluetooth Source
• Output Channels:3 x Stereo Monitors
• Analog Inputs:6 x 1/4" (3 x stereo), 2 x 1/4" (cue)
• Analog Outputs:6 x 1/4" (3 x stereo), 2 x 1/4" (mix out), 1 x 1/4" (sub out), 2 x 1/4" (cue)
• Digital Inputs:1 x Coax (S/PDIF)
• Headphones:2 x 1/4"
• Bluetooth:Yes
• Talkback:Yes, built-in mic
• A/D Resolution:24-bit/192kHz
• Form Factor:Desktop
• Power Supply:5-pin External power supply
• Manufacturer Part Number:RAMSystem2000
