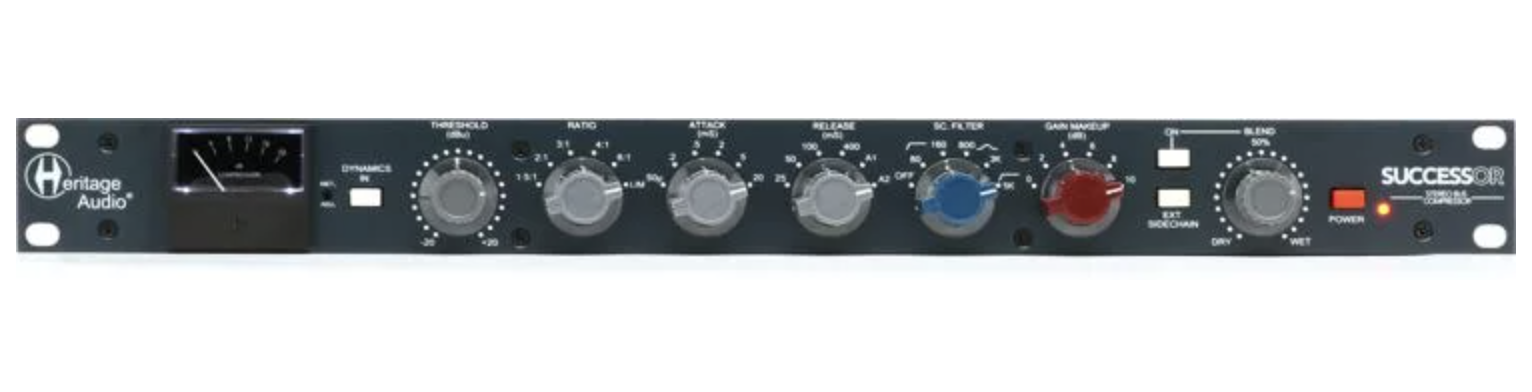

Heritage Audio SUCCESSOR Stereo Bus Compressor

Impressive specs yield superior sonic results

Rocking an all-discrete, Class A signal path, the Heritage Audio Successor is well spec'd with stepped controls for easy recall, flexible sidechain filter options, and ultra-fast attack and release times not typically found in vintage designs. The faster attack and release options permit more flexible settings, including FET-like behavior and volume maximizing without transient artifacts. Another modern feature we appreciate is the Blend control for instant parallel compression. The Successor is also equipped with Carnhill transformer-coupled balanced inputs and outputs, ready to add warmth, girth, and authority to any sound source, for some of the sweetest vintage-flavored compression we've heard in this price range at Sweetwater.

• Frequency Response: 10Hz–30kHz (±1dB)
• Compression threshold: From -20 to +20dBu, on stepped pot
• Compression ratios: 1.5:1, 2:1, 3:1, 4:1, 6:1, Limit, on stepped switch
• Attack: Selectable from 50us (ultra-fast, great for slamming drums) to 20mS (slow, good for maintaining natural dynamic range in full mixes)
• Attack Values: 50uS, .2mS, .5mS, 2mS, 5mS and 20mS, on stepped switch
• Release: Selectable from 25mS (ultra-fast) to automatic times.
• Release Values: 25, 50, 100mS, Auto1 and Auto 2
• Sidechain filter: Complex filter comprising 3 second order highpass filters (at 100, 300, and 5000Hz) and 2 bell-type pre equalizers at 800 and 3000Hz. Sidechain has a smooth 50Hz roll-off which is added to the sidechain filter selector, preventing sub low frequencies from riding the compression
• Gain Makeup: Up to 10dB in 2dB steps on stepped, 6-way switch
• Blend Control: Switchable On/Off, from fully processed sound (Wet) to unprocessed (Dry) on stepped pot
• External Sidechain: Sidechain send and return jacks, switchable On/Off

Heritage Audio Successor Stereo Bus Compressor Features:

• True stereo operation on single controls with matched gain cells for extremely tight left/right tracking and near-zero offset between channels
• Oxford mode compression tracking (loudest signal controls compression)
• Carnhill transformer-coupled balanced inputs and outputs for rich character and vintage vibe
• Vintage-style Class A output stages bring the coveted sound of classic British diode-bridge compression to your drum or mix buses
• Diode-bridge based compression favors desirable 2nd-order harmonic distortion characteristics and true vintage tone while eliminating unpleasant odd-order harmonic content
• Ultra-fast attack and release time options not found in vintage designs permit more flexible settings, including FET-like behavior and volume maximizing without transient artifacts
• Versatile sidechain filtering options elaborate on the obligatory highpass filters, introducing mid-band peaking filters and high-frequency compression, allowing bus dynamics shaping heretofore not possible
• Sidechain Send and Return jacks allow for external sidechain signals or further external processing of internal signal
• Blend control offers onboard parallel compression without any external equipment; Blend On/Off button allows for instant comparison in-between wet and dry signals
• Stepped controls for easy settings recall
• High-quality analog Gain Reduction meter

Tech Specs

• Type:Class A Compressor
• Number of Channels:Stereo
• Controls:Threshold, Ratio, Attack, Release, Side Chain Filter, Make up, Blend
• Threshold:-20dB to +20dB
• Ratio:1.5:1 to 20:1
• Frequency Response:10Hz-30kHz (±1dB)
• Inputs:2 x XLR
• Outputs:2 x XLR
• Sidechain I/O:2 x 1/4" (send), 2 x 1/4" (return)
• Side Chain Inserts:Highpass Filter, Mid-band Filter
• Rack Spaces:1U
• Power Source:5-pin Power Supply (included)
• Height:1.75"
• Width:19"
• Manufacturer Part Number:SUCCESSOR

Heritage Audio SUCCESSOR Stereo Bus Compressor

Stereo Bus Compressor, Diode-bridge, with Carnhill Transformer-balanced I/O, Sidechain Filter and Send/Return, and Stepped Controls
