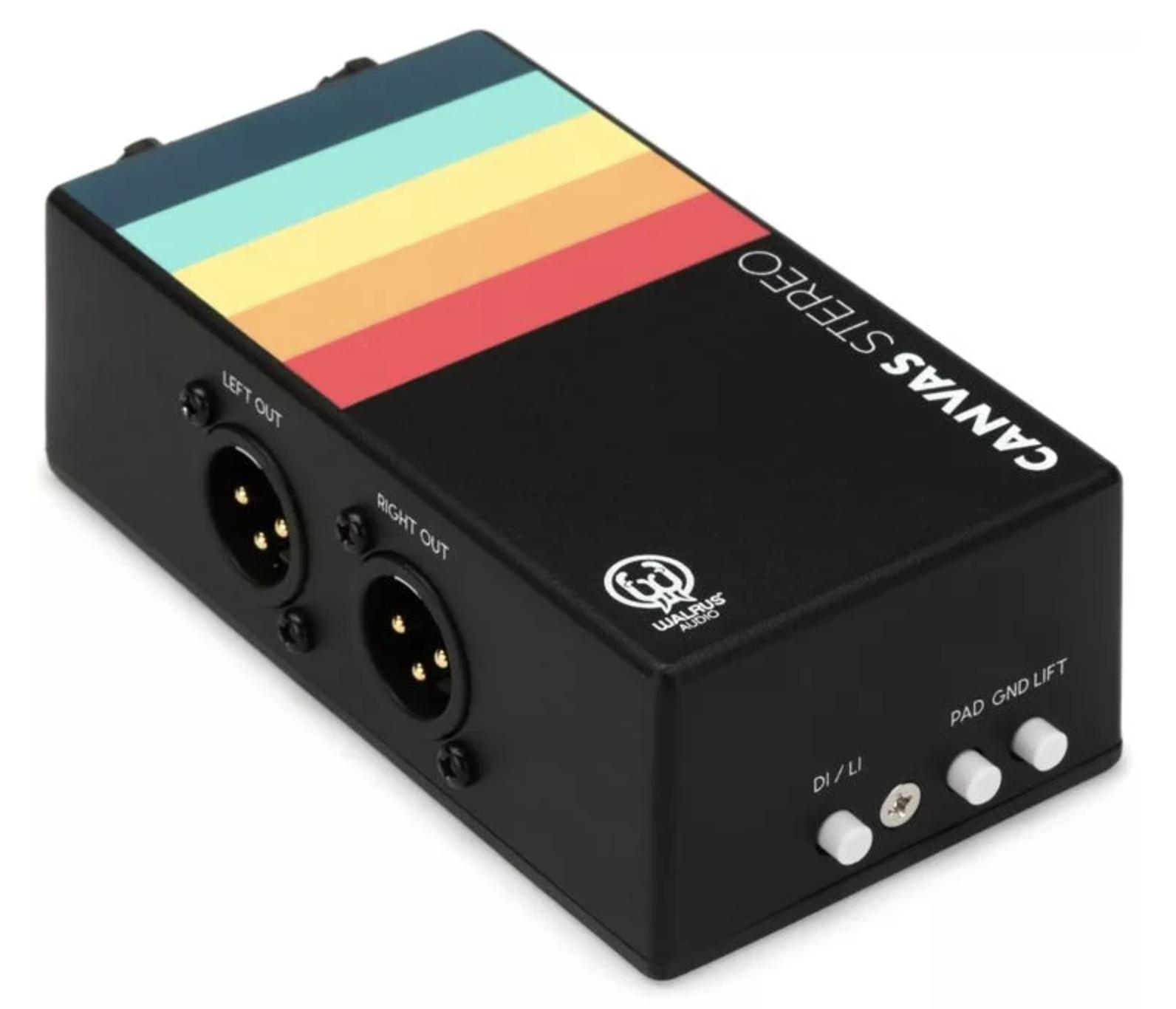

Walrus Audio Canvas Stereo Direct Injection Box

Your New Tonal Canvas

Direct Injection and Line Isolator modes

There are few places that understand the desire to tinker with your gear setup better than Sweetwater — that’s why we love the Canvas Stereo DI box’s ability to switch between DI and LI modes!

Direct Injection mode: If you’re running a high-impedance source like a guitar or bass, the DI mode should be your first choice. This mode functions best with an output impedance of 1,000 ohms and above, and it applies a -20dB pad (-35dB with the regular pad engaged) to properly balance your sound levels.

Line Isolator mode: The LI mode functions similarly to the DI mode, but is better utilized for low-impedance sources like amp/cab sims, keys, synths, and any other source under 1,000 ohms. This mode will require significantly less preamp gain than DI mode.

Walrus Audio Canvas Stereo Direct Injection Box Features:

• Dual 1/4-inch thru and in jacks, with stereo XLR output for easy connection to PA systems and other live-sound setups
• Completely flat 20Hz–20kHz frequency response for an uncolored tone
• Stereo or mono functionality using the sum switch
• -15dB pad to balance your sound and reduce distortion
• DI and LI modes for optimal connection with high- and low-impedance outputs
• DI mode includes a -20 dB (-35dB with the pad engaged) signal reduction
• Ground lift switch that isolates the ground pin to reduce hum
• Custom wound transformers for a full, warm frequency response

Tech Specs

• Type:Passive Direct Box
• Channels:1
• Pads:-15dB
• Ground Lift:Yes
• Inputs:2 x 1/4" (left, right)
• Outputs:2 x XLR (main out), 2 x 1/4" (thru)
• Height:1.39"
• Width:2.6"
• Depth:4.77"
• Manufacturer Part Number:900-1065
