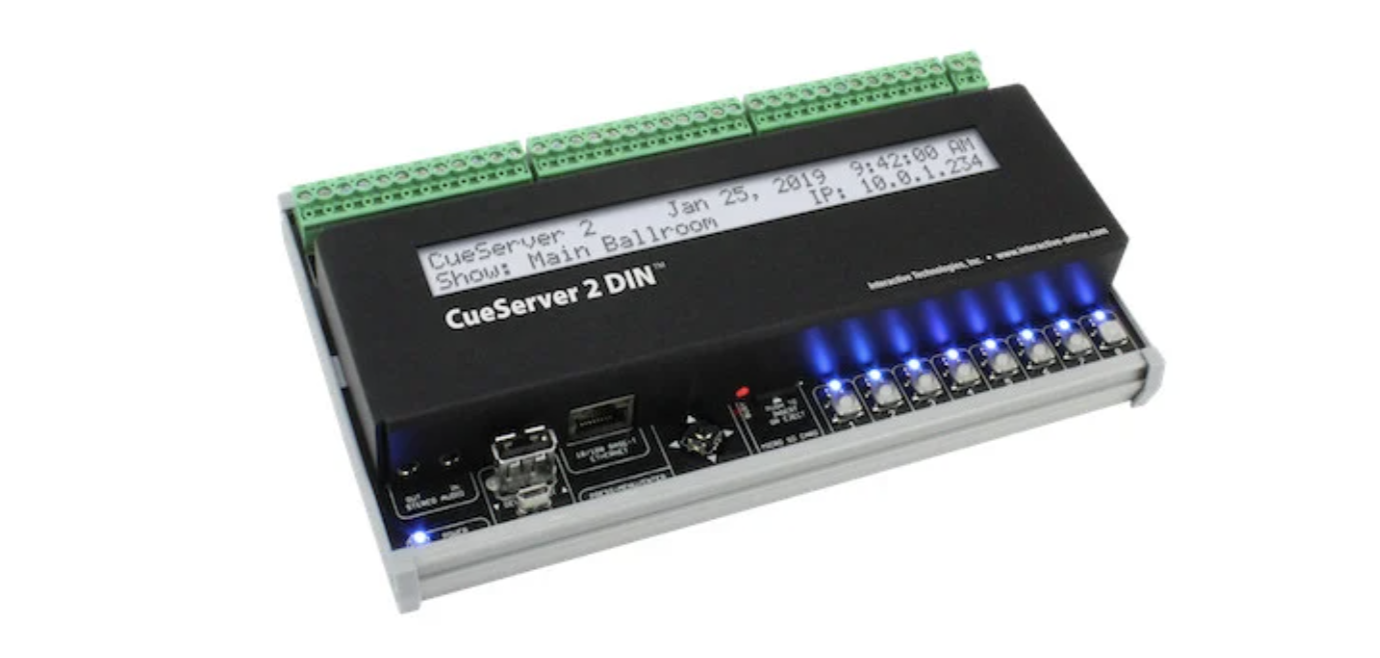

The CS-950 CueServer 2 DIN from Interactive Technologies is a lighting control processor that's housed in an enclosure suitable for standard 35 mm DIN rail, or surface or panel mounting, using the included mounting flanges. The top connections are for power, DMX, contact closures, and digital outputs made using removable terminal blocks, with ethernet, USB, and stereo audio along the bottom edge. The CueServer 2 DIN’s front panel has eight customizable function buttons with fully controllable RGB indicators and a navigation joystick for operation of the onboard LCD menu for basic system settings, show selection, and macro execution.
Note: Power supply NOT included. Please contact your Sales Pro for more information on this and other products.
Includes
- CueServer 2 DIN-Rail mountable lighting control processor
- Panel mounting flanges
- 1,024 channel license
Features
- Completely self-contained lighting playback, architectural processor, and DMX fade engine
- Seamless handling of Cue Lists, Presets, and Streams
- Control of up to 32 universes of DMX or 32 independent playback timelines
- Dynamic patching of up to 16,384 channels to 128 separate sACN, Art-Net, or KiNET universes
- Four bi-directional DMX ports may be configured as inputs or outputs
- Front-panel configurable function buttons with RGB indicator LEDs
- Creation of lighting scenes directly or capture from external sources
- Powerful CueScript scripting language
- Real-Time clock with astronomical functions and calendar events
- Built-in web server for hosting custom interactive web pages
- Multi-show storage and removable Micro SD memory card
- System integration via Ethernet, Serial, Digital I/O, and Audio
- Compatible with CueStation buttons and CueTouch touchscreens
- Easy interfacing with Crestron, AMX, Vantage, Control 4, Medialon, Savant and other automation systems
- Native programming environment for Mac and Windows
- Standard DIN-Rail mounting or surface/panel mounting
Specifications
- Installable Options
- DMX Channels:
- Base: 1,024
- Maximum: 16,384
- Capacity per Show
- Universe Patching: 128 sACN, Art-Net, or KiNET universes
- Playbacks: Up to 32, depending on number of Channels[1]
- Cues: 1,000,000 per Cue Stack[2]
- Cue Stacks: Unlimited[2]
- Groups: 100,000[2]
- Macros: 100,000[2]
- Global Rules: 1,000[2]
- Timer Events: 1,000[2]
- External Button Stations: 1,000[2]
- Audio Clips: Unlimited[2]
- Web Content: Unlimited[2]
- Protocols
- Ethernet:
- UDP
- TCP
- HTTP
- TELNET
- NTP
- Streaming ACN (sACN)
- Art-Net
- KiNet v1/v2
- CueScript
- CueStation
- Serial: User-Defined ASCII, CueScript, CueStation
- Connections
- Power: 2-Position Terminal Block
- I/O
- (3) 12-Position Pluggable Terminal Blocks providing signals for 4 Bi-Directional DMX ports
- RS-232
- RS-485
- (8) Contact Closure Inputs
- (8) Low-Voltage Digital Outputs
- Auxiliary 5VDC Output
- Audio: (2) 3.5 mm (1/8”) Audio Jacks for stereo audio I/O
- USB:
- (1) Type-A USB Host Port
- (1) Micro-B USB Device Port
- Network: RJ45 10/100 Base-T Ethernet
- User Interface
- LCD: 40 Character x 2 Line (Black on White)
- Menu Buttons: 5-Way Navigation Switch
- Function Buttons: (8) User-Defined Function Buttons with RGB LEDs
- Power
- Memory
- Removable Card: Micro SD (FAT32 formatted cards up to 2TB)
- Real Time Clock
- Type: Battery-backed, 1 second resolution, less than +/-5ppm drift
- Event Triggers:
- Time of day
- Day of week
- Day of month
- Week of month
- Year
- Date range
- Astronomical time
- (relative to sunrise or sunset +/- specified offset)
- Synchronization: Automatic using Network Time Protocol (NTP)
- Physical
- Width: 4.8” (123 mm)
- Depth:
- Without mounting flanges: 8.0” (204 mm)
- With mounting flanges: 8.9” (227 mm)
- Height:
- Without DIN brackets: 1.6” (40 mm)
- With DIN brackets: 2.6” (60 mm)
- Weight: 0.9 lbs (0.41 kg)
- Environmental
- Operating Temperature: -13° to 158°F (-25° to 70°C)
- Storage Temperature: -40° to 176°F (-40° to 80°C)
- Relative Humidity: 5% to 95% non-condensing
- Altitude: 10,000 feet maximum
- Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service)
- Accessories
- 12VDC Power Supply: AC-12P
- 12VDC Power Supply (UK/Euro): AC-12P-EURO
- 12VDC Power Supply (Australia): AC-12P-AUST
- DIN Power Supply, 24VDC, 15W: AC-24-DIN-15W
- DIN Power Supply, 24VDC, 36W: AC-24-DIN-36W
- CueServer 2 Additional Universe License: CS-UNIV
Notes
- [1] The number of channel universes times the number of playbacks must be 32 or less.
- [2] These parameters may be limited by available SD Card storage space.
