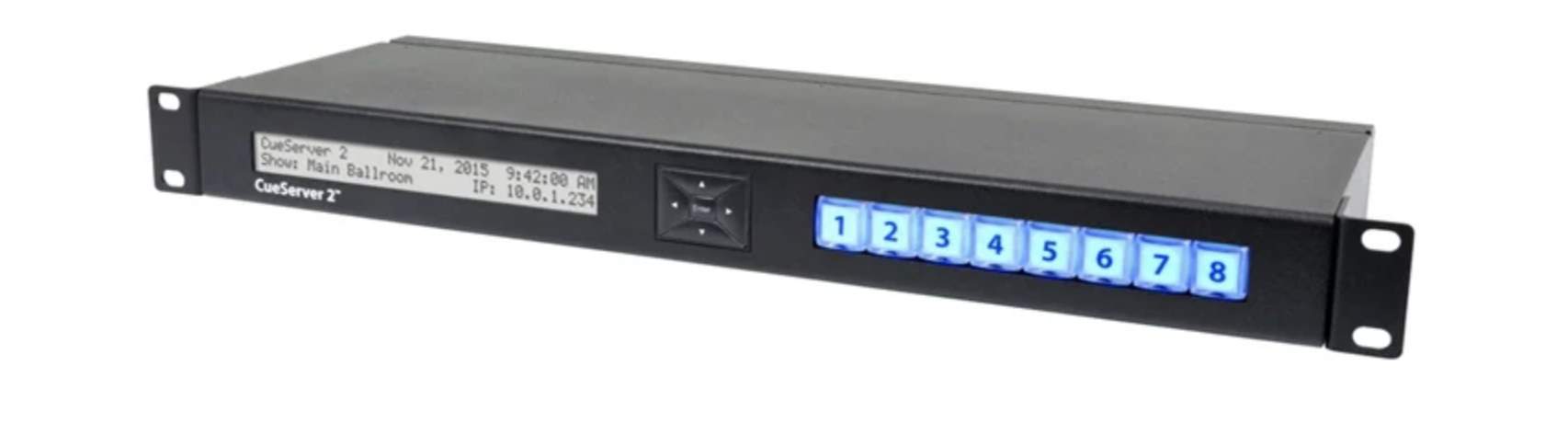

From commercial and retail, to architectural entertainment show-stoppers, CueServer 2 is the powerhouse playback controller for your lighting. Boasting an innovative modular DMX port system, this robust 1U unit contains four, user-configurable bi-directional DMX ports compatible with seven available port modules, allowing you to customize your CueServer 2 to your installation environment. Dual LAN ports allow for advanced connectivity for splitting Ethernet-based lighting and management data when separate networks are needed. The simple interface features eight customizable function buttons (with field-replaceable legends and RBG backlighting) and onboard LCD menu with an easy navigation keypad for control of basic settings, show selection, and macro execution.
Applications
Commercial and Residential
Architectural and Entertainment Lighting
Museum
Broadcast Studio
Building Management
Features
- Completely self-contained lighting playback, architectural processor, and DMX fade engine
- Controls up to 32 universes of DMX or 32 independent playback timelines
- Dual Ethernet ports for separate configurable lighting data and management networks
- Button stations and LCD touchscreens
- Easily interfaces with Crestron, AMX, Vantage,Control 4, Medialon, Savant and other automation systems
- Native programming environment for Mac and Windows
- 1U rack-mounted enclosure with removable brackets
Specifications
- General
- Form Factor: DIN Rail
- Memory Card: Micro SD
- Max. Memory: 32GB
- Shows per Card: Limited only by available SD Card storage space
- Capacity (per show)
- DMX Universes: 2 Universes for base configuration
- Playbacks: Up to 32, depending on number of Universes
- Cues: Static and Streaming: 1,000,000 *
- Cue Stacks: Unlimited *
- Groups: 100,000 *
- Macros: 100,000 *
- Global Rules: 1,000 *
- Timer Events: 1,000 *
- External Button Stations: 1,000 *
- Audio Clips: Unlimited *
- Web Content: Unlimited *
- Connections
- Power: 30V DC (12V DC Nominal), 12 Watts, 2.1mm Input Jack
- DMX Ports: (4x) Bi-directional DMX module slots for custom configuration of preferred jack type
- DMX Jacks: Terminals
- Network: (2x) RJ45, 10/100 Base-T Ethernet (Dual-LAN)
- I/O: (2x) 5-position pluggable terminal blocks for RS-232 and RS-485 serial ports (2x) 10-position pluggable terminal blocks for 8 contact closure inputs and 8 low-voltage digital outputs and auxiliary 5VDC output
- USB: 1 Type-A USB Host Port
- Audio: (2x) 3.5mm (1.4") Jacks for stereo input/output
- Protocols
- Ethernet: UDP, TCP, HTTP, Telnet, SNTP, sACN, KiNET v1/v2, CueScript, CueStation
- RS-232, RS-485: User-Defined ASCII, CueScript
- User Interface
- LCD: 40 Character x 2 Line (Black on White)
- Menu Buttons: 5-Way Joystick Navigation Switch
- Function Buttons: (8x) User-Defined Function Buttons with RGBLEDs
- Automation
- Real Time Clock: Battery-backed, 1 second resolution
- Event Triggers: Time of day, day of week, day of month, week of month, date range, astronomical time (relative to sunrise or sunset +/- specified offset)
- Scripting: CueScript 2
- Event Rules: Unlimited
- Web Hosting: Apache HTTP Server
- Software
- Programming: CueServer Studio 2 desktop application (Mac OS X, Windows), with offline editing and remote access
- Apps: CuePad, Figment DMX, and 3rd party apps
- Environmental
- Operating Temperature: -13° to 158°F (-25° to 70°C)
- Storage Temperature: -40° to 176°F (-40° to 80°C)
- Relative Humidity: 5% to 95% noncondensing
- Altitude: 10,000 feet maximum
- Dimensions: 17.1" x 6.0" x 1.73"
- Weight: .09 lbs.
