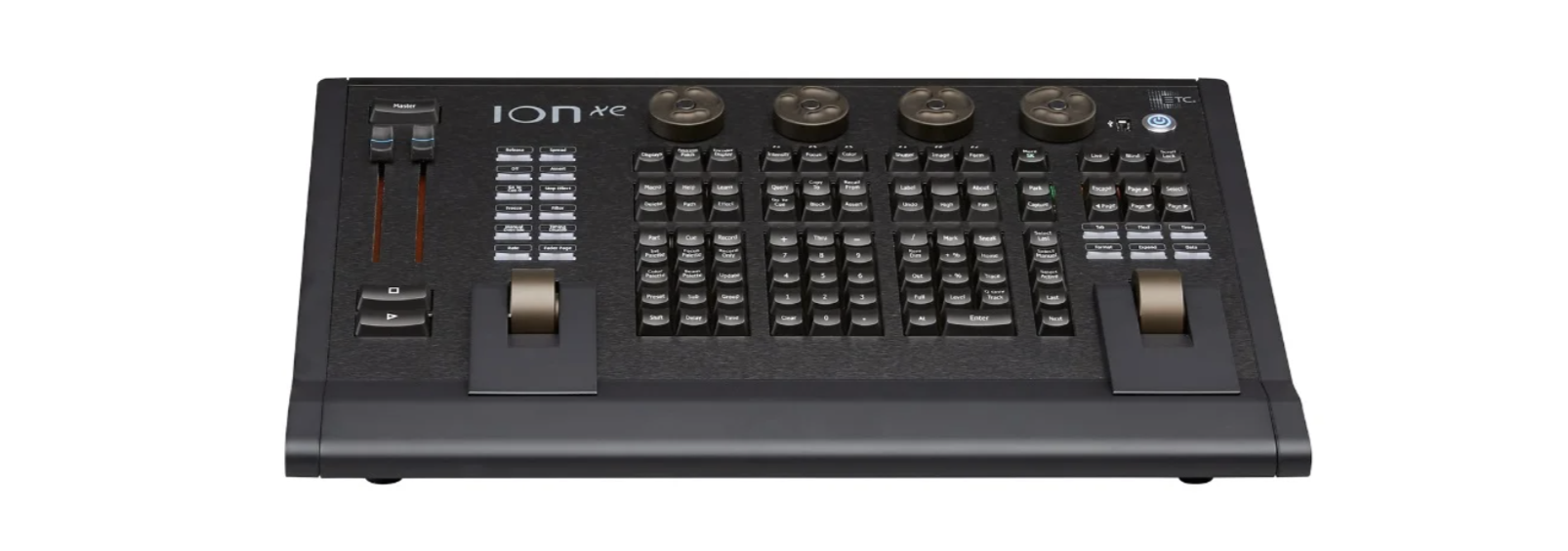

ETC Ion XE Console

Ion Xe from ETC provides complete control of conventional and moving lights, LEDs and media servers. It supports multiple users with partitioned parameter control and full backup, multiple playback faders and cue lists in a tracking, move-fade environment. This compact member of the Eos family of ETC offerings features the same backlit keyboard layout and full-feature software as its bigger siblings, and this little desk brings professional programming power to any venue. Ion Xe can integrate into a system with all other Eos family products (except Element), and you can transition between desks with ease.

The Ion Xe is available in either 2,048 or 12,288 outputs (this model offers 2,048 ouputs), and provides support for up to two external monitors. The master playback faders can be supplemented with virtual faders or a variety of other options. As with any Eos family desk, you can always further expand your fader count of Ion Xe or Xe 20 by connecting one or more Eos Fader Wings or Eos Motorized Fader Wings.

Includes

• Dust cover
• One Littlite
• Mouse and mousepad
• External alphanumeric keyboard
• Two active display-port to DVI adapters
• One locking IEC power cord

Features

• 2,048 outputs
• 16,000 control channels (any number from 1 - 99,999)
• Up to 99 discrete users
• Partitioned control
• Master playback pair with motorized 100mm faders
• User-definable direct selects
• Four discrete palette types (IFCB)
• Presets function as “all palette”
• Effects provide dynamic relational and absolute progressive behavior
• Configurable high-density channel display, with format and flexi-channel modes
• User configurable, interactive Magic Sheets
• ETCNet2™ and Net3™ (powered by ACN), ArtNet and Avab® UDP network output protocols
