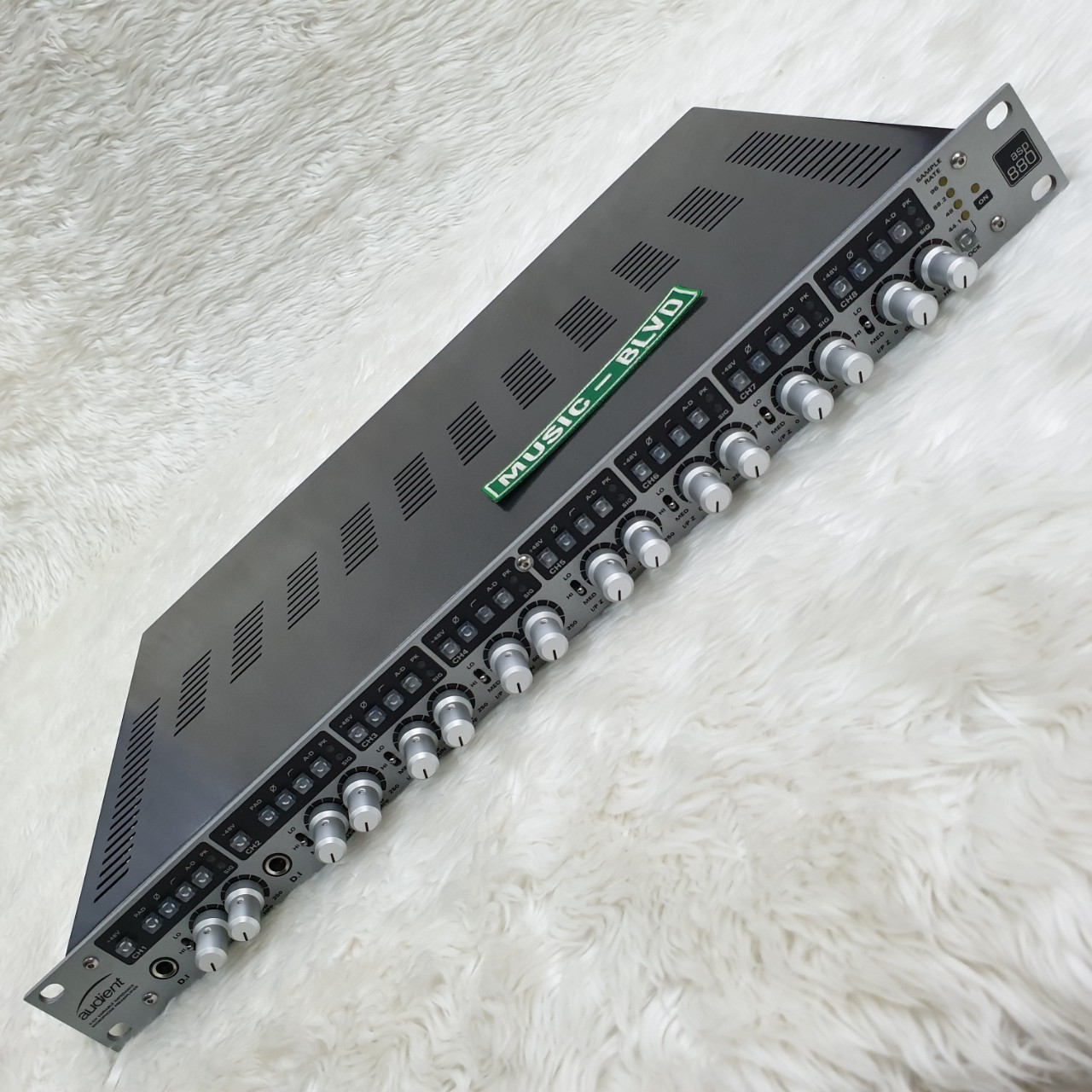

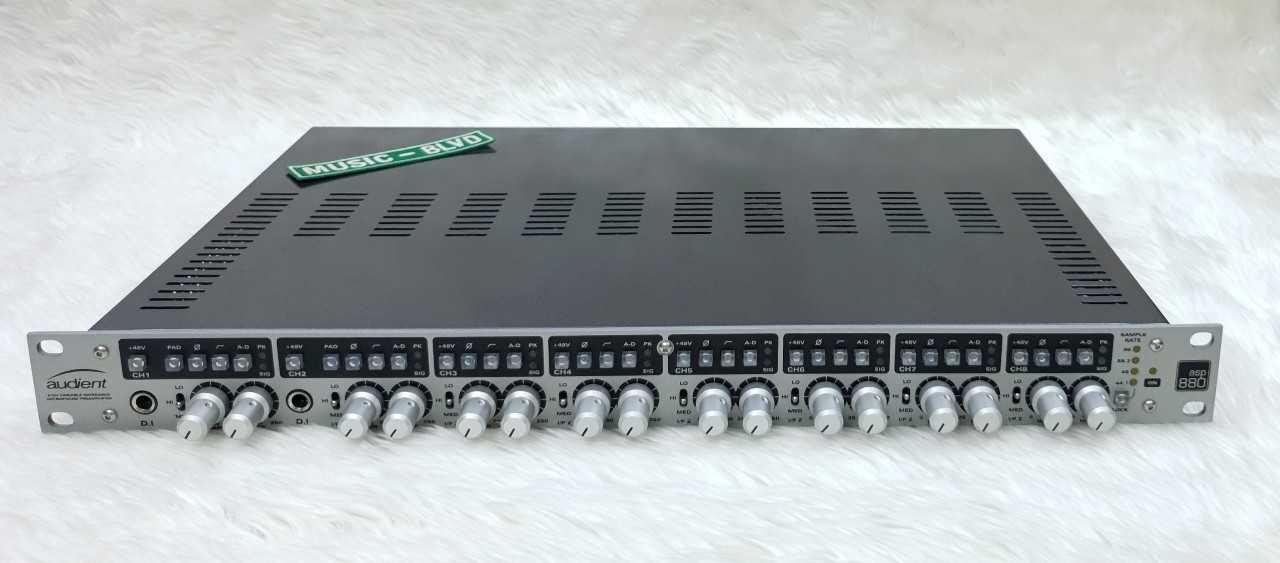

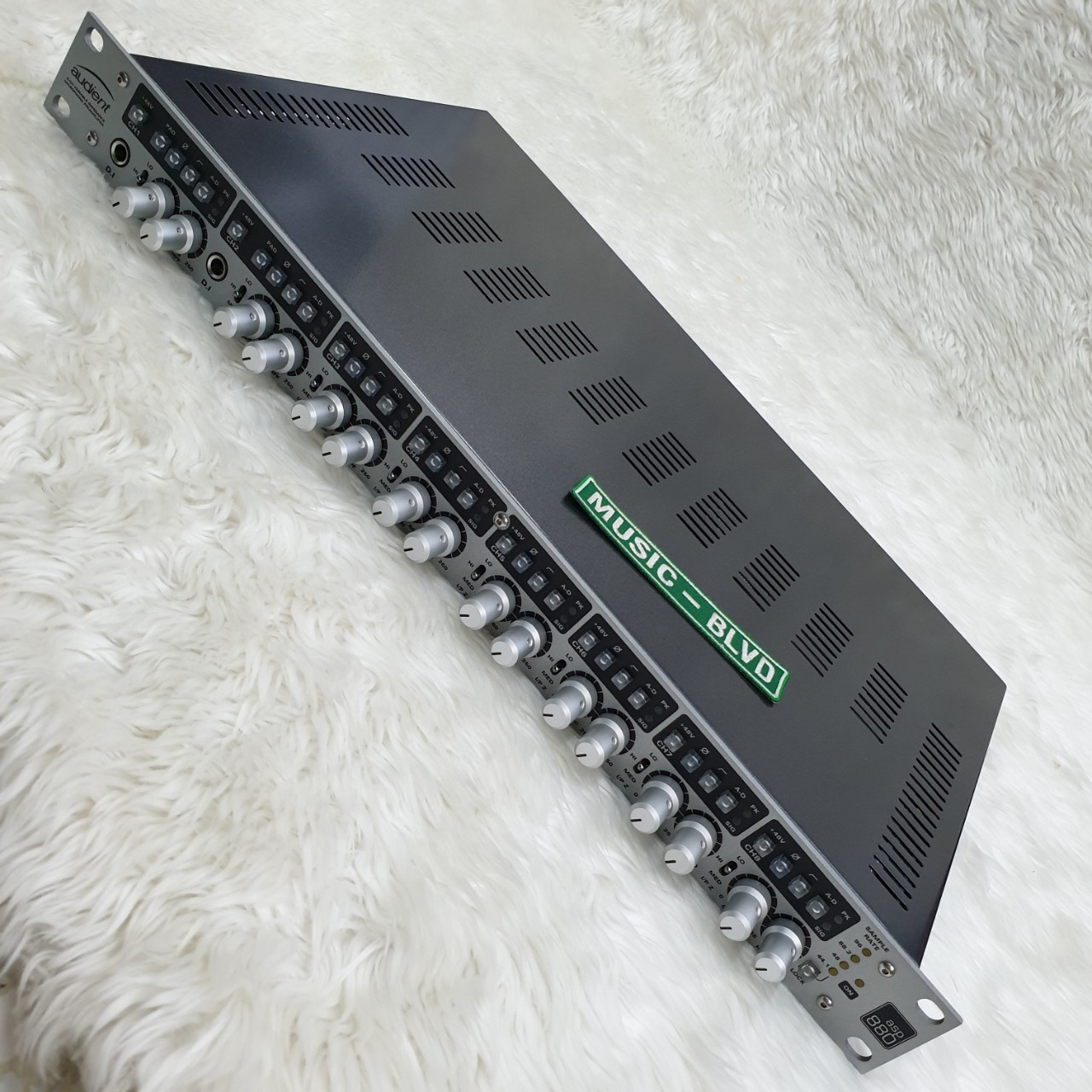

Audient ASP880 Microphone Preamp & ADC

The Audient ASP880 Microphone Preamp & ADC is an 8-channel microphone preamplifier & ADC that will transform your sessions into world class recordings. With sweepable high pass filters, switchable input impedance, balanced insert points and pristine analogue to digital conversion, the ASP880 is the perfect addition to your recording set-up.

Audient Console Mic Pres -The professional sound you deserve

The Audient is the only company that use the same Class-A mic pre design throughout their entire product range, whether you’re in the studio with an Audient console or on the road with Audient ASP880, you’re always guaranteed the same world class Audient sound.

Pristine Converter Technology

Brilliance on the inside enables brilliance on the outside. The Audient ASP880 Microphone Preamp & ADC provides you with the highest grade converters from Burr Brown, the leaders in converter technology. The integral ADC guarantees you will have the best conversion possible. This isn't just the best converter in a mic pre either, it stands up against dedicated converters too. Focus on the music and let the Audient ASP880 take care of the rest.

Expand - Grows with your needs

Transform your sessions into world class recordings with the Audient ASP880 Microphone Preamp & ADC, the perfect addition to your set-up. Bypass the mic pres and converters in your current interface and achieve the same audio excellence as the top studios.

Plug And Play - Plug in and be inspired

As well as offering you 8 channels of Audient mic pre, the Audient ASP880 has two harmonically rich JFET D.I inputs. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly.

Variable Impedance - Get the best from your microphones

If you’re partial to the character of ribbon mics, then the Audient ASP880 is made for you. Variable impedance allows you to match the pre to your favourite ribbon mic. Retain the punch and frequency response the mic was born with. It also works on your other mics, just more subtly.

Variable High Pass Filter - Quickly remove unwanted low frequencies

Get it right at the source and lose those unwanted low frequencies with a simple to use variable high-pass filter. Take control of low end rumble, reduce proximity effect and more by quickly sweeping anywhere between 25Hz and 250Hz. The result is a clean, ready to record signal.

Built To Last - Quality deserves protection

The Audient ASP880 has been designed to last, its all-metal construction and hand milled aluminium knobs will stand up to countless late nights in the studio and days on the road. All this in 1RU!

Audient ASP880 Microphone Preamp & ADC Features

• 8 x Class-A Audient Console Mic Preamplifiers
• High Performance Burr Brown AD Converters
• Variable Input Impedance
• Variable High Pass Filters
• 2 x Discrete JFET Instrument Inputs
• 8 x Insert points (between the mic preamps and AD converters)
• Digital Outputs - ADAT, AES & S/PDIF
• All-Metal Enclosure
• Over £500 worth of plugins and software with ARC

Audient ASP880 Microphone Preamp & ADC Specifications

• Microphone Preamplifiers
  • Mic Gain: -10 to +60dB (-10dB Pad)
  • Line Gain: -16 to +44dB (-10dB Pad)*
  • Phantom Power: 48v +/-4v @ 10mA/Channel
  • Mic EIN: <-127.5dBu
  • CMRR: >80dB @ 100 to 10kHz
  • Maximum Input Level: +22dBu (+32dBu with Pad)
  • Input Impedance: Mic Lo 220O bal, Mic Med 1k2O bal, Mic Hi 2k8O bal, Line (All Z) >6kO bal
  • Frequency Response: +/-0.5dB 10Hz to 100kHz
  • Crosstalk: <-85dBu @ 1kHz & 10kHz
  • THD+N @ 0dBu (1kHz): 0.003% (-90.5dBu)
  • SNR: >90dB
  • HPF: Sweepable from 25Hz to 250 Hz, 2nd Order (12dB/Octave)
  • XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
  • 1/4” Jack: Tip (Hot), Ring (Cold) & Sleeve (Shield)
• Discrete JFET D.I (Channels 1 & 2)
  • D.I Gain: -10 to +60 dB (-10dB Pad)
  • Maximum Input Level: +16dBu (typical), +22dBu
  • Input Impedance: 1MegO Unbalanced
  • Frequency Response: +/-0.5dB 10Hz to 50kHz
  • THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
  • SNR: 89dB
  • 1/4” Jack: Tip (Hot) & Sleeve (Shield)
• Line Outputs (Insert Sends)
  • Maximum Output Level: +27.5dBu
  • Output Impedance: <100O Balanced
• ADC Line Inputs (Insert Returns)
  • Maximum Input Level: +18dBu
  • Digital Reference Level: 0dBFS = +18dBu
  • Input Impedance: >10kO Balanced
  • Frequency Response: +/-0.5dB 10Hz to Fs/2
  • Crosstalk: <-80dBu @ 1kHz & 10kHz
  • THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
  • THD+N @ -6dBFS (1kHz): <0.002% (-94dB)
  • Dynamic Range: 113dB un-weighted, 115dB A-weighted
  • Peak LED Lineup: +16dBu (-2dBFS)
  • Signal LED Lineup: Variable Brightness from -30dBu to -10dBu (-28dBFS)
• DIGITAL In/Out
  • ADAT 8 Channels SMUX: 44.1 - 96kHz
  • AES | S/PDIF 8 Channels: 44.1 - 96kHz
  • Clock: Internal or External
  • Worldclock Input: 75O BNC, Optional 75O Termination
• Power Supply
  • Type: High stability, low noise internal SMPS
  • Operation: Fanless, quiet operation
  • Configuration: Works anywhere in the world without reconfiguring
  • Line Voltages: 90 to 264V (a.c)
  • Internal Rails: +/-18VDC, +48VDC & +5VDC
  • Fuse: T1A (1Amp Time Delay)
  • Consumption: Maximum 40 Watts
• Weight: 4.0kg
