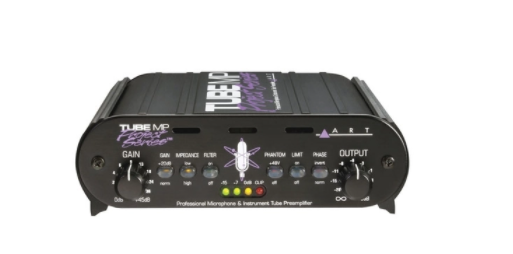

ART Tube MP Project Series Tube Preamp

The ART Tube MP Project Series Tube Preamp is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to a mixer or other audio input.

The ART Tube MP Project Series Tube Preamp is the latest in a long line of ART tube preamps. The ART took their legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, and cost effective product. From the new all-aluminum stackable chassis to the precision LED level metering circuitry, the ART has improved virtually every aspect of their already successful Tube MP series. With up to 70dB of clean musical gain and high output signal drive capability the cold digital world will melt with your mixes! Charge up your creativity with the ART Tube MP Project Series Preamp!

Optional ART SM1 stand mount securely attaches the ART Tube MP Project Series Preamp to any microphone stand for live stage or studio applications is available.

ART Tube MP Project Series Tube Preamp Features

• Extremely low noise discrete front end
• Up to 70dB of clean, "musical" gain
• High output signal drive capability
• Fast FET limiter to prevent overload
• Switch selectable input impedance
• Precision LED metering
• Built-in low noise phantom power supply
• Compact, stackable all aluminum chassis
• XLR and 1/4" inputs and outputs
• Phase invert switch
• High cut filter switch
• Variable input and output controls

ART Tube MP Project Series Tube Preamp Specifications

• Frequency Response: 10Hz to 40kHz, +/-1 dB (typical)
• Total Harmonic Distortion: <0.05% (typical)
• CMRR: > 60dB (typical)
• Dynamic Range: > 100dB (20Hz to 20kHz)
• Equivalent Input Noise:
• Input Impedance: Switchable, 4.7k O / 600 O (XLR)
• Input/Output Connections: Input: 1/4? TRS unbalanced (1meg O), XLR female balanced. Output: 1/4? TRS unbalanced (600 O), XLR male balanced (
• Maximum Gain: 70dB (XLR – XLR), +50dB (1/4? – XLR)
• Input Gain Pad: Switchable, 20dB
• Maximum Input Level: +17dBu (1/4?), +16dBu (XLR)
• Maximum Output Level: +20dBu (1/4?), +26dBu (XLR)
• Low Cut Filter: Switchable, -3dB @ 40Hz
• Output Phase: Switchable, Normal/Invert
• Output Limiter Type: Switchable, Fast & Musical FET Limiter, > 20dB limit range
• Phantom Power: Switchable, +48V DC, filtered, current limited
• Signal Metering: Precice LED array with a fast attack and moderate release
• Chassis Type: Aluminum Anodized with integral/stackable rubber sides
• Power Requirements: 10VAC @ 700mA (typ)
• Tube Type: 12AX7A hand selected
• Dimensions: 6.5?D x 5.9? W x 1.75? H (165mm x 150mm x 44.5mm)
• Weight: 2.5 lbs (1.14 kg)
