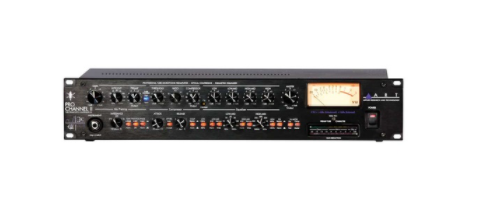

ART Pro Channel II

The ART Pro Channel II Tube Channel Strip is the answer to your recording and computer audio interface needs! The Pro Channel II is perfect for use in a wide variety of applications and environments. In a rack-mountable, all-steel enclosure, the unit is designed for continuous professional use.

The ART Pro Channel II's second-generation discrete Class-A microphone preamp provides clean quiet gain while maintaining incredible transparency. A powerful dynamics processor subtly controls transients and noise of the most demanding sources. The ART Pro Channel II’s semi-parametric EQ offers wide tune-ability and can be patched before OR after the dynamics processor. Separate rear-mounted insertion jacks allow you to use your favorite external signal processing gear immediately after the Mic preamp and before the EQ and dynamics processor. Both analog and LED meters provide a detailed indication of audio levels.

ART Pro Channel II Features

• Fully Featured discrete class "A" Tube Microphone Preamplifier
• 1/4" High Z input on the front panel
• Selectable plate Voltage
• Smooth musical sounding Optical Compressor
• Separate Attack and Release controls
• Auto/Manual Attack/Release switch
• Parametric EQ
• Large VU and LED meters
• Multi section clip monitor LED
• Selectable Source switches for VU signal monitoring of any section of the unit
• Two insert loops
• +4/-10 dB switch for optimal signal output levels
• Toroidal power transformer for low noise

ART Pro Channel II Specifications

• Input Impedance
  • Mic: 150 to 3.4K Ohms, variable
  • Instrument: 2.5M Ohms
  • Preamp Insert: .5K Ohms
• Output Impedance
  • Balanced Output: 600 Ohms balanced
  • Unbalanced Output: 300 Ohms
  • Insert Outputs: 300 Ohms
• Frequency Response
  • Analog In to Analog Out: 12Hz to 100KHz +0, -1dB
  • THD @ 1 KHz: <0.15% typical
  • THD @ to to 20 KHz: <0.033% typical
• Equivalent Input Noise
  • Mic/Line: -128dBu, Input shortened, Max gain, "A" weighted
  • Instrument: -109 dBu, Input shortened, Max gain, "A" weighted
• Maximum Input Level
  • Mic: +18dBu balanced
  • Instrument: +15 dBu
• Maximum Gain
  • Mic: 70dB (XLR to balanced output)
  • Instrument: 64 dB (1/4" to balanced output
• Maximum Output Level
  • Balanced: +24 dBu
  • Unbalanced: +20 dBu
  • Output Level At Meter 0 VU: +4 dBu/-10dBV
• Preamp
  • Microphone Gain: 0 dB to +56 dB
  • Instrument Gain: +3 dB to +50 dB
  • Low Cut Filter: 0 - 250 Hz, 1-pole, 6 dB/Octave
• EQ
  • Boost/Cut: +/- 12 dB on each band
  • Low Freq. Tuning: 40 / 120 Hz Selectable
  • MID 1 Freq. Tuning: 20 Hz to 2 KHz continuously variable
  • MID 2 Freq. Tuning: 200 Hz to 20 KHz continuously variable
  • High Freq. Tuning: 6 KHz / 18 KHz Selectable
• Compressor / Limiter
  • Attack Time: 250 uSec. to 100 mSec.
  • Release Time: 00 mSec to 3 Sec.
  • Compression Ratio: 2:1 to 30:1
• Dimensions and Weight
  • Dimensions (H x W x D - in): 3.5 x 19.0 x 9.2
  • Dimensions (cm): 8.9 x 48.3 x 23.3
  • Weight (lbs/kg): 11/5
• Power and Voltage
  • Power Requirements: USA - 105 to 125 VAC/ 60 Hz
  • Export units configured for country of destination (contact us if you need 220V/50Hz)
