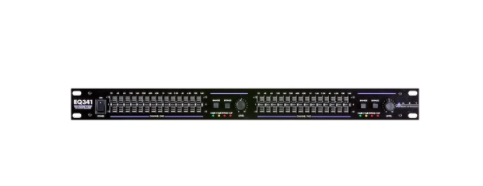

ART EQ-341 Equalizer

The ART EQ-341 Equalizer is a dual channel 15-band 2/3 octave equalizer designed and engineered to extremely high standards for audio performance and functionality. Featuring constant-Q circuitry with accurate center frequencies, selectable ±6dB or ±12dB range, active balanced and unbalanced input and output connectors, RFI filters and more, the EQ-341 is perfect for virtually any audio application.

The ART EQ-341 Equalizer is an innovative, high-quality equalizer perfect for virtually any audio application where precision frequency tailoring, reliable performance, rugged design and extremely silent processing is important. Rugged construction and solid audio performance make the ART EQ-341 Equalizer particularly well suited to fixed installation as well as touring live sound systems.

ART EQ-341 Equalizer Features

• Dual channel 15-band graphic equalizer
• Constant-Q filtering
• Balanced XLR, active balanced 1/4?, and unbalanced RCA input and output connectors
• +/- 6dB or +/-12dB Level adjustments
• 20mm Center detented frequency band sliders
• Independent level and bypass controls per channel
• Designed for years of continuous, reliable performance
• Rugged all steel construction

ART EQ-341 Equalizer Applications

• May be used in a variety of applications such as live sound, recording studios, instrument racks as well as any conventional fixed installation environment
• The equalizer can be used wherever modification of the frequency contour of a sound is needed
• The graphic equalizer is a powerful tool for solving a number of audio problems and creating interesting sound textures
• Patch the EQ between your mixing console and power amps to allow you to alter the overall mix to better match your environment
• Use the EQ between your monitor mixer and monitor power amps to aid in the removal of feedback inducing frequencies
• Patch into a channel insert to EQ one channel or track individually
• Run your instrument directly into the equalizer to enhance its sound before reaching a power amplifier or instrument amplifier
• Patch into the effects loop of an instrument amplifier or between a preamp and power amp to have precise control over the complete sound

ART EQ-341 Equalizer Specifications

• Channel Separation: > 50dB
• Controls: Power On/Off Switch; L/R Filter Range Switch; L/R Bypass Switch; L/R Level Control; Ground Lift Switch
• Filter Type: Constant Q – 3% center accuracy
• Frequency Bands: 2×15, 2/3 octave, ISO spacing
• Frequency Response: 20Hz to 20kHz, +0.5dB
• Indicators: 6dB/12dB Range LEDs; Bypass and Clip LEDs
• Input Impedance: 20k O (bal), 15k O (unbal)
• Input/Output Connections: Active balanced XLR and 1/4? TRS {XLR pin 2/ 1/4? tip = Hot (+)} Unbalanced RCA
• Power: (Switchable) 95-130VAC, 50/60Hz / 190-250VAC, 50Hz
• Power Consumption: 12 Watts
• Size: 1.75” H x 19” W x 7” D (4.45cm x 48.3cm x 17.8cm) (1U)
• Weight: 7.1 Ibs (3.2 kg)
