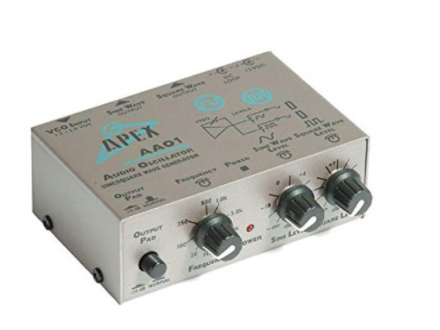

APEX AAO1 Audio Oscillator

The APEX AAO1 Audio Oscillator is a perfect tool for testing audio circuits and speaker systems. Designed to provide a steady-state sine wave and/or square wave at the frequency of your choice, the APEX AAO1 is also used for checking the calibration of crossovers.

The APEX AAO1 Audio Oscillator is an extremely handy test tone audio oscillator, and a must for everyone's audio toolkit. A sweepable -10dB Pad, separate square wave and sine wave outputs with level controls make it easy to create a signal to test the input of any audio device.

APEX AAO1 Audio Oscillator Features

• Effective for testing audio circuits and speaker systems
• Provides a steady-state sine wave and/or square wave at the frequency of your choice
• Suitable for testing and measuring all types of audio circuits or checking the calibration of crossovers
• Tunable from 20 Hz to 20 kHz and variable in gain over a wide range thanks to independent sine and square wave level controls
• Overall -10dB output pad
• Allows connection of an external source of DC control voltage (computer or keyboard instrument) to vary the APEX AA01's oscillator frequency
• All metal case

APEX AAO1 Audio Oscillator Specifications

• Outputs: Square/Sine Wave
• Output Pad: -10dB
• Frequency Range: 20 Hz to 20 kHz
• Built: Metal Case
• Weight: 1.15 pounds

APEX AAO1 Audio Oscillator Includes

• APEX AAO1 Audio Oscillator
• 12V AC Adaptor
