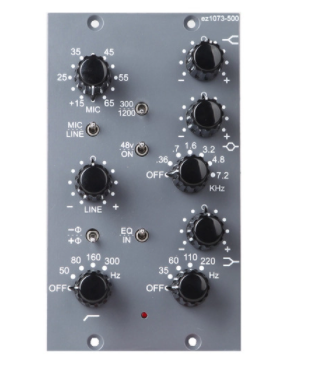

AML ez1073-500 500-Series Preamp & EQ

The AML ez1073-500 is a Class A Microphone Preamp and EQ module which occupies two slots in a 500-Series rack.

The AML ez1073-500 is a fully built with Carnhill transformers and inductors to achieve its distinctive classic sound, this high-end hand-built British module provides an affordable solution for the modern cost conscious studio.

AML ez1073-500 500-Series Preamp & EQ Features

• Classic 3 stage (Class A) amplifier design
• All discrete component (no surface mount devices)
• Entirely hand assembled and tested in the England to exacting quality standards
• Phantom and polarity switches
• The output is duplicated on both of the output XLRs
• Stainless steel chassis

AML ez1073-500 500-Series Preamp & EQ Specifications

• Mic Input: Carnhill transformer balanced (Classic VTB9045) +10dB to +65dB gain, rotary switchable in 5dB steps and switchable 300/1200 Ohm impedance input
• Line Input: Carnhill transformer balanced (Classic VTB9046) - 20dB to +20dB, rotary switchable in 4dB steps (centre 0dB), 10k Input Impedance
• Line Output: Carnhill transformer balanced (Classic full size output transformer)
• EQ/Filter Stage: 3 inductor (Class A) amplifier design
• HF (12kHz) +/- 16dB gain continuously variable
• MF (switchable; 360Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz) +/- 16dB gain continuously variable
• LF (switchable; 35Hz, 60Hz, 110Hz & 220Hz) +/- 16dB gain continuously variable
• Low Pass Filter (switchable; 50Hz, 80Hz, 160Hz & 300Hz) -18dB per Octave
• Total current consumption 110mA (per unit)
