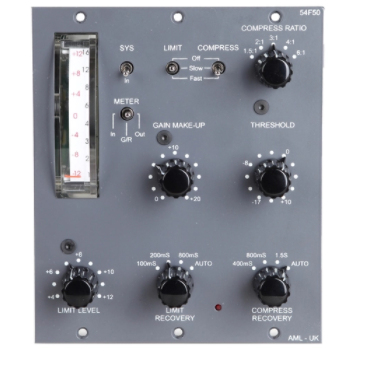

AML 54F50 500-Series Compressor

The AML 54F50 500-Series Compressor is a Class A Compressor and Limiter module designed to fit into three slots in a 500-Series rack.

The AML 54F50 is fully built with Carnhill transformers to achieve its distinctive classic sound, this high-end hand-built British module provides an affordable solution for the modern cost conscious studio.

AML 54F50 500-Series Compressor Features

• Classic 4 stage (Class A) amplifier, 4 transformer design
• All discrete component (no surface mount devices)
• Entirely hand assembled and tested in the England to exacting quality standards
• Stereo link via either the backplane edge connector, an XLR or both
• Illuminated meter selectable for input, output or gain reduction metering
• Power-off signal bypass
• Entirely stainless steel chassis

AML 54F50 500-Series Compressor Specifications

• Line Input: Carnhill transformer balanced (Mu-metal screened Classic VTB9046), 10k Input Impedance
• Interstage: Carnhill Mu-metal screened Classic VTB9045 and VTB9046
• Line Output: Carnhill transformer balanced (Classic full size output transformer)
• Compressor: (Class A) amplifier design
• Ratio: 1.5:1, 2:1, 3:1, 4:1 & 6:1
• Dual attack speeds: (Fast = 5mS, Slow = 25mS)
• Make-up gain: 0dB to 20dB in 2dB steps
• Recovery (release): 400mS, 800mS, 1.6S & Auto
• Threshold: –20dBu to +10dBu
• Total current consumption 150mA (per unit)
