ChamSys MQ500MWITHCASE

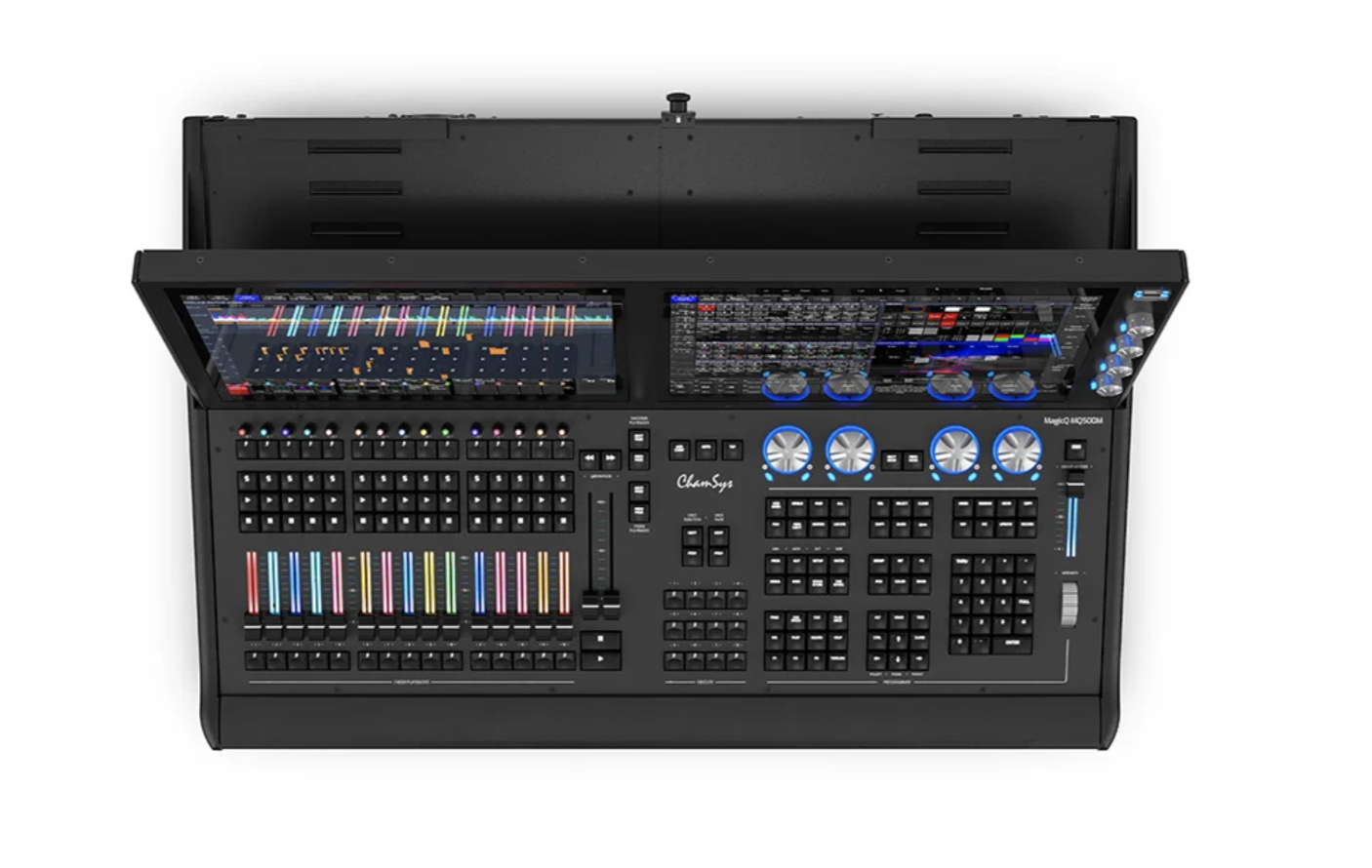

ChamSys MQ500MWITHCASE MagicQ MQ500M Stadium Console (256 Universe) with Flight Case

A stand-alone solution to provide the highest level of lighting show control. The MagicQ MQ500M Stadium console supports 256 universes directly from the console without the need for external processors. Its RGB illuminated, fully motorized faders and encoders deliver 42 playbacks and have backlit keys for upgraded programming.

ChamSys MQ500MWITHCASE Includes:

• MQ500MWITHCASE
• Qty (2) Dual color desk lights
• Qty (1) Neutrik powerCON TRUE1 power cable
• Qty (1) USB keyboard
• Qty (1) USB mouse
• Qty (1) Monitor arm with VESA mount
• Qty (1) Dust cover

ChamSys MQ500MWITHCASE Features:

• 256 universes direct from the console
• 15 encoder playbacks with RGB indicators
• 15 fully motorized fader playbacks
• 12 multi-purpose Macro/Executes/Playbacks keys
• Backlit buttons
• RGB illumination of playbacks
• Dual built-in 15-inch multi-touch HD displays
• Support for up to 8 touch displays (5 via remote network)
• Dual motorized 100mm crossfaders- ideal for theatre
• Built-in MagicVis Visualizer with full rendering of beams and gobos
• Proven and reliable software
• Includes flight case

ChamSys MQ500MWITHCASE Specifications:

• Direct DMX Outputs: 4
• Total Universes Direct from Console: 256 (via Artnet/sACN/Pathport)
• Motorized Playbacks: 15
• Encoder Playbacks: 15
• Macro/Execute/Playback Section Keys: 12
• Total Number of Playbacks: 42 (15+15+12)
• Attribute Encoders: 8
• Dual Motorized Crossfaders: Yes
• Backlit Keys: Yes
• Illuminated Playback/Encoders with RGB control: Yes
• Built-in HD Multi-touch 15-inch Displays: 2
• Intensity Wheel: 1
• Network Ports: 4
• External Monitor (up to 1920x1200 resolution) DVI-D Port: 1
• USB Ports: 6 (including 2 high-power USBs)
• Audio Input (1 channel, 7 band): Yes
• Audio Output: Yes
• MIDI Ports: Yes, 1 in and out
• LTC Timecode Ports, in and out: Yes
• Remote Input: Yes
• Built-in UPS: Yes, uses 12V lead-acid battery
• Front Storage Pockets: 2
• Power Input: Neutrik powerCON TRU1, 110-240VAC
• Software Specifications:
  • Max Number of DMX Channels: 131,072
  • Max Number of Supported Fixtures: 131,072
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Max Number of Media Server Layers Supported: 50 (each different content)
  • Number of Shows: Virtually unlimited (500GB SSD)
• Console Dimensions:
  • Width: 33.8” (860mm)
  • Depth: 23” (585mm)
  • Height: 3.5” (90mm) at front, 6.9” (175mm) at rear (screens stored)
  • Weight: 70.5 lbs. (32 kg)
• Flight Case Dimensions:
  • Width: 37” (940mm)
  • Depth: 26.4” (670mm)
  • Height: 11.4” (290mm)
  • Weight: 50.5 lbs. (23 kg) empty, 121 lbs. (55 kg) with console in case
