ALLEN & HEATH DANTE 128×128 128-CHANNEL DANTE OPTION CARD

Designed to help integrate dLive and Avantis into a wide range of live, install and broadcast scenarios, the Allen and Heath Dante 128×128 audio networking card offers low latency, high channel count connectivity to Dante networks and devices using standard networking cabling and hardware.

With 128 channels of bidirectional audio at 96 kHz, the Dante 128×128 card is suitable for high channel digital splits between systems, for instance FOH and MON, whilst offering simultaneous multitrack recording via Dante Virtual Soundcard (available separately), with no compromise in audio quality.

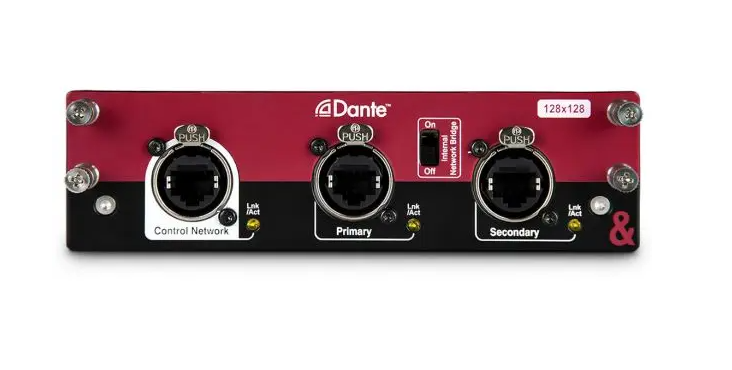

The front panel Primary and Secondary ports allow simultaneous connection to multiple Dante devices, or dual-cable redundancy with compatible hardware. A dedicated Control Network port is provided for configuration using Dante Controller software.

Support for the AES67 standard allows interoperability with other AoIP protocols found in broadcast, install and live sound scenarios and simplifies audio transport between different systems.

Compatibility with Dante Domain Manager (DDM) enables integration with large networks and transparent routing across subnets as well as robust security and authentication options.

FEATURES:

• 128 bidirectional channels of Dante I/O at 96 kHz or 48 kHz
• Primary and Secondary audio ports for redundancy or switched operation
• Dedicated Control Network port for configuration
• Internal Network Bridge switch to bridge the dLive/Avantis Control Network and the Dante Control Network
• AES67 compatible
• Dante Domain Manager (DDM) ready
• Up to 5x superDANTE with dLive S Class / up to 2x superDANTE with dLive C Class
• Plug and play operation
• Use off the shelf network hardware
