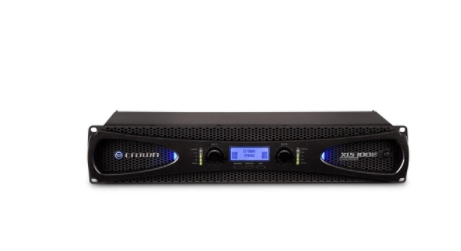

Crown XLS 1002 Power Amplifier

The Crown XLS 1002 Power Amplifier is a two-channel power amplifier designed to provide a clean, undistorted signal straight to your speakers. Featuring a sleek new look, a larger LCD display, more DSP with higher capabilities and DriveCore technology, the XLS 1002 delivers a powerful, pure sound experience for any venue.

The Crown XLS 1002 Power Amplifier is the next generation of the Crown XLS, with a makeover of a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new Crown XLS 1002 is ultra-efficient with Crown’s patented DriveCore technology and can drive 1100W at 4O bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Crown XLS 1002 Power Amplifier Features

• Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
• Higher DSP capabilities: More control; has band pass filter per channel
• Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
• Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
• Set sleep mode after specified time without having to press a button
• Security setting disables menu buttons; menu locked/unlocked by entering combination
• System reset allows factory settings to be restored
• Remote power trigger
• Peakx™ Limiters provide maximum output while protecting your speakers
• XLR, 1/4", RCA inputs provide flexibility
• Integrated PureBand™ Crossover System for better performance and control
• Efficient forced-air fans prevent excessive thermal buildup

Crown XLS 1002 Power Amplifier Specifications

• Sensitivity: 1.4Vrms
• Frequency Response: +0dB, -1dB
• Signal to Noise: >97dB (at .775Vrms, 6dB lower)
• Intermodulation Distortion: < 0.3%
• Damping Factor: > 200
• Total Harmonic Distortion: < 0.5%
• Crosstalk: At 1kHz: > 85dB, At 20kHz: > 55dB
• Dimensions: 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm)
• Weight: 8.6 lbs (3.9 kgs)
