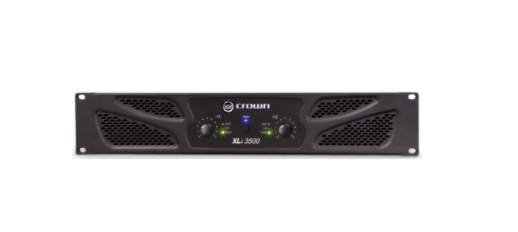

Crown XLI 3500 Power Amplifier

The Crown XLI 3500 Power Amplifier is a 2-channel 1350 watt powerful, reliable and affordable amplifier designed for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

The Crown XLI 3500 Power Amplifier is a 2-channel, 1350 watt power amplifier, represents a new era in affordable, quality power amplification. This powerful, rugged and reliable amplifier is suited for a variety of applications like musicians, DJs, and entertainers as well as houses of worship, discos and pubs.

The Crown XLI Series includes four models: XLi800, XLi1500, XLi2500 and XLi3500. They are identical except for output power.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon® and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

With over six decades of experience designing and building rock-solid products, the Crown is the standard in amplifier technology. So check out the affordable Crown XLI 3500 Power Amplifier, a powerful argument for quality and value!

Crown XLI 3500 Power Amplifier Features

• Stereo/parallel/bridge-mono mode
• User selectable input sensitivity - 0.775V and 1.4V
• Electronically balanced RCA & XLR inputs; binding post and Speakon ® outputs
• Efficient forced-air cooling prevents excessive thermal buildup
• Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
• Protection against shorts, no-load, on/off thumps and radio-frequency interference

Crown XLI 3500 Power Amplifier Specifications

• Frequency Response: 20 Hz - 20 kHz, +0/-1 dB (at 1 watt)
• Total Harmonic Distortion: <0.5%, 20 Hz - 20 kHz
• Intermodulation Distortion: =/ <0.35% (60 Hz and 7 kHz at 4:1 from full rated ouput to -30 dB)
• Slew Rate: >10V/us
• Voltage Gain: 36 dB
• Damping Factor: (8 ohms, 10 Hz to 400 Hz) >200
• Signal to Noise Ratio (A-weighted): >100 dB
• Crosstalk (Below Rated Power) 20 Hz to 1 kHz: -75 dB, -59 dB
• Input Sensitivity: (For full rated power at 8 ohms) 0.775V or 1.4V
• Input Impedance: (Nominal balanced, unbalanced) 20kO, 10kO
• Power Requirements: (+10%) 120V~60 Hz; 220V~50/60 Hz; 230-240V~50/60 Hz
• Dimensions: 19" x 3.5" x 12.4" (48.3cm x 8.9cm x 31.5cm)
• Weight: 43lbs (19.5kg)
• IEC Power Connector: 15A
