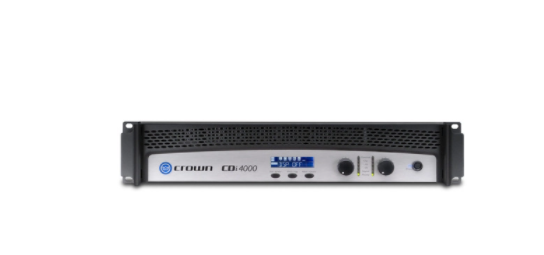

Crown CDi 4000 Power Amplifier

The Crown CDi 4000 Power Amplifier is a solid-state 2-channel power amplifier designed for installed sound applications. Featuring an intuitive front-panel LCD screen and a switch-mode universal power supply, it provides 1200W output power at 4 ohm and offers onboard digital signal.

The Crown CDi 4000 Power Amplifier is a professional tool designed and built for installed sound applications. The Crown CDi Series includes three models which are identical except for output power: CDi 1000, CDi 2000, and CDi 4000. All are rugged and lightweight, and offer unmatched value in their class.

This 1200W Power Amplifier features an intuitive front-panel LCD screen to guide installers through their configurations. The Crown CDi 4000 Amplifier also offers onboard DSP for loudspeaker signal processing. Other features include a switch-mode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, removable Phoenix-style inputs, barrier strip outputs for low-Z or 70V/140V loads, short-circuit protection and more.

In addition, the Crown CDi 4000 2-Channel Power Amplifier comes with a switch-mode universal power supply. The outputs are useable as dual or bridged-mono modes of operation. The bridged-mono mode bridges the outputs to provide increased output voltage. The Crown CDi 4000 2-Channel Power Amplifier is protected against shorted, open or mismatched loads; overloaded power supplies; excessive temperature; chain destruction phenomena; excessive output current, and input overload damage.

Crown CDi 4000 Power Amplifier Features

• Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs
• Switch-mode universal power supply
• Intuitive front-panel LCD screen for quick, easy configuration
• Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
• Up to 20 user defined DSP presets are available

Crown CDi 4000 Power Amplifier Specifications

• Channels: 2
• Sensitivity (For Full Rated Power at 8 ohms): 1.4V
• Rated Power Output (Per Channel @ 4 ohms): 1200W Stereo
• Signal to Noise Ratio (Below Rated 1 kHz Power at 8 ohms): 100 dB (A-weighted)
• Total Harmonic Distortion: < 0.5%
• Damping Factor (20 Hz to 400 Hz): > 500
• Frequency Response (At 1W, 20 Hz - 20 kHz): + 0 dB, -1 dB
• Crosstalk (Below Rated Power) 20 Hz to 1 kHz: >70 dB
• Input Impedance (Nominal): 20k ohms balanced, 10k ohms unbalanced
• Dimensions: 3.5" x 19" x 12.25"
• Weight: 22.0 lbs
• IEC Power Connector: 15A
