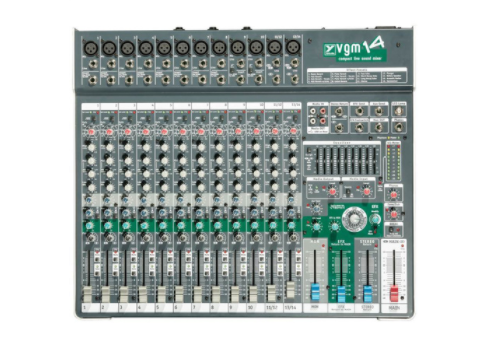

Yorkville VGM14 Mixer

The Yorkville VGM14 Mixer delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs.

The Yorkville VGM14 Mixer is a versatile, compact, low-noise live audio mixer designed for use in small to medium size clubs, churches and corporate events as well as home studios. The Yorkville VGM14 is suited for use with powered loudspeakers, power amplifiers as well as other types of recording gear.

The Yorkville VGM14 Mixer features an IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.

The Technology

The Yorkville PGM, VGM and MC Series Passive Mixers are designed specifically to be the ideal solution for virtually any typical live sound application. Built for the road, all Yorkville passive mixers deliver a clean, quiet signal path with the lowest noise floor possible. Simple and effective layout with intuitive controls makes Yorkville mixers easy to integrate into any system.

Manufactured using all metal chassis, reinforced input and output jacks, standard IEC AC line cords (no adaptors or 'wall warts') ensure Yorkville passive mixers deliver unmatched reliability in even the most demanding club, installation or concert venue.

Yorkville VGM14 Mixer Features

• Ten Mono Input Channels with XLR & 1/4-inch TRS inputs
• Channel 9 & 10 Mono Inputs have a Hi-Z input switch
• Two Additional stereo line input channels (11/12 and 13/14)
• Additional XLR mono input per stereo channel for maximum 12 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-Band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
• 60mm Faders Throughout
• Global 48 volt Phantom Power
• Stereo 9-band graphic EQ Assignable Main/Monitor
• Stereo RCA Media Outputs with Level Control
• BREAK Switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch)
• USB Audio I/O
• Zone/Sub Output with Level Control
• Main stereo TRS phone and XLR outputs
• Sixteen 24-bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adaptors)
• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz

Yorkville VGM14 Mixer Specifications

• Number of Channels: 14
• Channel Inserts: 10
• Mono Channel EQ: 3-Band w/ Mid Sweep
• Stereo Channel EQ: 4-Band
• Balance Controls: 11/12, 13/14
• Pan Controls: 1 to 10
• Channel Overload Protection: Yes
• Inputs - XLR (Bal): 12
• Inputs - 1/4": 14
• Inputs - RCA (Unbal): 1 Stereo Pair
• Solo Switches: Yes - All Channels
• Mute Switches: Yes - All Channels
• Hi Pass Switches: Yes - All Channels
• Activity / Solo LED: Yes - All Channels
• Clip / Mute LED: Yes - All Channels
• Phantom Power: 48 Volt + LED Indicator
• Internal Effects: 24 Bit Stereo / 16 Effects w/ Modify Control
• Auxiliary Sends: Yes
• Effects Send: Yes
• Effects Return: Yes
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: Yes (RCA and USB)
• Max Gain to Line Out -Mic Input (dB): 80dB
• Max Gain to Line Out -Line Input (dB): 65dB
• Mixer - Signal to Noise Ratio (dB): Greater than 100dB
• Mixer - Freq Resp (Tone and EQ Flat, ±2dB): 20Hz - 20KHz
• Mixer- Input Ref Noise to Line Out @150 Ohms(dBv): -118dBv (@ 150 ohms)
• Mixer THD (Main Out w/ -10dB Input): Less Than 0.05%
• Typical Crosstalk -1 kHz (dB-: Less Than -60dB
• CMRR @ 60Hz (Min/Typ): 55dB/65dB
• Power Consumption (Typ/Max): 26VA (Typical)
• Cooling: Fan
• Transformer Type: SMPS
• Chassis Construction: Steel
• Console Lamp Connector 12V DC (BNC): Yes - 12V DC (BNC)
• Other Features: Zone Output, Hi-Z Inputs (Ch 9 &10) USB I/O
• Dimensions (DWH, inches): 16 x 19 x 2.8
• Dimensions (DWH, cm): 40.6 x 48.3 x 7.1
• Weight (lbs/kg): 13/5.9
