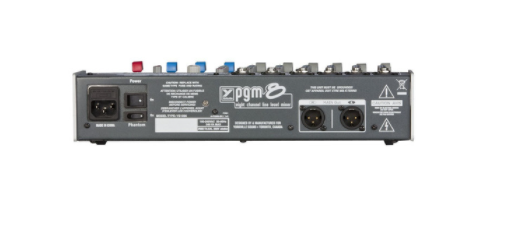

Yorkville PGM8 Mixer

The Yorkville PGM8 Mixer delivers all of the essential features needed in a professional mixer in a convenient, ultra-compact package. High quality 60mm faders throughout, effective fully featured input channel design, 24-bit digital effects, and break switch make the PGM8 the perfect mixer for live music applications and for small installs.

The Yorkville PGM8 Mixer is a compact versatile low noise audio mixer designed for use in small to medium size clubs, churches, corporate events, and in home studios. It is ideal for use with powered loudspeakers.

The Technology
The Yorkville PGM, VGM and MC Series Passive Mixers are designed specifically to be the ideal solution for virtually any typical live sound application. Built for the road, all Yorkville passive mixers deliver a clean, quiet signal path with the lowest noise floor possible. Simple and effective layout with intuitive controls makes Yorkville mixers easy to integrate into any system. Manufactured using all metal chassis, reinforced input and output jacks, standard IEC AC line cords (no adaptors or 'wall warts') ensure Yorkville passive mixers deliver unmatched reliability in even the most demanding club, installation or concert venue.

Yorkville PGM8 Mixer Features

• Four Mono Input Channels with XLR & 1/4-inch TRS inputs
• Channel 4 Mono Input has a Hi-Z input switch
• Two Additional stereo line input channels (5/6 and 7/8)
• Additional XLR mono input per stereo channel for maximum 6 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ, High Pass Filter, Monitor send , Effect Send, Clip LED, Mute Switch and Pan control per Channel
• 60mm Faders Throughout
• Global 48 volt Phantom Power
• 7-band stereo graphic EQ on Main Outs
• Stereo RCA Record Outputs with Level Control
• BREAK Switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch)
• Monitor TRS Output
• Main stereo TRS phone and XLR outputs
• Sixteen 24-bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Stereo Headphone Output Jack (Signal strong enough to drive 8-ohm speakers)
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adaptors)
• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz

Yorkville PGM8 Mixer Specifications

• Number of Channels: 8
• Mono Channel EQ: 3-Band
• Balance Controls: Yes
• Pan Controls: Yes
• Channel Overload Protection: Yes
• Inputs - XLR (Bal): 6
• Inputs - 1/4": 6
• Inputs - RCA (Unbal): 1 Stereo Pair
• Phantom Power: 48 Volt + LED Indicator
• VU Meter: 2 x 10 Segment LEDs
• Headphone Monitor Features: Yes
• Internal Effects: 24 Bit Stereo 16 Effects
• Effects Send: 2 (1 internal, 1 External)
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: 1 Stereo Pair
• Mixer - Signal to Noise Ratio (dB): Greater Than -100dB
• Mixer - Freq Resp (Tone and EQ Flat, ±2dB): 20Hz - 20KHz
• Mixer THD (Main Out w/ -10dB Input): Less Than 0.05%
• Typical Crosstalk -1 kHz (dB-: Greater Than -60dB
• CMRR @ 60Hz (Min/Typ): 55dB/65dB
• Power Consumption (Typ/Max): 26VA (Typical)
• Chassis Construction: Steel
• Dimensions (DWH, inches): 14.2 x 12.8 x 2.8
• Dimensions (DWH, cm): 36 x 32.5 x 7
• Weight (lbs/kg): 8.5/3.8
