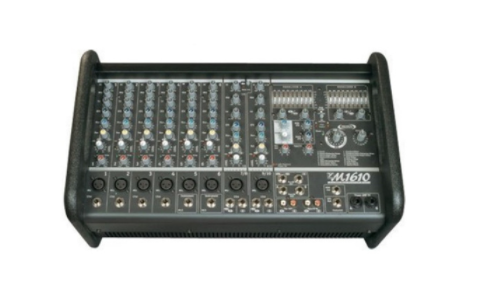

Yorkville M1610 Powered Mixer

The Yorkville M1610 Powered Mixer offers the convenience, lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer. High-powered high-efficiency class-H power amplifiers, newly designed input strips, on-board DSP, a new more effective master EQ section and ten very useful input channels complete the new 'wedge' mixer package.

The Yorkville M1610 Powered Mixer has two integrated 800-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to an innovative master EQ section designed specifically for these new mixers. The master EQ has a 9-band graphic EQ with additional high and low shelving EQ's at either end of the frequency band. The nine graphic sliders are essentially all of the middle bands of a 15-band graphic EQ with the low and high frequency bands covered by separate shelving controls. This gives the user more control over the feedback-prone mid frequency bands; with high and low tone-shaping frequencies controlled by additional simple +/- 15 dB trim controls.

The Yorkville M1610 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ'd for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound. When the input trim level is properly set, users will have ample overall gain while taking full advantage of the new clip elimination circuit which makes it virtually impossible to distort the input of the microphone and instrument channels.

Yorkville M1610 Powered Mixer Features

• 10 Channels (800 watts per channel @ 4 ohm (Assignable Left/Right or Main/Monitor))
• Gold plated dual contact XLR connectors (all channels)
• TRS balanced inputs (dual inputs for stereo channels 7/8 and 9/10)
• "Set" LED's for easy and proper adjustment of Trim control
• 3 Bands of EQ on channel strips
• 9 Band graphic EQ for each output with shelving EQ for precise control
• Built in Digital Effects
• Footswitch jack for bypassing effects
• Mute switch (channels 1-8) for quick change-over between band and DJ
• Dual RCA Tape/CD In and Rec Out jacks
• Made in Canada

Yorkville M1610 Powered Mixer Specifications

• Number of Channels: 10
• Mono Channel EQ: Low, Mid, High
• Stereo Channel EQ: Low, Mid, High
• Channel Effects: All Channels
• Monitors Effects: Yes
• Balance Controls: Ch. 7 - 10
• Pan Controls: Ch. 1 - 6
• Channel Overload Protection: Ch. 1 - 6
• Inputs - XLR (Bal): 8
• Inputs - 1/4": 10
• Inputs - RCA (Unbal): 1 Pair
• Mute Switches: Global 1 - 8
• Activity / Solo LED: Trim Set Ch. 1 - 6
• Clip / Mute LED: All Channels
• Phantom Power: 48V + LED Indicator
• Internal Effects: 24 Bit Stereo, 16 Effects with Parameter Pot
• Auxiliary Sends: Effect - Monitor
• Effects Send: Yes
• Effects Return: Internal
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: Stereo RCA Pair
• Max Gain to Line Out -Mic Input (dB): 84
• Max Gain to Line Out -Line Input (dB): 82
• Master EQ -1 (Type/Channels/Range -dB): Graphic 9 Band (160hz-6.3khz) +2 Band Shelving
• Monitor EQ -1 (Type/Channels/Range-dB): Graphic 9 Band (160hz-6.3khz) +2 Band Shelving
• Main Outputs (Line Level): 2 x 1/4-inch TRS
• Main Amp Inputs (Line Level): 2 x 1/4-inch TRS
• Monitor Outputs (Line Level): 1 x 1/4-inch TRS
• Outputs - Amp A - 1/4" Jacks: 2
• Outputs - Amp A - Speakon 4-Pin: 1
• Outputs - Amp B - 1/4" Jacks: 2
• Outputs - Amp B - Speakon 4-Pin: 1
• Mixer - Signal to Noise Ratio (dB): 101
• Mixer - Freq Resp (Tone and EQ Flat,±2dB): 20 - 20,000
• Mixer- Input Ref Noise to Line Out @150 Ohms(dBv): -119
• Mixer THD (Main Out w/ -10dB Input): 0.0001
• Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 600
• Amp A - Power Output @ 4 Ohms: 800
• Amp A - Power Output -Other: 600 @ 2 Ohms
• Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz): 600
• Amp B - Power Output @ 4 Ohms: 800
• Amp B - Power Output -Other: 600 @ 2 Ohms
• THD - 1kHz (dB): 0.001
• THD - 20Hz-20kHz (dB): 0.005
• Hum and Noise (Un / A-weight -dB): -101
• Typical Crosstalk -1 kHz (dB-): Better than -60dB
• Input Impedance - Bal/Unbal (Ohms): 20k / 10k Ohms
• Input Sesitivity (Vrms Sine): 1.4
• CMRR @ 60Hz (Min/Typ): -37dB / -60dB
• Max Votage Gain (dB): 32
• Power Consumption (Typ/Max): 6.4A @ 60Hz / 3.3A @ 50Hz
• Protection: Thermal, Short Circuit, Current, Clip
• Cooling: 2 x 80mm Fans
• Transformer Type: Toroidial
• Finish: Grey and Black Powder Coat
• Chassis Construction: Steel and Aluminum
• Other Features: Tiltback or Upright Wedge Angles
• Dimensions (DWH, inches): 11.1 x 18.6 x 11
• Dimensions (DWH, cm): 28 x 47 x 28
• Weight (lbs/kg): 31.3 / 14.2
