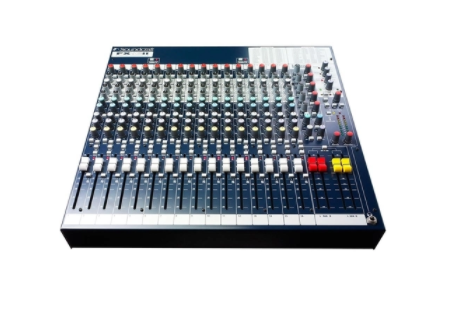

Soundcraft FX16ii Mixer

The Soundcraft FX16ii Mixer utilizes the same AudioDNA processor featured in many Digitech, and Lexicon units; including the highly respected MX400 effects processor from Lexicon.

 The Soundcraft FX16ii offers a combination of powerful live and recording features. For example each channel on the FX 16ii has a Direct Output which is individually switchable between pre and post fader, to enable use with 16-track recording systems. The Lexicon effects work just as well in live applications, as well as in the recording studio; with a tap tempo function, 3 parameter controls, user effects settings store ability, effects clip LED and 32 powerful and editable effects to choose from. The Soundcraft FX16ii's use of the latest PCB surface mount technology means that it fits all of these features into a rugged, compact frame which can be optionally rack-mounted into a 10U space via Soundcraft FX16ii's rotating connector pod which allows cables to be connected conveniently behind the rack and save rack space.

Soundcraft FX16ii Mixer Applications

• Live Sound:
  • Bands
  • Small Venues
  • Clubs
  • Conferences
  • Schools
  • Houses of Worship
• Studio Recording:
  • Digital/Analogue Multi-tracking (8 or 16 track)
  • Small/Home Studios
  • Pre-/Post-Production.

Soundcraft FX16ii Mixer Features

• 26 inputs
• 16 mono microphone channels.
• 4 stereo returns
• 4-bus architecture, with sub-group routable to mix
• Built-in 24 bit Lexicon digital effects processor
• 32 FX settings
• Tap Tempo
• 3 FX parameter adjust rotaries
• User FX settings store function
• Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
• Inserts on all mono channels
• Inserts on stereo mix output
• Classic Soundcraft 3-band EQ with swept mid-band
• Stereo 18dB/octave 100Hz high-pass filter
• Dual global +48V phantom power split channels 1-8 and 9-16
• Channel Mute control
• 10-segment tri-coloured metering
• Two sub-group outputs
• Separate mono sum output
• Integral universal power supply
