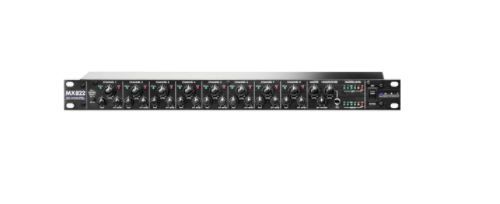

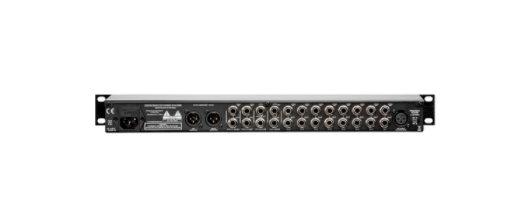

ART MX822 Mixer

The ART MX822 Mixer is a versatile eight input mixer for studio, live sound or installation applications. Featuring eight stereo/mono input channels with individual level, pan and effects send controls, the MX822 is ideal for sub-mixing a player using multiple instruments or could serve as the only mixer for a small live setup.

The ART MX822 Mixer's each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple ART MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

ART MX822 Mixer Features

• Eight stereo/mono input channels with individual level, pan and effects send controls
• External effects loop with independent send and return controls
• Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control foroutput monitoring
• Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
• Switchable low noise +48V phantom power for microphone input
• Separate green and red LED signal and clip indicators for each input channel
• Six level left and right main output metering including clip indicators
• Balanced left and right XLR main outputs
• Multiple units may be chained together for additional inputs
• Rugged 1U rack mount steel case

ART MX822 Mixer Specifications

• Input Connections:
  • XLR-F balanced (MIC)
  • 1/4? TRS unbalanced (Ch1-Ch8, Effects Return)
  • 1/4? TRS stereo unbalanced (EFX Buss, Main Expand)
• Output Connections:
  • XLR-M balanced (Main)
  • 1/4? TRS unbalanced (Effectss Send)
  • 1/4? TRS stereo unbalanced (Monitor, Main Expand, Headphone)
• Input Impedance: 1k O (MIC), 5k O (Ch1-Ch8)
• Output Impedance:
• Total Harmonic Distortion: <0.01% @ 1kHz
• Signal to Noise Ratio: > 90dB typical (Ref 0dBu)
• Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)
• Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)
• Maximum Gain: +60dB (MIC), +14dB (Ch1-8)
• Phantom Power: Switch Selectable, +48V DC, filtered, current limited
• Power Requirements: USA – 95 to 125 VAC, 50-60 Hz (Export units configured for country of destination)
• Dimensions: 1.75?H x 19?W x 6?D (44.5mm x 483mm x 152mm)
• Weight: 6.5 lbs (2.95 kg)
