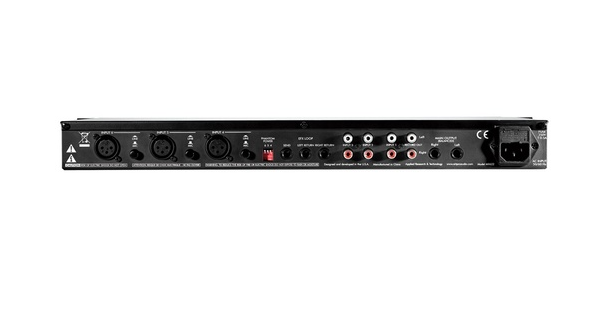

ART MX622 Mixer

The ART MX622 Mixer is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix.

The ART MX622 Mixer features external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

ART MX622 Mixer Features

• Three balanced XLR inputs switchable mic/line level
• Three stereo RCA inputs with separate level controls
• Level control and clip indicators
• Selectable 15-volt phantom power for mic channels
• Balanced TRS 1/4-inch main output jacks with master level control
• Versatile two-band master EQ
• Separate stereo record outputs
• Effects loop with level independent level control

ART MX622 Mixer Specifications

• Input Connections: XLR-F balanced (x3) / ¼-inch unbalanced (x2) / 3 pairs stereo RCA (6 total)
• Output Connections: TRS balanced 1/4-inch (x2) / 1/4-inch unbalanced (x1) / RCA (x2)
• Input Impedance: 600/22K Ohms mic/line XLR inputs / 10K Ohms RCA inputs / 22K Ohms 1/4-inch effects returns
• Output Impedance: 50 Ohms 1/4-inch main outputs / 1K Ohms RCA record outputs / 100 Ohms effects output
• Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
• Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
• Phantom Power: +15 Volts DC (regulated / low noise)
• Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
• Signal to Noise Ratio: >90dB typical
• THD: .01% Typical
• Equalizer Range: +/-12dB @ 100Hz & 10KHz
• Power Requirements: USA - 105 to 125 VAC / 50-60Hz, 15 Watts typical
• Dimensions (H x W x D): 1.75" x 19.0" x 6.0" / 44.5mm x 483mm x 152mm
• Weight: 6.2 / 2.8 (lbs/kgs)
