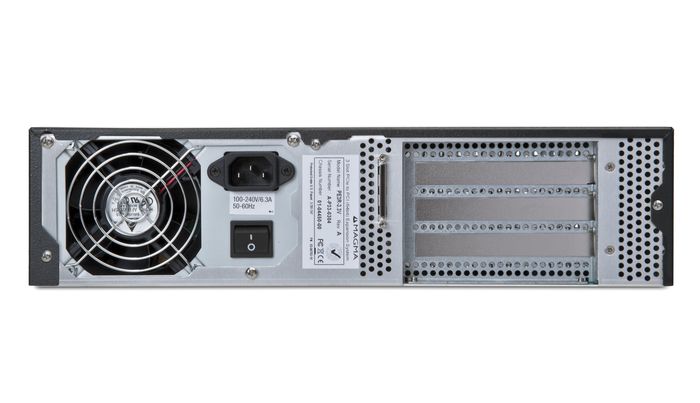

MAGMA 3-Slot PCIE-PCI Expansion System

MAGMA
Enjoy the benefits of a new computer while protecting your investment in PCI hardware.

Need to upgrade your server or desktop computer? Don’t want to lose your investment in your specialized PCI cards that won’t fit in your new computer? You can install practically any PCI card into the Magma PCI Expansion System and connect it through a PCI Express slot on your computer. Prolong your investment Magma’s 3 Slot PCI Expansion System provides a simple, cost-effective solution for expanding the capability practically any computer, especially as PCI Express becomes the industry standard, the number of available PCI slots has been reduced or completely eliminated. Many companies have invested a lot time, energy and money in solutions built around conventional PCI hardware. The Magma 3 Slot PCI Expansion System provides a safe "migration path" to PCI Express while protecting your investment in PCI cards. Easy Installation The expansion chassis consists of a host interface card, a cable and a chassis. The expansion chassis is automatically configured by the System BIOS making all of the slots appear transparent within the host computer. Cost-Effective Migration and Increased I/O Capacity Magma expansion solutions provide a cost-effective migration path to new computers while maintaining a consistent PCI configuration. In addition, Magma products significantly increase (I/O) capacity and scalability. Multiple expansion systems can be combined to provide an almost unlimited number of PCI slots to a single computer. This type of scalability is especially useful in industries such as Telecom, Data Acquisition, Video Monitoring, Server Storage and Manufacturing Test Fixtures.



Features

Increase the number of PCI slots without replacing your computer
Attach full-height PCI cards to computers with low-profile slots or PCI Express slots
The only solution for adding multiple PCI cards to mobile computers
Multiple expansion systems can be connected to a single computer
Keep your PCI configuration consistent making computer upgrades easy



Order this amazing connectivity solution for your studio today!



3-Slot PCIE-PCI Expansion System Specifications:


Model
PE3R 3 Slot PCI Expansion System with PCIe host card (universal slots)
PE3R-3.3 3 Slot PCIe to PCI Expansion (with 3.3V keyed slots
Options
SUBPCIHIF32LP PCI host card
SUBCBHIF CardBus (PCMCIA)
SUBEC54 ExpressCard/54 module
SUBEC34 ExpressCard/34 module
SUBCBL1.5HF 1.5 meter cable
Technology
Backplane
3 PCI slots (64-bit/33MHz)
PCI Local Bus Specification: Revision 2.2
PCI Bridge Architecture Specification: Revision 1.2
Cable
1-meter PCI expansion cable
Optional 1.5-meter length
Interconnect Bandwidth 255 MB/sec
Enclosure
Black (Steel/Aluminum) 2U Rack-mount
13.1"W x 3.5"H x 16.4"D (19"W with rack ears)
9 lbs or 4.086 kg
System Cooling
Two 34CFM fans
One fan in power supply
Host Connections and Power Consumption
Universal PCI 32/33 0.63W max; 5V @ 0.125A
Low Profile PCI (64/33) 0.86W max; 3.3V @ 0.25A
x1 PCI Express® 0.69W max; 3.3V @ 0.21A
CardBus (PCMCIA) 0.42W max; 3.3V @ 0.125A
ExpressCard 34 or 54 0.81W max; 3.3V @ 0.21A; 1.5V @ 0.08A
Chassis Power Supply
550W Power Supply
AC Input: 100-240VAC, 10,0A
Input Frequency: 50-60HZ
Input Current: 10.0A Max
DC Output: 550Watts Max
+12V 36.0A maximum
-12V 3.0A maximum
+3.3V 28.0A maximum
+5V36.0A maximum
+5VSB 3.0A maximum
Total power on +3.3V and 5V must not exceed 200W max
Environmental
Ambient Temperature 0º to 50º C
Storage Temperature -20º to 60º C
Relative Humidity 5% to 85% non-condensing
MTBF
100,000 hours
Regulatory Compliance
FCC Class A Verified
CE Compliant
RoHS Compliant
Supported Operating Systems
Windows
MacOS
Linux
Solaris
Warranty
30 day money back guarantee
1 year return to factory


www.music-blvd.com $1499
