Powerful, Intuitive MagicQ Software
MagicQ software offers powerful lighting control with tons of intuitive features that lighting designers have come to rely on, such as full lighting visualization, pixel mapping, and HD media playback on up to eight different layers, all integrated smoothly to streamline your workflow, save precious time, and reduce your learning curve.
Road-ready, Tour-tough

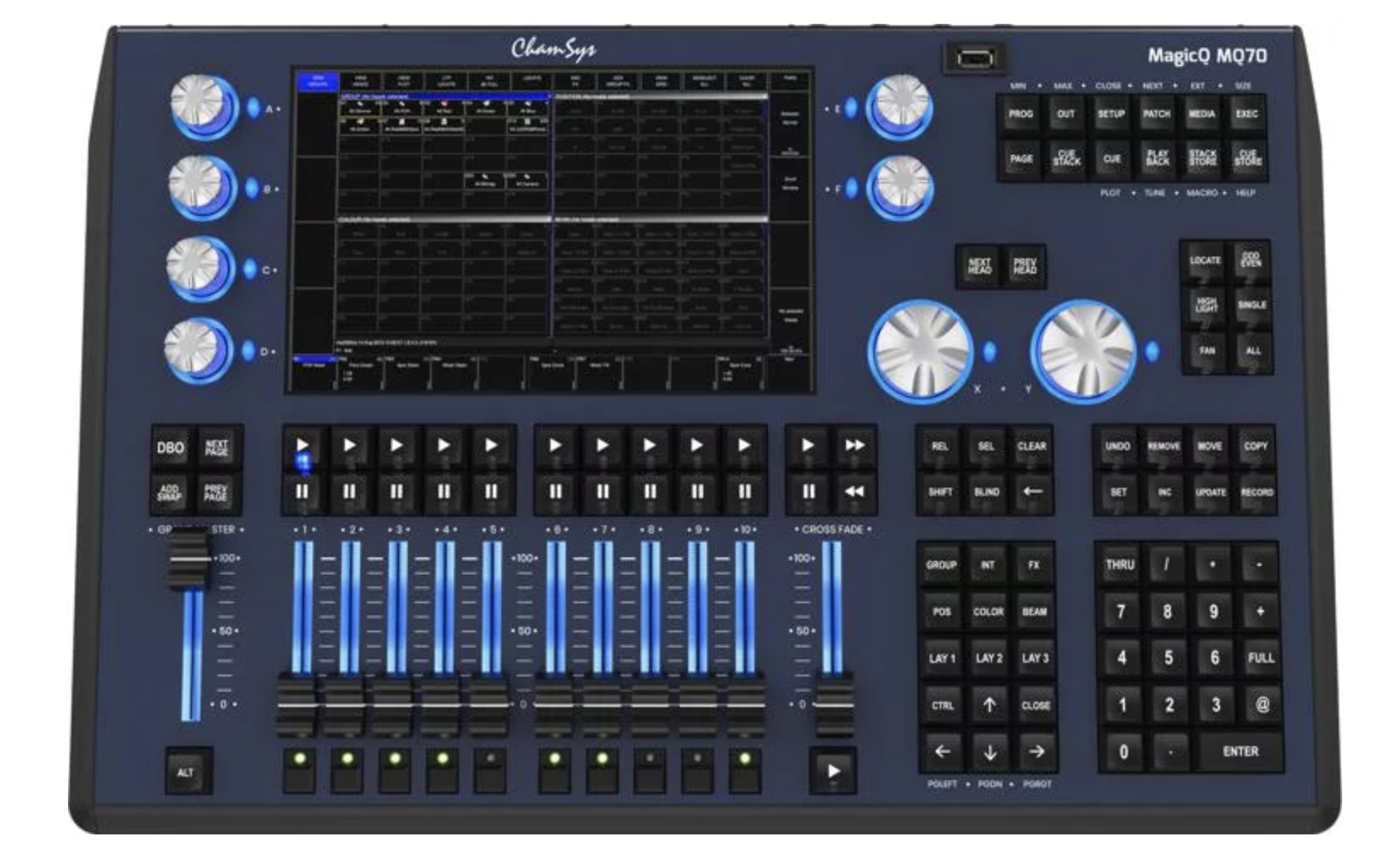

The MagicQ MQ70 is road-ready with a tour-tough build quality that incorporates only high-reliability components. The onboard 3-port Ethernet switch is protected by the uninterruptable power supply (UPS), ensuring that both the console and the network switch remain operational even during a power blackout. For secure lock-down, the console features a Kensington security slot. Lighting pros at Sweetwater know they can trust the ChamSys MagicQ MQ70 to deliver incredible visuals, intuitive ease of use, and bulletproof reliability, show after show. You can too.
ChamSys MagicQ MQ70 Compact Console Features:
- 24 universes direct from the console, expandable to 48
- Channels: 12,288 (expandable to 24,576)
- Number of fixtures: Up to 12288 (expandable to 24576)
- Cues: 5000; Groups: 5000
- High-resolution 10.1" multi-touch display
- External Monitor: HDMI (supports touchscreens)
- 4 x 5-pin XLR DMX ports; 5 USB ports
- 3 network ports supporting ArtNet and sACN
- Onboard Wi-Fi for quick connection to MagicQ Remote App
- UPS inbuilt to the console
- RDM support via direct DMX Ports and Network
- Silent operation, perfect for theaters
- Meets carry-on luggage requirements for all major budget airlines
Tech Specs
- Compact DMX Lighting Console
- 12,288 Channels, 24 x DMX universes
- 5000 x Cues, 5000 x Groups
- DMX-512
- 1 x HDMI, 3 x Ethernet, 4 x 5-pin XLR (DMX out), WiFi, 5 x USB
- 10 x Playback, 1 x Grand Master, 1 x Cross Fade
- PowerCON
- 2.3"
- 20.6"
- 13.7"
- 15.4 lbs.
- CHAMMQ70
