Dazzling, High-impact Light Shows — No Computer Required!
If you’re like many of the lighting pros at Sweetwater who are tired of lugging computers to and from gigs, the ADJ WMX1 Standalone DMX Lighting Controller is for you. Housed in a compact, road-ready chassis with tactile controls, the WMX1 lets you whip up high-impact, complex light shows on the fly — no computer required! Its streamlined workflow, powerful built-in effects engine, and intuitive control set make it easy to take command of a DMX lighting rig with different fixture types. The WMX1 is powered by Wolfmix, a robust modern protocol for standalone DMX lighting control, which makes your WMX1 sync-compatible with other Wolfmix-powered controllers. Enjoy the grab-and-go convenience of self-contained DMX lighting control without compromise: step up to the ADJ WMX1 Standalone DMX Lighting Controller.
Easy setup
With the WMX1, setup is easy. Its straightforward menu interface on the 4.3-inch capacitive touch TFT screen allows for effortless fixture selection, addressing, and grouping. Over 3,500 fixture profiles are onboard, with thousands more accessible through the WTOOLS companion app. The WMX1 also includes ADJ’s cutting-edge Fixture Builder for creating custom profiles or for use with legacy fixtures, as well as the Fixture Calibration tool, which lets you define the the area to be covered by moving heads.
Quick and intuitive to use

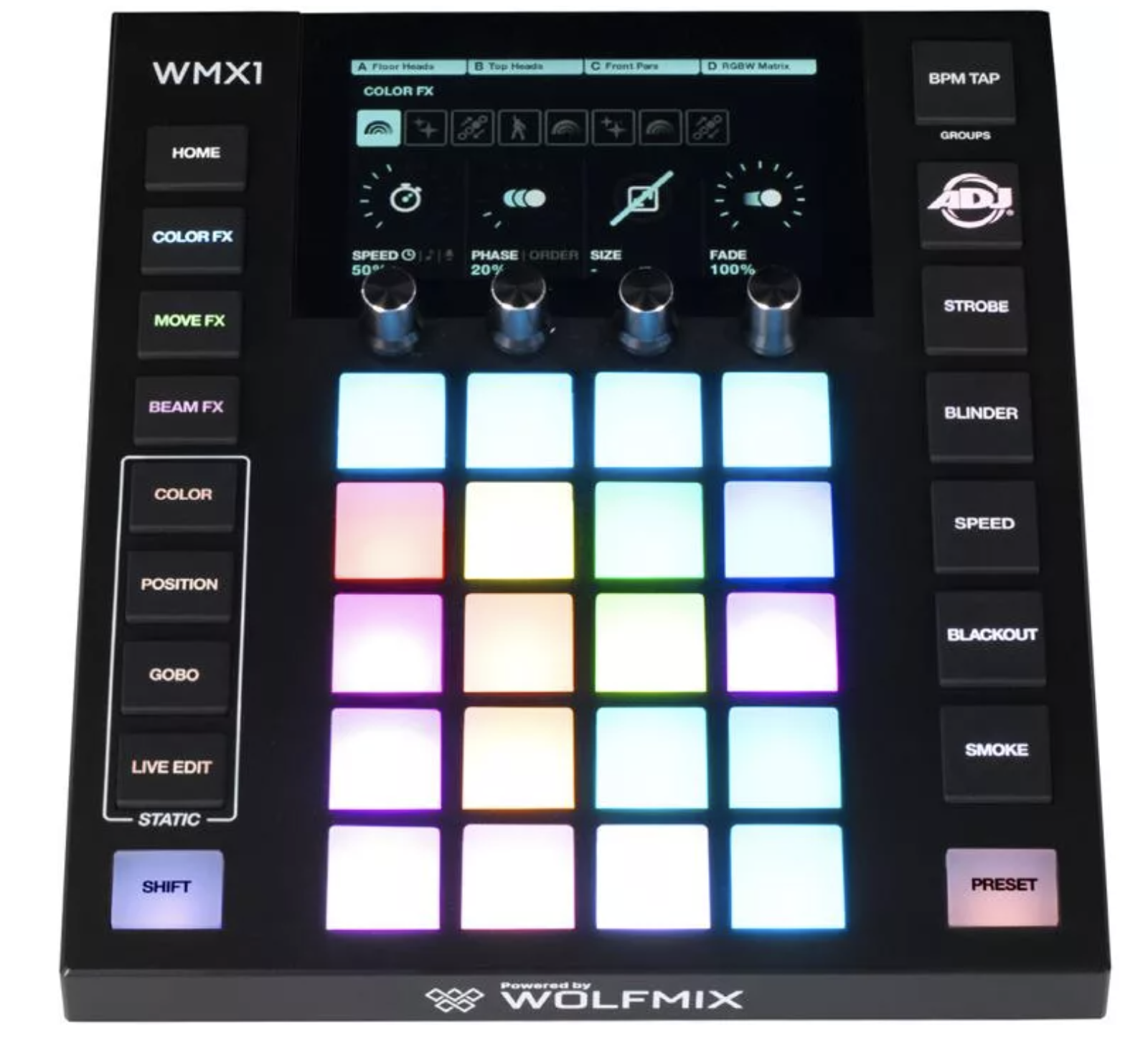

Once you’ve got it configured, the WMX1 gives you independent control of up to eight groups of fixtures with 37 backlit silicone pads/buttons and four rotary encoders that let you trigger three different effects engines (Color, Move, and Beam) and tweak them separately for each group. You also have dedicated buttons for Strobe, Blinder, Speed, Blackout, and Smoke.
Power and flexibility
The WMX1 supports up to four DMX universes and is equipped with four output sockets (two 5-pin and two 3-pin). You can map any universe to any output, which allows the WMX1 to also function as a DMX splitter. Out of the box, the WMX1 supports one universe, and three additional universes are available as upgrades via the WTOOLS app. The WMX1 also sports an internal microphone and a 3.5mm line-in jack for automated BPM detection, as well as a button that allows you to tap the BPM in manually. The WMX1’s onscreen Color Picker lets you select the perfect hue for your RGBW or RGBWA+UV LED fixtures. Other powerful features include automatic matching of similar GOBOs across disparate fixture types, a Fixture FLIP function for reversing beam order, a Fixture SPLIT for splitting up multi-FX bars, and auto-recovery of the active project so you don’t have to manually save it.
Tour-tough and ready to wow
Notwithstanding its light weight (just 2.36 pounds) and compact footprint (7.68 x 8.66 x 2.44 inches), the WMX1 is built like a tank with a durable ABS shell, a powder-coated steel base plate, and a reinforced back plate. Under the turret is a powerful 220MHz ARM-core CPU with 8MB or RAM plus16MB of flash memory, which allows you to create complex, layered effects that run independently across multiple groups — all in real time. Used to be, you needed a computer for that kind of firepower. No more, thanks to the WMX1. Just grab it and go! Get ready to treat your audiences to high-impact light shows with the ADJ WMX1 Standalone DMX Lighting Controller.
ADJ WMX1 Standalone DMX Lighting Controller Features:
- Powerful lighting control with standalone operation — no computer needed
- Compatible with any DMX device
- 37 backlit silicone pads/buttons and four rotary encoders
- Fixture Builder for creating custom profiles
- Up to 4 DMX universes (includes 1 universe out of the box)
- Up to 3 additional universes available separately via the WTOOLS app
- Up to 50 fixture types; up to 680 fixtures and beams
- Up to 5,000 fixture features (color, gobo, etc.)
- 6 projects; 8 fixture groups
- 15,000+ available fixtures (3,500+ onboard)
- DMX address, fixture order, and group setup
- Timed release of flash and preset buttons
- DMX splitter functionality with DMX universe mapping
- Fixture FLIP and FixtureSPLIT functions
- Import different fixture setups into the same project
- 4 output sockets (2 x 5-pin and 2 x 3-pin)
- Auto-recovery of active project (no manual saves required)
- Quick start up (under 2 seconds)
- Syncs with other Wolfmix controllers via WLINK
Tech Specs
- DMX Lighting Controller
- 2 x 3-pin DMX, 2 x 5-pin DMX, 1 x Type-B USB, 1 x 1/8" (line in)
- 2.44
- 7.68"
- 8.66
- 2.36 lbs.
- WMX100
