ADJ WMX1 Mk2 Standalone DMX Lighting Controller

Easy setup

With the WMX1 Mk2, setup is easy. Its straightforward menu interface on the 4.3-inch capacitive touch TFT screen allows for effortless fixture selection, addressing, and grouping. Over 3,500 fixture profiles are onboard, with thousands more accessible through the WTOOLS companion app. The WMX1 Mk2 also includes ADJ’s cutting-edge Fixture Builder for creating custom profiles or for use with legacy fixtures, as well as the Fixture Calibration tool, which lets you define the area to be covered by moving heads.

Quick and intuitive to use

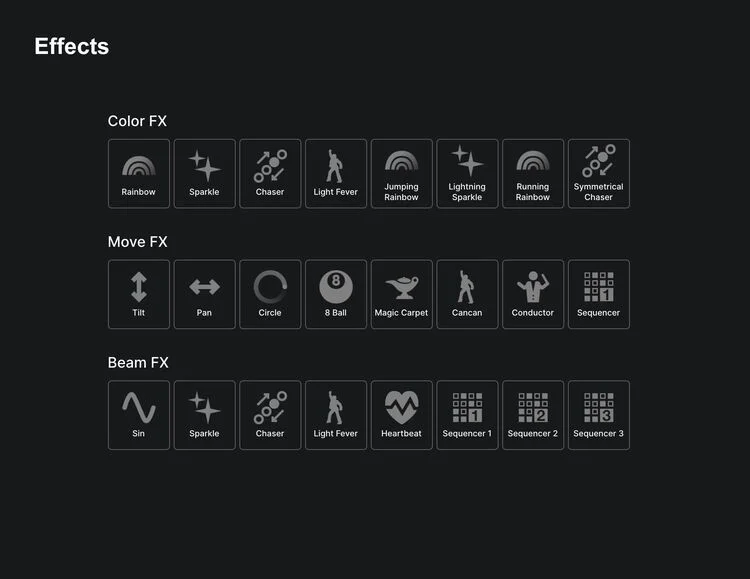

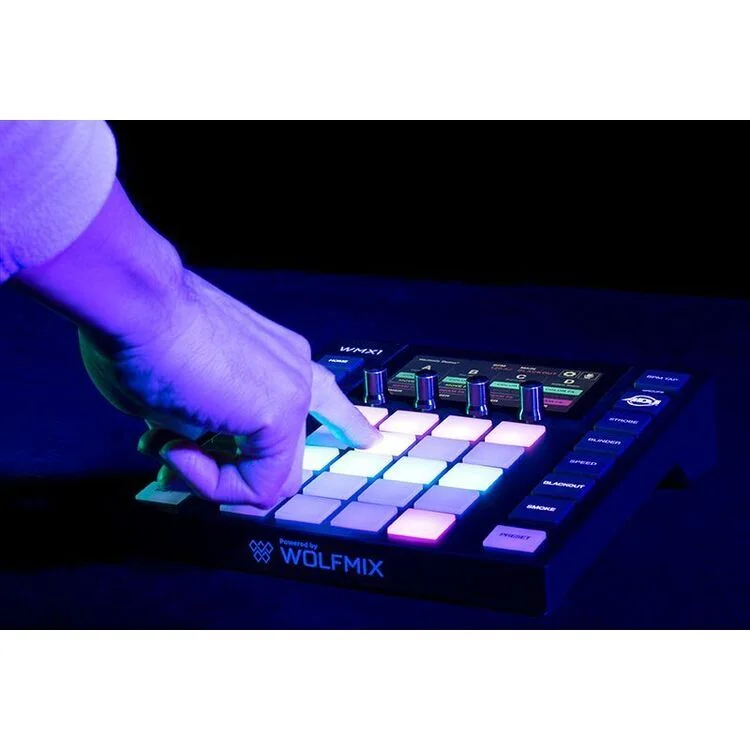

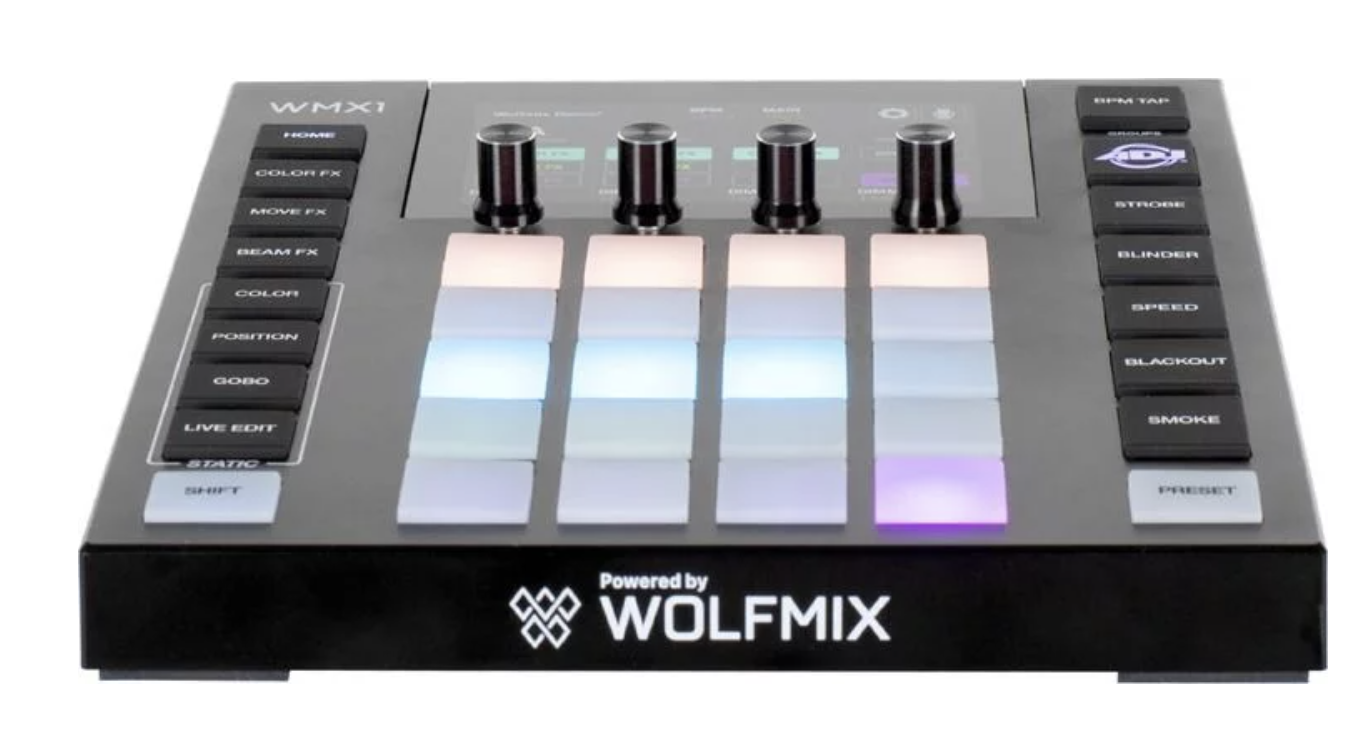

Once you’ve got it configured, the WMX1 Mk2 gives you independent control of up to eight groups of fixtures with 37 backlit silicone pads/buttons and four rotary encoders that let you trigger three different effects engines (Color, Move, and Beam) and tweak them separately for each group. You also have dedicated buttons for Strobe, Blinder, Speed, Blackout, and Smoke.

Tour-tough and ready to wow

Notwithstanding its light weight (just 2.36 pounds) and compact footprint (7.68 x 8.66 x 2.44 inches), the WMX1 MK2 is built like a tank with a durable ABS shell, a powder coated steel base plate, and a reinforced back plate. Under the turret is a powerful 220MHz ARM-core CPU with 8MB of RAM plus 16MB of flash memory, which allows you to create complex, layered effects that run independently across multiple groups — all in real time. Used to be, you needed a computer for that kind of firepower. No more, thanks to the WMX1 MK2. Just grab it and go! Get ready to treat your audiences to high-impact light shows with the ADJ WMX1 MK2 lighting controller.
