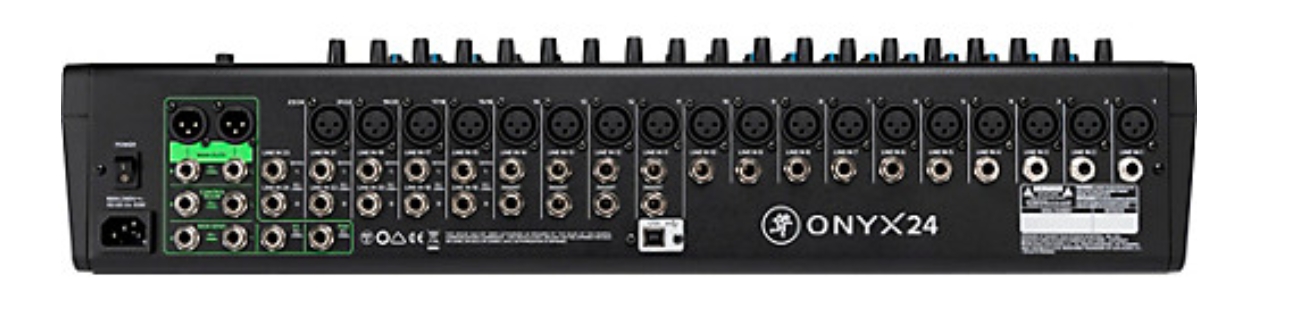

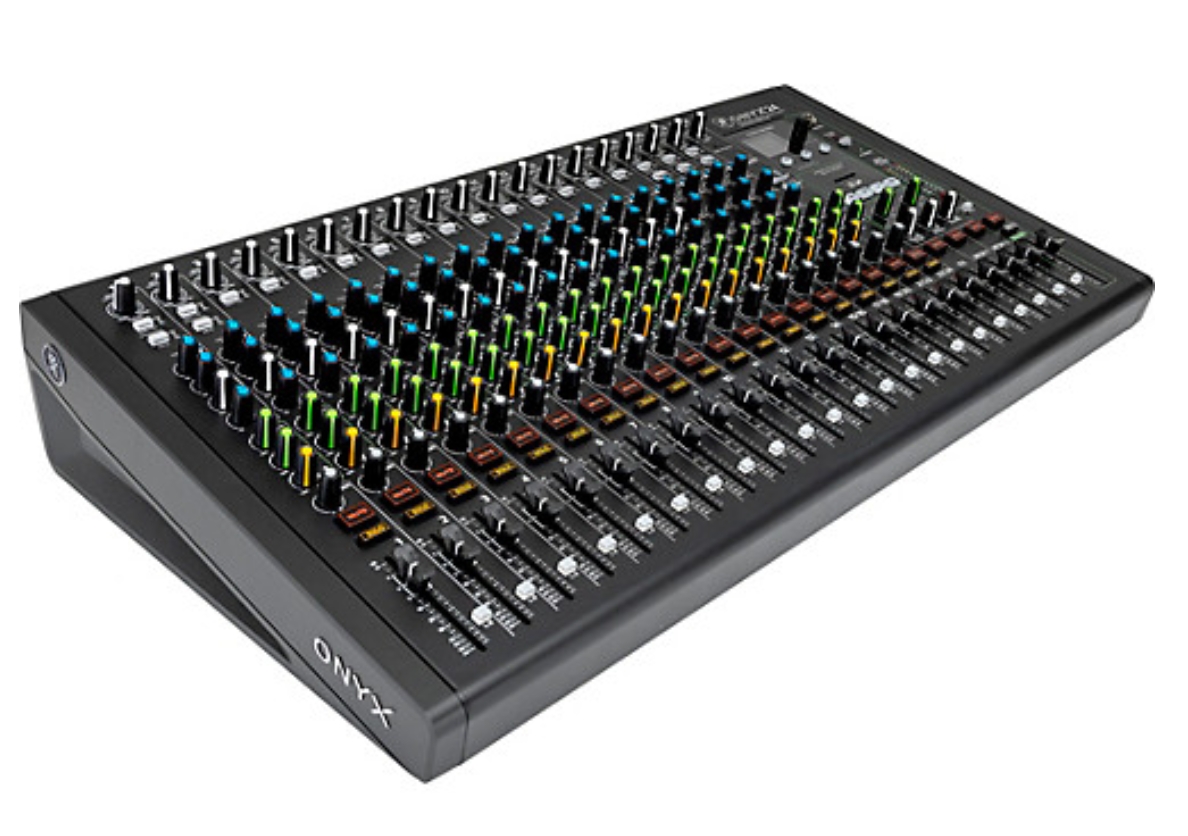

Mackie Onyx24 24-channel Analog Mixer with Multi-track USB

The Mackie Onyx24 24-Channel Premium Analog Mixer with USB is the ultimate compact solution for live audio, home recording, and content creation. 24-Bit / 96kHz multitrack recording, award-winning, high-gain Onyx mic preamps, and an end-to-end ultra-low-noise design deliver the sound quality professionals demand. Packed with features including powerful DSP effects, British-style Perkins EQ, full-color display, and integrated recording and playback from an SD card. The Onyx24 Premium Analog Mixer gives you the power you need to capture your best performance with pristine fidelity at home or on the go.
Features
Classic Sound, Modern Performance

18 award-winning Onyx mic preamps provide up to 60dB of gain
Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
Analog/USB channel strips with flexible routing
Legendary Perkins “British style” EQ with sweepable midrange offers classic sounds of the 60’s and 70’s
Robust digital effect engine, including user-customizable reverbs, delays, and more, with a dedicated FX EQ

Record and Playback via SD Card or USB

High-resolution 24x4 96kHz / 24-bit multi-track recording to Mac/PC via USB
Direct to SD card stereo recording and playback
Channel-assignable 4-track USB return (2 stereo pairs)
Send your Main Mix to USB via a dedicated switch

Studio Command-Powerful and Intuitive Full-Color Display and Single-Knob Interface

Easy navigation of FX parameters, onboard SD recording and playback
Visually browse files on the SD card via the built-in display
Dedicated physical buttons for Previous, Next, Record, and Play/Pause
Store up to 6 user FX presets for easy recall

Professional High-Resolution FX Processor

Utilize built-in effects for live performances, streams, and beyond
Reverb, delay, chorus, and more
Dial in the perfect sound with adjustable parameters and dedicated EQ
Built-in effects presets provide that finishing touch out of the box

Bluetooth Streaming–Go Wireless

Pair your Bluetooth enabled device and stream audio directly to a channel on the mixer
Streamed audio can be routed to Aux Sends and the Main Mix

Powerful Mixing Toolkit

3-band Perkins EQ with On/Off hard bypass switch on all channels
Hi-Z switches allows direct connection of guitars, basses, and other instruments
100Hz low-cut filter and 48V phantom power on all mic channels
Stereo 1/8” input and Bluetooth streaming
Stereo line inputs
Aux/Monitor outputs with dedicated per-channel send control
Dedicated Control Room outputs
Headphone output with dedicated level control
L/R Assign switch per channel
12-segment stereo meters
Overload indicators on all channels
PFL/AFL channel solo
Footswitch input for FX Mute (footswitch not included)

Hit the Ground Running with Powerful Software and Plugins

Pro Tools First recording software and plugin bundle
Musician Collection for Pro Tools First, with 23 plugins like BBD Delay, Eleven Lite, 304E EQ, and 304C Compressor
Waveform OEM recording software and plugin bundle
DAW Essentials Bundle for Waveform OEM, with 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter

Rugged Chassis and Professional Design

Backlit Mute and Solo buttons provide a positive tactile feel and clear visual feedback
Sealed rotary encoder resists dust and grime
Built-Like-A-Tank heavy steel chassis
High-visibility, high-contrast controls
Rugged, QuickGrip side cheeks offer convenient mobility and protection

Onyx24 24-Channel Premium Analog Mixer with Multi-Track USB And Bluetooth Specifications:
Weight

21.5 lb / 9.7 kg

Dimensions

25.2 × 14 × 5.4in / 639 × 356 × 136 mm
