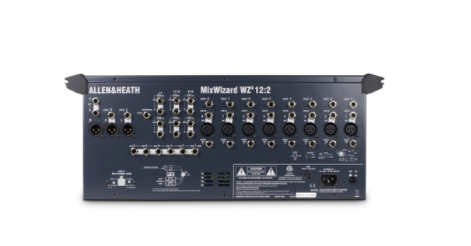

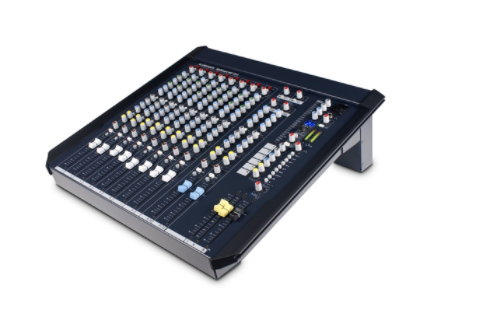

Allen & Heath MixWizard4 12:2 Mixer

Allen & Heath MixWizard4 12:2 Mixer Features

• 19? Rack mountable
• 8 Mic/line inputs with balanced XLR/TRS jack, insert and direct output
• 100mm Faders
• 2 Dual Stereo inputs with separate gain and ‘ON’ switches allowing inputs to be selected independently or mixed together
• 4 Band EQ with 2 swept mids
• 6 Aux sends – 2x pre fade / 2x switched / 2x post fade (Can be reconfigured with internal jumpers?)
• 2 Stereo returns
• Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
• Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
• Tri-colour, 12 segment bargraph metering
• Twin FX engines with 20 studio quality FX presets
• +48V Phantom Power
• Signal and Peak LEDs
• Lamp socket
• USB multitrack recording option
• Footswitch connector (mutes/unmutes the ST1 FX Return)

Allen & Heath MixWizard4 12:2 Mixer Specifications

• Performance:
  • Maximum Output Level:
    • XLR: +26dBu into 600 Ohms Max Load
    • Jack: +21dBu into 2k Ohm Max Load
  • Internal Headroom:
    • Channels: +21dB
    • Mix: +23dB
  • Meters: 3 Colour LED, Quasi Peak Response
  • Sensitivity: 0VU = +4dBu at XLR Output
  • Master Meters: 12 Segment -30 to +16dB
  • Channel Meters: 2 Segment -12, +16dB (5dB Before Clip)
  • Frequency Response: 10Hz to 30kHz +/-0.5dB
  • THD+N at +10dBu 1kHz:
    • Channel to Mix Out: < 0.004%
  • Crosstalk at 1kHz:
    • Fader Shutoff: >90dB
    • Channel Mute: >90dB
    • Inter Channel: >90dB
  • Noise, RMS 22Hz to 22kHz:
    • Mic EIN: -127dB
    • Residual Output Noise: < -95dBu (-99dB S/N)
    • LR Unity Fader Mix Noise: < -83dBu (-87dB S/N)
  • Channel HPF: 12dB/Octave Below 80Hz
  • Mono EQ:
    • HF: Shelving, +/-15dB, 12kHz
    • HM: Peak/Dip, +/-15dB, 500Hz to 15kHz, Q=1.8
    • LM: Peak/Dip, +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF: Shelving, +/-15dB, 80Hz
  • Stereo EQ:
    • HF: Shelving, +/-15dB, 12kHz
    • HM: Peak/Dip, +/-15dB, 2.5kHz, Q=1.8
    • LM: Peak/Dip, +/-15dB, 250Hz, Q=1.8
    • LF: Shelving, +/-15dB, 80Hz
  • Power Requirements:
    • Supply: 100-240V, 50/60Hz Auto Sensing, IEC Input
    • Power Consumption: 45W Max
    • Mains Fuse: T630mA L 20mm
• Mechanical:
  • Free Standing Dimensions: (W x D x H) 507mm (20”) x 530mm (20.9”) x 194mm (7.7”)
  • Rack Mounted Dimensions: (W x D x H) 483mm (19”) x 122mm (4.8”) x 444mm (17.5”), 10U Underside Connectors
  • Rack Mounted Dimensions: (W x D x H) 483mm (19”) x 193mm (7.6”) x 497mm (19.6”), 11.2U Rear Connectors
  • Weight: Unpacked; 11kg (24lbs), Packed; 14kg (31lbs)
