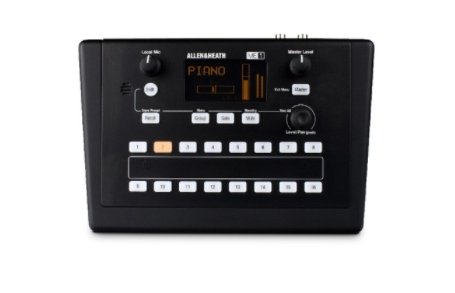

Allen & Heath ME-1 Personal Monitor Mixer

Allen & Heath ME-1 Personal Monitor Mixer Features

• 40 Inputs with level and pan control
• Dimmable OLED screen
• 16 Assignable keys
• 3.5mm and 1/4” headphone outputs
• Master 3 band EQ and Limiter
• Solo and Mute keys
• Aux Input for MP3 players, click tracks etc
• Built-in signal generator
• Mic stand bracket and headphone hanger included
• Mains or PoE powered
• Daisy chain or use standard PoE Ethernet hubs

Allen & Heath ME-1 Personal Monitor Mixer Specifications

• Frequency Response: 10Hz to 20kHz (+0/-1dB)
• AD/DA Conversion: 24-Bit Delta / Sigma, 48kHz
• Residual Output Noise: -95dBu
• PoE Requirements: 802.3af (15.4W at Source) or 802.at (25.5W at Source)
• Headphone Out: 300mW + 300mW into 100O Load, Max; +21dBu
• Mono Out: Nom 0dBu / Max +18dBu
• Aux Input: Nom -8dBu / Max +10dBu / Impedance >10kO
• External PSU: In; 100-240V AC , 50/60Hz / Out; 12V DC, 1.25A
• PoE Requirement: 10W (Requires 15W from PoE Hub)
• Dimensions (W x D x H): 230mm x 160mm x 70mm (9” x 6.3” x 2.7”)
• Weight: 1.1 kg (2.4 lbs)
