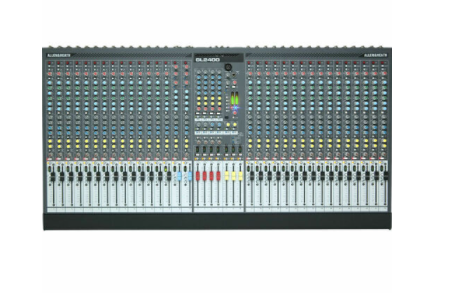

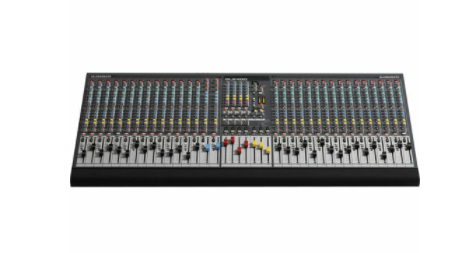

Allen & Heath GL2400-32 32-Channel Console

Allen & Heath GL2400-32 32-Channel Console Features

• 32 Channels frame
• LR and M main outputs
• 4 Audio groups with pan control
• 6 Auxiliary sends with per-channel pre/post fader switching
• 2 Stereo channels, each with mic and dual stereo line inputs
• 7×4 Matrix
• Proper dual functionality for FoH and/or Monitor mixing
• M can be configured as LR sum, Wedge, or Aux-Fed Sub or C master
• Recording capable with channel direct outputs
• Matrix external inputs with level trims and common input capability
• Stereo channel line inputs can be independently routed to LR
• Stereo channel mic input breakpoints for cross patching into matrix
• Responsive 4 band, 2 sweep EQ
• 100Hz channel high pass filters
• Individual phantom power and polarity switching
• Dedicated channel, master and stereo monitor meters
• Internal jumper plugs for pre/post-EQ aux, direct out and other options
• Mutes, meters and AFL on all fader masters
• Assignable talkback
• 1kHz Oscillator and pink noise generator
• 2-Track monitoring and replay to LR
• Headphones and local monitor outputs
• Electronically balanced XLR outputs with +26dBu drive capability
• Preamp 74dB range with +34dBu input capability for mic or line
• Ultra low noise mix head amp design
• Internal power supply with socket for MPS12 backup supply
• 100mm Dust protected faders
• Metal jacks, gold-plated XLRs, sealed pots and switches
• Individual circuit card assembly with nutted pots
• Sys-Link V2 console input/output linking option
• 4-Pin XLR lamp sockets

Allen & Heath GL2400-32 32-Channel Console Specifications

• Performance:
  • Maximum Input Level:
    • Mic: +34dBu (Including Pad)
    • CH Line: +34dBu
    • Other Line: +20dBu
  • Maximum Output Level:
    • XLR: +26dBu
    • Jack: +20dBu
  • Internal Headroom:
    • Channels: +20dB
    • Mix: +22dB
  • Meters: 3 Colour LED, Quasi Peak Response
  • Sensitivity: 0VU = +4dBu at XLR Output
  • Master Meters: 12 Segment -30 to +16dB
  • Channel Meters: 4 Segment -12,0,+6+16dB (5dB Before Clip)
  • Frequency Response: 20Hz to 50kHz +/-0.5dB
  • Mic CMRR at 1kHz: > 80dB Typical
  • THD+n at +14dBu 1kHz: Channel to Mix Out < 0.003%
  • Crosstalk at 1kHz:
    • Fader Shutoff: >90dB
    • Mute Shutoff: >90dB
    • Inter Channel: >90dB
  • Noise, rms 22Hz to 22kHz:
    • Mic EIN: -128dB
    • Residual Output Noise: < -96dBu (-100dB S/N)
    • LR Mix Noise 16 Routed: < -86dBu (-90dB S/N)
    • Group Mix Noise 16 Routed: < -86dBu (-90dB S/N)
    • Aux Mix Noise 16 Routed: < -92dBu (-90dB S/N)
    • Mix Noise 16 Line 0dB Gain: < -86dB S/N
  • Channel HPF: 12dB/Octave Below 100Hz
  • Mono EQ:
    • HF: Shelving +/-15dB, 12kHz
    • HM: Peak/Dip +/-15dB, 500Hz to 15kHz, Q=1.8
    • LM: Peak/Dip +/-15dB, 35Hz to 1kHz, Q=1.8
    • LF: Shelving +/-15dB, 80Hz
  • Stereo EQ:
    • HF: Shelving +/-15dB, 12kHz
    • HM: Peak/Dip +/-15dB, 2.5kHz, Q=1.8
    • LM: Peak/Dip +/-15dB, 250Hz, Q=1.8
    • LF: Shelving +/-15dB, 80Hz
  • Power Supply: Internal Switched Mode, Auto Sensing, IEC Input, External Input for Optional MPS12 Backup Supply
• Connections:
  • Mono Channel:
    • XLR Balanced Pin 2 Hot: Sensitivity -60 to +14dBu
    • TRS Balanced, Tip Hot: Sensitivity -40 to +14dBu
    • Pad Out (Mic): 2k Ohm
    • Pad In (Mic or Line): >10k Ohm, -20dB Attenuation
    • Max Input Level: +34dBu
    • XLR Phantom Power: +48V, On/Off
  • Stereo Channel:
    • ST1,3 TRS Unbalanced: >10k Ohm, -16 to +20dBu
    • ST2,4 TRS Balanced: >10k Ohm, -16 to +20dBu
  • Talkback Mic:
    • XLR Balanced Pin 2 Hot: Sensitivity -50 to -10dBu
    • Phantom Power: Internal Jumper +48V
  • 2-Track Return:
    • TRS Unbalanced: >4k Ohm, -2dBu
  • 2-Track Send:
    • TRS Impedance Balanced:
  • Inserts:
    • Channel: TRS, Tip Send, Ring Return, 0dBu
    • Output: TRS, Tip Send, Ring Return, -2dBu
  • L, R, M Outputs:
    • XLR Balanced Pin 2 Hot:
  • Group (Aux) Out:
    • XLR Balanced Pin 2 Hot:
  • Aux 1-6 Output:
    • TRS Impedance Balanced:
    • Electronic Balance Option:
  • Direct Out:
    • TRS Impedance Balanced:
  • Matrix Out:
    • TRS Impedance Balanced:
    • Electronic Balance Option:
  • Headphones: TRS, Tip L, Ring R, 30 to 600 Ohm Headphones Recommended
  • Monitor Output: TRS Impedance Balanced:
  • Lamp: 4-Pin XLR, Max 12V 5W Lamp
• Mechanical:
  • Dimensions: (W x D x H) 1025mm (40.4”) x 560mm (22”) x 150mm (5.9”)
  • Weight: 26.5kg (58.3lbs)
